Galvanized Steel Angel Lattice Telecom Towers 45m 4 Legs Wind Load 1.0kN/sqm

  • Galvanized Steel Angel Lattice Telecom Towers 45m 4 Legs Wind Load 1.0kN/sqm
  • Galvanized Steel Angel Lattice Telecom Towers 45m 4 Legs Wind Load 1.0kN/sqm
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number GX-5207
Minimum Order Quantity 1 set
Price USD1998-19998 per set
Packaging Details plastic bubble sheets
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 1000 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 45m 4 Legs Tower Galvanized Steel Angel Lattice Telecommunication Tower Material Weldable Structural Angle Steel Plates Or Pipes
Surface Finish Hot Dip Galvanization And Power Coating Height 30m To 50m Or Customized Height
Material Grade GB Q235, Q345, Q355 Or Specified Grade Yield Strength 235~355MPa
Galvanized Thickness 65~85 Microns Design 1-4 Platforms With Mounting Brackets
Wind Load 0.36-1.0kN/sqm
High Light

Galvanized Steel Angel Lattice Telecom Towers

,

45m Lattice Telecom Towers

,

4 Legs Lattice Telecom Towers
Leave a Message
Product Description

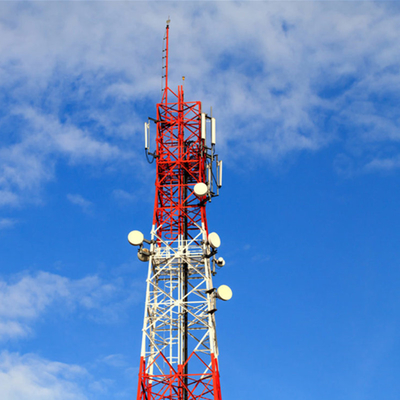

45m 4 Legs Tower Galvanized Steel Angel Lattice Telecommunication Tower



4 legged self-support steel lattice tower is generally made of angular steel plates and flat steel plates. The 4-leg lattice tower is generally divided into several sections and the sections are connected by flat connecting plates with bolts and nuts. Each tower section is made of angle steelt plates and flat plates. All the steel plates are prefabricated with cutout, holes and hot dip galvanization.



Application: telecom antenna WIFI microwave transmmision.



Specifications of 4 Legged Angular Steel Lattice Tower



Material Angle steel plates, flat steel plate, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.



Galvanized Steel Angel Lattice Telecom Towers 45m 4 Legs Wind Load 1.0kN/sqm 0



FAQ:



1.Q: Can you do OEM for me? A: We accept all OEM orders,just contact us and give me your design,we will offer you a reasonable price ASAP.



2. Q: Can you do design for me? A: We have experienced engineers,we can design for you,Just give me your ideas.



3. Q: When can I get the quotation A: We usually quote you within 24 hours after we get your inquiry.If you are very urgent to get the quotation,please call us or tell us in mail,so that we could regard your inquiry priority.



4. Q: How about the delivery date? A: For normal items delivery time is 25-35 days



5. Q: Which payment way is workable? A: T/T, Irrevocable L/C at sight etc.
