GSM Mircrowave Radio Steel Tower For Signal WIFI Telecommunication Antenna
Place of Origin | Guangzhou, China |
---|---|
Brand Name | GUANGXIN |
Certification | ISO9001 |
Model Number | GX-3499 |
Minimum Order Quantity | 1 set |
Price | USD1998-20000 per set |
Packaging Details | plastic bubble sheets or cloth package by bundle |
Delivery Time | 20-30 days |
Payment Terms | T/T, L/C, Western Union, MoneyGram |
Supply Ability | 500 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | GSM Mircrowave Radio Steel Tower For Signal WIFI Telecommunication Antenna | Material | Weldable Structural Angle Steel Plates Or Pipes |
---|---|---|---|
Surface Finish | Hot-dip Galvanized Or Painting | Height | 20m To 80m Height |
Material Grade | GB Q235, Q345, Q355 Or Specified Grade | Yield Strength | 235~355MPa |
Galvanized Thickness | 65~85 Microns | Design | Lattice Frame Constructure |
Wind Load | 0.36-1.0kN/sqm | Color | Grey Color Coating |
GSM Mircrowave Radio Steel Tower For Signal WIFI Telecommunication Antenna
Specification:
1. Material: Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm²
Q235B/A36, Minimum Yield Strength ≥ 235 N/mm²
As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400, or any other standard by client required.
2. Tower Type: Steel Tube, Angle Steel, Lattice Mast, Self-supporting
3. Tower Style: Mono Pole Tower, Three Legs Tower, Four Legs Tower
4. Height: Below 100 meter, customized.
5. Wind Pressure: 0.35-1 KN/m2
6. Connection: Flanges, Inserting, Connecting Plate & Bolt
7. Surface Treatment: Hot Dipped Galvanized
8. Zinc Coating: 65μ-85μ
9. Supply Capacity: 1500 MT/Month
10. Color: Galvanized, or customized
11. Usage: GSM, RRU, CDMA, Micro Wave, Radio etc.
12. Certification: ISO9001:2008, ISO14001:2004, OHSAS18001: 2007, SGS, MA
Feature:
1, Design layout and drawing, set up specifications and sizes.
2, Buy row seamless steel pipes or flat steel plates and folding and welding them to be tubular pipes as well as galvanized steel bolts, nuts, washers and springs.
3, Measure and cut out sizes and holes.
4, Weld necessary parts (such as footing plates, connecting flanges and gussets, antenna mounts, lightning rod, ladder etc.)
5, Polish burrs and welding scars to make all members good surface.
6, Assemble tower sections according to drawings, make sure sizes and connecting parts are correct.
7, Hot dip galvanization: clean surface corrosion and oil with acid or other chemicals-->clean with water-->dip in cosolvents-->dry-->dip in hot zinc pool for galvanization-->cooling and curing-->clean-->dry
8, Check quality and start packing.

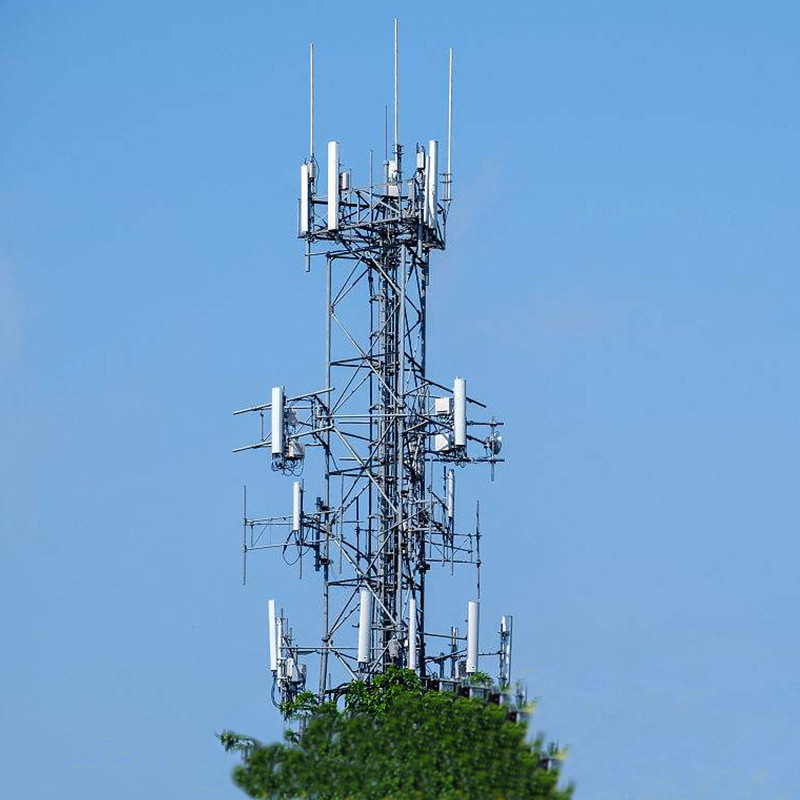

Telecom steel tower is generally made of angular steel plates and flat steel plates. The 4-leg lattice tower is generally divided into several sections and the sections are connected by flat connecting plates with bolts and nuts. Each tower section is made of angle steelt plates and flat plates. All the steel plates are prefabricated with cutout, holes and hot dip galvanization.
Specifications of Tubular Telecommunication Steel Tower
Material | Angle steel plates, flat steel plate, bolts and nuts |
Steel Type | Weldable low carbon structural steel |
Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
Yield Strength | Fy≥235MPa |
Tensile Strength | Fu≥400MPa |
Elongation | σ≥20% |
Surface Finish | Hot dip galvanization |
Galvanized layer | T≥65μm |
Height | 20m to 100m, customized to requests |
Design | 4 legs self-supporting or free standing lattice tower |
Structure | 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices. |
Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
Fixing/Fastening | Bolts and nuts, connecting plates |
Configuration | Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc. |
Wind Load | 0.35-1.0kN/sqm |
Lifespan | 20-50 years |
Warranty | 3 years |
Applications | GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations. |
