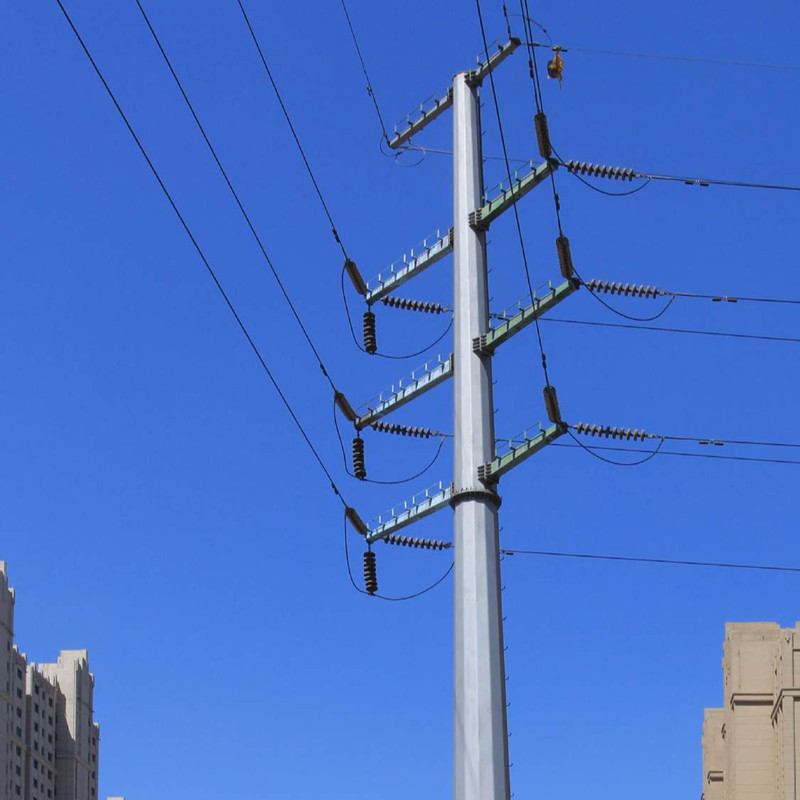

Steel Pipes Electric Power Towers Transmission Line Steel Pole Tower

  • Steel Pipes Electric Power Towers Transmission Line Steel Pole Tower
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number GX-5505
Minimum Order Quantity 1 set
Price USD998-1998 per set
Packaging Details wooden pallet and plastic bubble sheets
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name High Quality Steel Pipes Electric Power Towers Transmission Line Steel Pole Tower Material Weldable Structural Angle Steel Plates Or Pipes
Surface Finish Hot Dip Galvanization Height 30m-50m
Wind Load 0.35-0.85kN/sqm Lifespan 20-50 Years
Warranty 10 Years Applications Electricity Power Station
High Light

Steel Pipes Electric Power Towers

,

Transmission Line Electric Power Towers
Leave a Message
Product Description

High Quality Steel Pipes Electric Power Towers Transmission Line Steel Pole Tower



Galvanized Steel Tower And Tubular Pole For Electricity Power Cable Transmission And Distribution



The sections of tubular steel lattice tower completely made from steel pipes are generally welded in factory by 5m or longer lattice parts, each section is welded with flange plates for connection among tower sections. When you install the tower, you need to construct foundations with anchoring bolts frame (someone calls it steel cage frame) and concrete. The tower is fixed to foundations via flange plates with bolts and nuts. This kind of tubular steel lattice tower is easier for installation and very solid and strong, but the cost is a little higher and more costly for transportation because all the tower sections are welded in big parts which take more room in the truck or container.



1, Galvanized Steel communication towers and poles

2, Power transmission and distribution steel towers and poles

3, Street, roadway, highway, stadium, traffic and utilities lighting poles

4, Multi-functional smart city light poles

5, High mast steel poles and towers for lighting, communication and landscaping.



Specifications



Material Angle steel plates, flat steel plate, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure Multiple platforms and brackets for mounting power cables or wires, customized to requests.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.



Guangzhou Guangxin Telecommunication Equipment Co.,Ltd. Is a large scale manufacturer of telecommunications and traffic facilities, including telecommunicationi monopoles and towers, street light poles and towers, power gride&electricity wire towers, lighting protection poles, artificial bionic tree for camouflaged telecommunication, CCTV camera poles and high masts, guideboards poles, billboards and led display gantry frames, ETC toll gate frames and other steelworks. Many projects we supplies have won parter reputation, awards and approvals from the users and customers. We are supplying the steelworks for 5G infrastructures, smart city and safe traffic
facilities, civil contruction and developing many other fields.

We have our own professionial engineer, designer and skilled workes. And our production line is equipped with CNC, laser
cutting machine, welding machine, shaping machine and test instrument etc. ODM service is welcomed.
