Q235 Customized Galvanized Steel Frame Structure for Traffic Sign

Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number GIS-018
Minimum Order Quantity 1 set
Price USD2.18 per kilogram
Packaging Details plastic sheets
Delivery Time 20-25 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 1000 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Galvanized Steel Traffic Sign Structure And Highway Gantry Frame Material Steel Channel Beams And Plates Or Pipes
Grade Q235B, Q235B Or Specified Steel Structure Customized To Customer's Designs And Drawings
Dimensions Customized To Customer's Specifications And Drawings Surface Finish Hot Dip Galvanized Or Painting
Fabrication Prefabricated
High Light

Q235 Steel Frame Structure

,

Q345 Steel Frame Structure

,

Q235 metal frame structure

Leave a Message
Product Description

Q235 Customized Galvanized Steel Frame Structure For Traffic Sign



Galvanized Steel Traffic Sign Structure And Highway Gantry Frame Tower





Founded in 2009, Guangzhou Guangxin Communication Equipment Co., Ltd. is professional manufacturer of steel structures and frames with Class 3 Engineering Contractor certification and ISO9001 Quality  management system certifications. We've been specializing in producing steel towers, poles and steel structures for more than 10 years by now. We can produce the communication towers and poles, light poles and towers, artificial tree camouflaged towers, traffic management gantry frames, billboard and LED display gantry frames and poles and other steel structures according to customer's designs, drawings, specifications and requirements.





                             Galvanized Steel traffic sign indication boards gantry frame



Specifications



Material Tubular steel pipes, angular steel plates, flat steel plate or solid steel bars and rods, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 2m to 120m, customized to requests
Design structural steel gantry frame
Structure free standing structure
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting flanges
Configuration Foundations, anchoring bolts, gantry sections, bolts and nuts
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications traffic signal control and monitor facilities, highway/roadway billboards,signs, LED display, traffic lights, CCTV cameras etc.



Q235 Customized Galvanized Steel Frame Structure for Traffic Sign 0

     Galvanized steel Articifial Palm Tree Landscaing and Communication Cell Tower


Q235 Customized Galvanized Steel Frame Structure for Traffic Sign 1 Q235 Customized Galvanized Steel Frame Structure for Traffic Sign 2

    Traffic sign or guideboard pole                                Signage,billboard, LED display pole



All the steel structures are customized and prefabricated according to customer's designs, specifications and drawings.



Q235 Customized Galvanized Steel Frame Structure for Traffic Sign 3

Factory plant transmission rail steel structures

Q235 Customized Galvanized Steel Frame Structure for Traffic Sign 4

We're also producing steel frames for factory plants and building structures.





Galvanized Steel Highway Lattice Gantry Frames for traffic management facilities

Q235 Customized Galvanized Steel Frame Structure for Traffic Sign 5

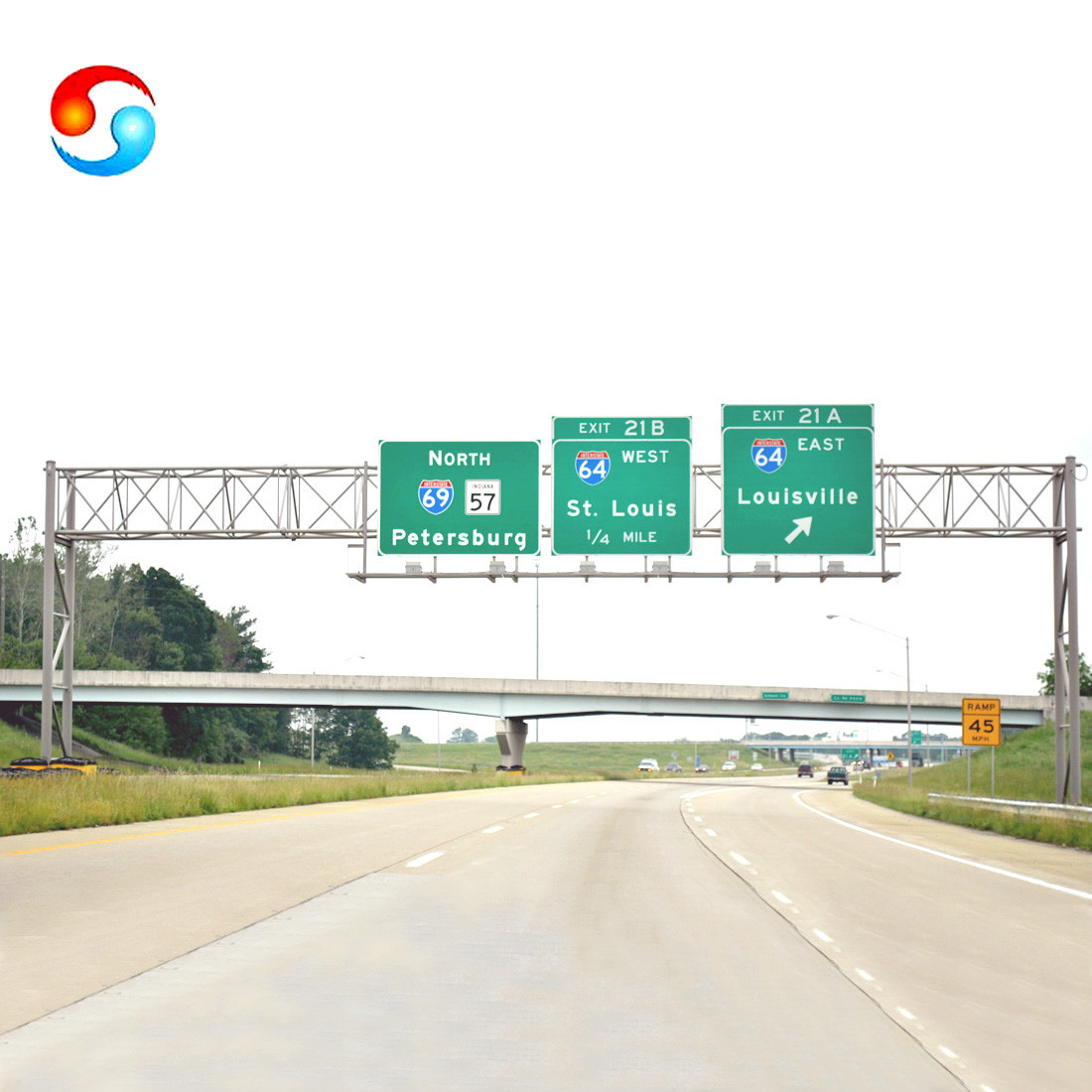

Highway Traffic sign and CCTV Camera management gantry structure
