120m Outdoor Billboard Galvanized Metal Steel Structure For Signage LED Display

  • 120m Outdoor Billboard Galvanized Metal Steel Structure For Signage LED Display
  • 120m Outdoor Billboard Galvanized Metal Steel Structure For Signage LED Display
  • 120m Outdoor Billboard Galvanized Metal Steel Structure For Signage LED Display
  • 120m Outdoor Billboard Galvanized Metal Steel Structure For Signage LED Display
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number GIS-009
Minimum Order Quantity 1 set
Price USD2.18 per kilogram
Packaging Details plastic sheets
Delivery Time 20-25 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 1000 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Galvanized Metal Steel Structure Material Steel Channel Beams And Plates Or Pipes
Grade Q235B, Q235B Or Specified Steel Structure Customized To Customer's Designs And Drawings
Dimensions Customized To Customer's Specifications And Drawings Surface Finish Hot Dip Galvanized Or Painting
Fabrication Prefabricated
High Light

120m Metal Steel Structure

,

ODM Metal Steel Structure

,

120m Galvanized Steel Structure
Leave a Message
Product Description

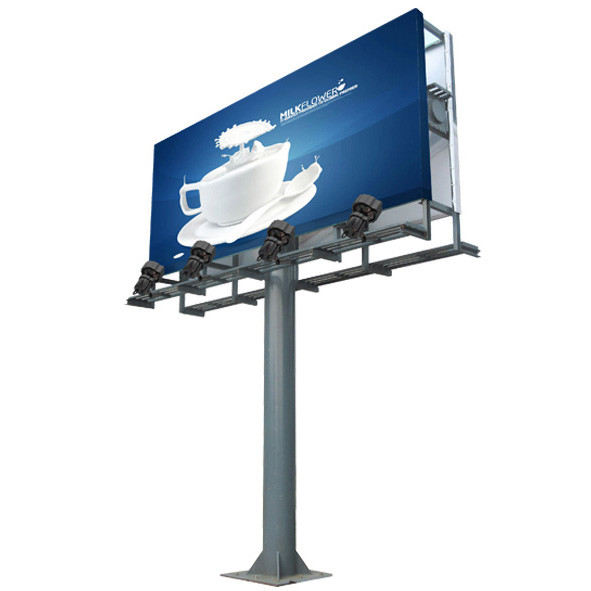

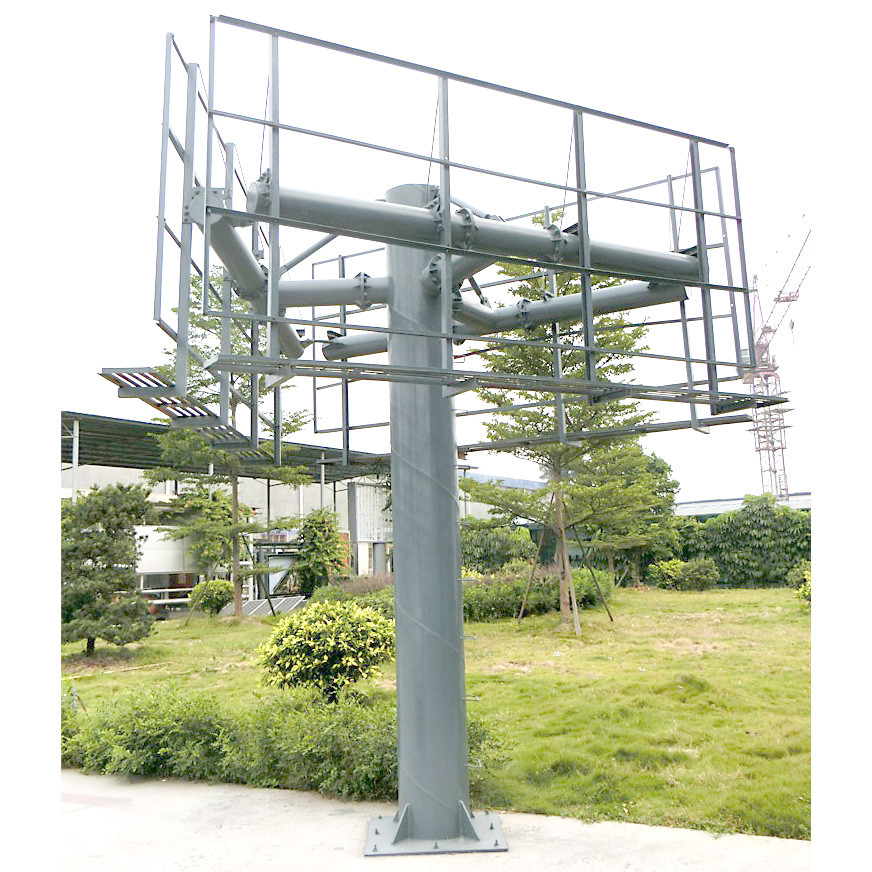

120m Outdoor Billboard Galvanized Metal Steel Structure For Signage LED Display

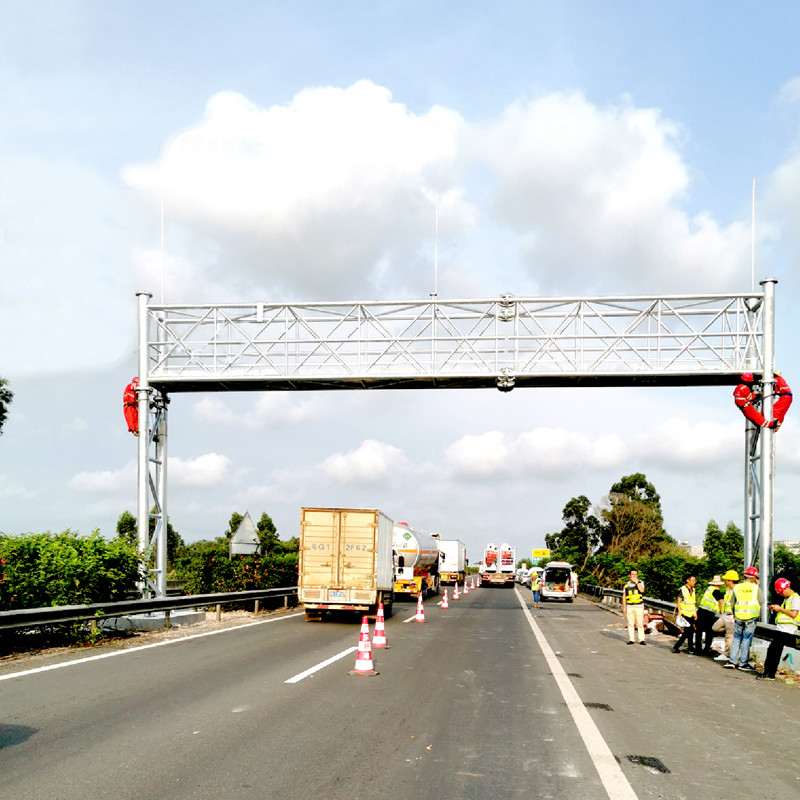

Galvanized Steel Outdoor Billboard Signage LED Display Gantry and Pole





Specifications



Material Tubular steel pipes, angular steel plates, flat steel plate or solid steel bars, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 2m to 120m, customized to requests
Design structural steel gantry frame
Structure free standing structure
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting flanges
Configuration Foundations, anchoring bolts, gantry sections, bolts and nuts
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications traffic signal control and monitor facilities, highway/roadway billboards,signs, LED display, traffic lights, CCTV cameras etc.
