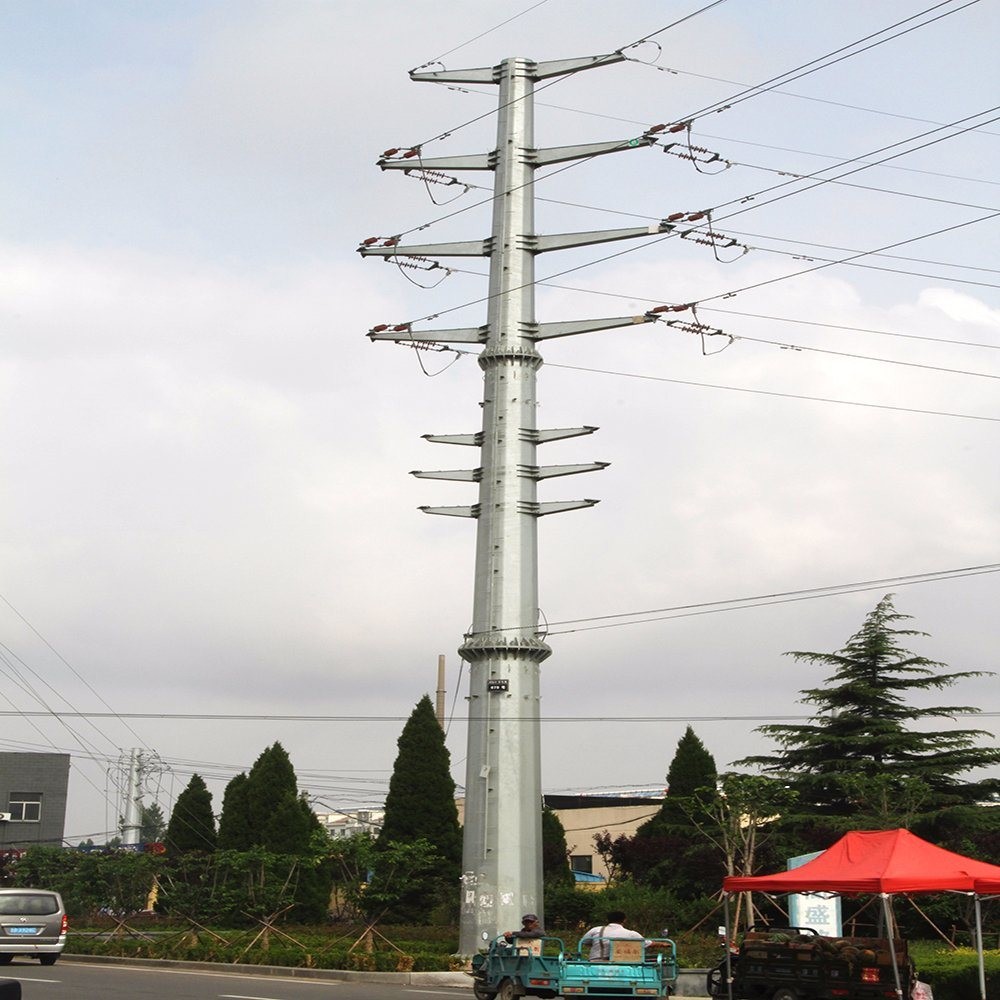

High Mast Tubular Transmission Steel Tower Q345 Metal Power Line Towers
| Place of Origin | Guangzhou, China |
|---|---|
| Brand Name | GUANGXIN |
| Certification | ISO9001 |
| Model Number | PTT-030 |
| Minimum Order Quantity | 1 set |
| Price | USD998-1998 per set |
| Packaging Details | wooden pallet and plastic bubble sheets |
| Delivery Time | 20-30 days |
| Payment Terms | T/T, L/C, Western Union, MoneyGram |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Metal Power Line Towers | Material | Q345 |
|---|---|---|---|
| Surface Finish | Hot Dip Galvanization | Height | 30-70m Or Customized Height |
| Wind Load | 0.35-0.85kN/sqm | Lifespan | 20-50 Years |
| Warranty | 3 Years | Applications | Power Transmission And Distribution Wires And Calbes Mounting |
| High Light | 35m Q345 Transmission Steel Tower,35m Transmission Steel Tower,35m Q345 Metal Power Line Towers |
||
Product Description
High Mast Tubular Transmission Steel Tower Q345 Metal Power Line Towers
High Mast Galvanized Tubular Steel Power Transmission And Distribution Tower And Pole
High Mast Hot Dip Galvanized Tubular Steel Power Grid Transmission and Distribution Tower
30-70m high mast Angle Steel Power Transmission and Distribution Tower
25-50m High Mast Tubular Steel Pole for power transmission and distribution
The sections of tubular steel lattice tower completely made from steel pipes are generally welded in factory by 5m or longer lattice parts, each section is welded with flange plates for connection among tower sections. When you install the tower, you need to construct foundations with anchoring bolts frame (someone calls it steel cage frame) and concrete. The tower is fixed to foundations via flange plates with bolts and nuts. This kind of tubular steel lattice tower is easier for installation and very solid and strong, but the cost is a little higher and more costly for transportation because all the tower sections are welded in big parts which take more room in the truck or container.
Established in 2009, Guangzhou Guangxin Communication Equipment Co., Ltd. is a professional manufacturer of steel towers and poles for communications, power transmission and distributiion, civil lighting and traffic signal control facilities as well as other infrastructures. Our products range includes:
Transmission Steel Tower Specifications
| Material | Steel pipes, Angle steel plates, flat steel plates, bolts and nuts Metal Power Line Towers |
| Steel Type | Weldable low carbon structural steel |
| Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
| Yield Strength | Fy≥235MPa |
| Tensile Strength | Fu≥400MPa |
| Elongation | σ≥20% |
| Surface Finish | Hot dip galvanization |
| Galvanized layer | T≥65μm |
| Height | 35m |
| Design | 4 legs self-supporting or free standing lattice tower |
| Structure | Multiple platforms and brackets for mounting power cables or wires, customized to requests. |
| Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
| Fixing/Fastening | Bolts and nuts, connecting plates |
| Configuration | Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc. |
| Wind Load | 0.35-1.0kN/sqm |
| Lifespan | 20-50 years |
| Warranty | 3 years |
| Applications | GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations. |
Self-supporting steel communication tower
4 legged angular lattice tower made up of galvanized steel flat plates and angle steel plates
FM radio transmission tower, GSM 3G, 4G, 5G communication microwave and antenna tower
25m to 80m high mast galvanized steel lattice tower for communication transmission stations
Custom designed and fabricated steel tower for worldwide communication applications.
All the steel towers are fabricated and delivered according to customer's approved drawings and specifications.
The steel tower is generally composed of foundations, tower body, rest and work platforms, antenna mountning brackets, ladder, lightning rod and earthing leads.
