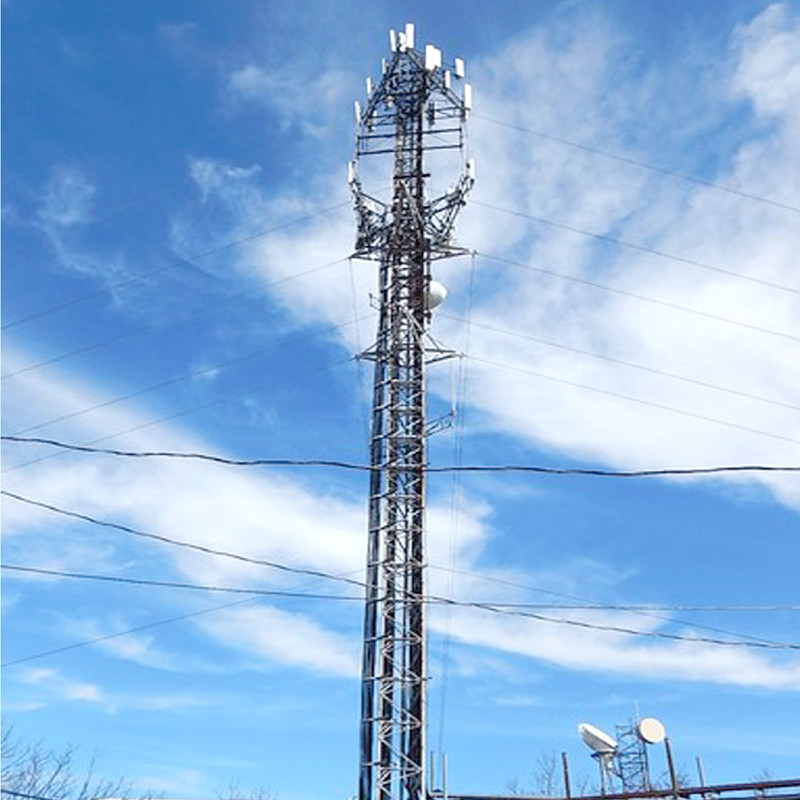

Transmission Distribution Electric Cable Tower 100m High Mast Angular Steel

  • Transmission Distribution Electric Cable Tower 100m High Mast Angular Steel
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number PTT-002
Minimum Order Quantity 1 set
Price USD998-1998 per set
Packaging Details wooden pallet and plastic bubble sheets
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Electric Cable Tower Material Weldable Structural Angle Steel Plates Or Pipes
Surface Finish Hot Dip Galvanization Height 20-100m Or Customized Height
Wind Load 0.35-0.85kN/sqm Lifespan 20-50 Years
Warranty 3 Years Lead Time 20-30 Days
Applications Power Transmission And Distribution Wires And Calbes Mounting
High Light

400MPa Electric Cable Tower

,

100m steel Electric Cable Tower

,

100m steel transmission tower
Leave a Message
Product Description

Transmission Distribution Electric Cable Tower 100m High Mast Angular Steel



Electricity Power Cable Transmission And Distribution Steel Tower And Pole



Hot Dip Galvanized Angle Steel Tower for Power Grid Transmission and Distribution

30-70m high mast Angular Steel Power Transmission and Distribution Tower

Established in 2009, Guangzhou Guangxin Communication Equipment Co., Ltd. is a professional manufacturer of steel towers and poles for communications, power transmission and distributiion, civil lighting and traffic signal control facilities as well as other infrastructures. Our products range includes:

1, Galvanized Steel communication towers and poles

2, Power transmission and distribution steel towers and poles

3, Street, roadway, highway, stadium, traffic and utilities lighting poles



Specifications



Material Angle steel plates, flat steel plate, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure Multiple platforms and brackets for mounting power cables or wires, customized to requests.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.



The rooftop steel tower is a small size tower for communication microcell station for enlarging the telecommunication signal coverage in the communities. It is typically designed as bipod or tripod tower mounted on the roof top, the height of rooftop towers is generally 5m to 15m. The rooftop tower is composed of a main pole which is made from tubular steel pipe and some angle steel or flat steel plates as bracings, connected by flanges, bolts and nuts. A foundation with anchoring bolts is also required for fixing the tower. Sometimes the rooftop tower is designed as wire guyed tower to make it with higher wind load.





Power Transmission and Distribution Pole



Transmission Distribution Electric Cable Tower 100m High Mast Angular Steel 0

4 legged Angular Steel Communication tower

High Mast Roadway, highway, street light pole
