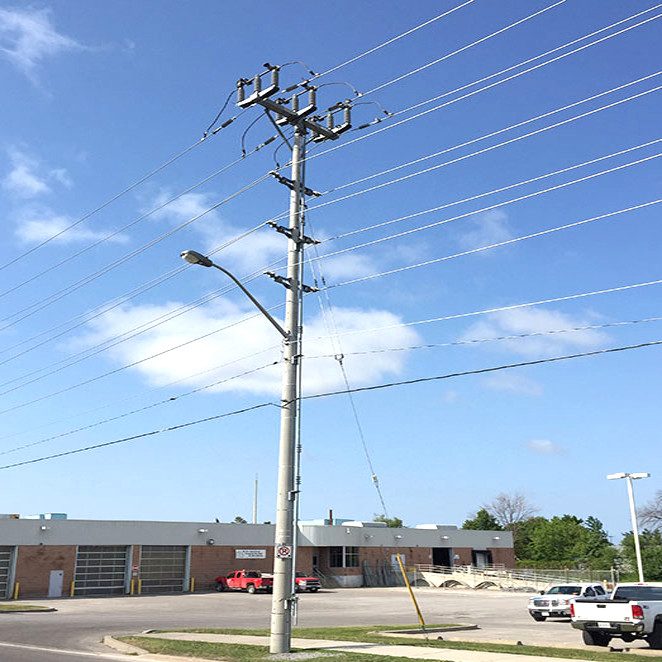

Tubular Steel Monopole Transmission Tower Design 20m Q235 Material

  • Tubular Steel Monopole Transmission Tower Design 20m Q235 Material
  • Tubular Steel Monopole Transmission Tower Design 20m Q235 Material
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number PTT-028
Minimum Order Quantity 1 set
Price USD998-1998 per set
Packaging Details wooden pallet and plastic bubble sheets
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Monopole Transmission Tower Material Weldable Structural Angle Steel Plates Or Pipes
Surface Finish Hot Dip Galvanization Height 20-100m Or Customized Height
Wind Load 0.35-0.85kN/sqm Lifespan 20-50 Years
Lead Time 20-30 Days Applications Power Transmission And Distribution Wires And Calbes Mounting
High Light

Q345 Q235 Monopole Transmission Tower

,

20m Q235 Monopole Transmission Tower

,

Q345 Q235 steel monopole tower
Leave a Message
Product Description

Tubular Steel Monopole Transmission Tower Design 20m Q235 Material



Galvanized Tubular Steel Power Transmission And Distribution Tower Or Pole



Established in 2009, Guangzhou Guangxin Communication Equipment Co., Ltd. is a professional manufacturer of steel towers and poles for communications, power transmission and distributiion, civil lighting and traffic signal control facilities as well as other infrastructures. Our products range includes



1, Galvanized Steel communication towers and poles

2, Power transmission and distribution steel towers and poles

3, Street, roadway, highway, stadium, traffic and utilities lighting poles

4, Multi-functional smart city light poles

5, High mast steel poles and towers for lighting, communication and landscaping.

6, Artificial trees for landscaping and comouflaged communication antenna towers

7, Signage, billboard, LED display and traffic signal management poles and gantry frames.

8, Other steel structures etc.



Material Steel pipes, Angle steel plates, flat steel plates, bolts and nuts steel monopole tower
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure Multiple platforms and brackets for mounting power cables or wires, customized to requests.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.



SST: Self-supporting Steel Tower



Self-supporting steel tower is the most popular tower for communication or power transmission and distribution applications. It’s generally designed for 3 legs or 4 legs, composed of galvanized tubular steel pipes and angular steel plates by welding and fastening with bolts and nuts. With height of 35m to 100m, the steel lattice towers are widely used for mounting communication macrocell stations and power transmission or distribution wires or cables.
