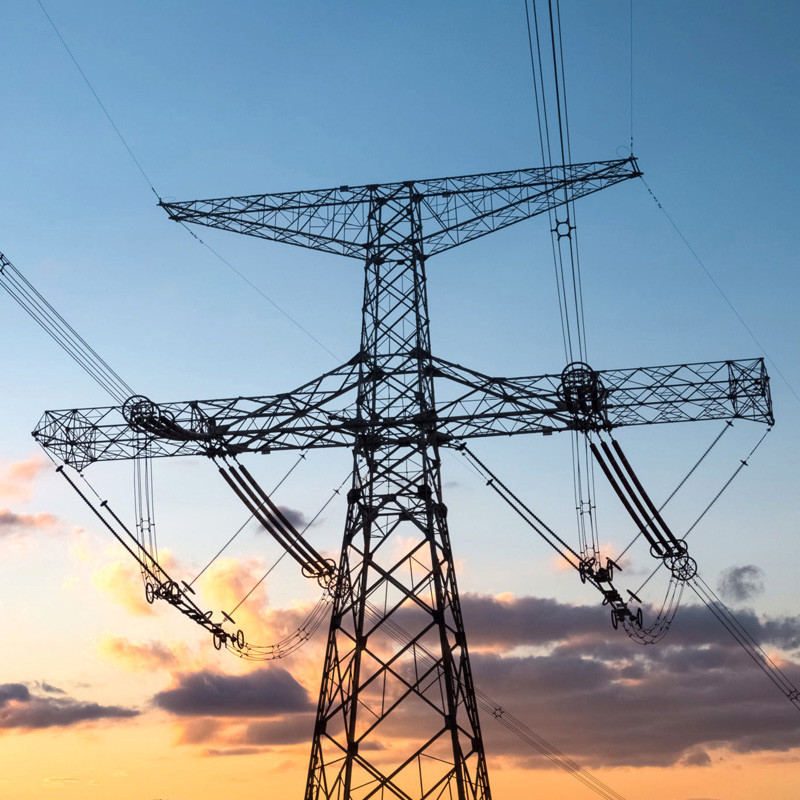

Hot Dip Galvanized Transmission Line Steel Towers 70m Weldable Structure

  • Hot Dip Galvanized Transmission Line Steel Towers 70m Weldable Structure
  • Hot Dip Galvanized Transmission Line Steel Towers 70m Weldable Structure
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number PTT-027
Minimum Order Quantity 1 set
Price USD1200-USD1350 per ton
Packaging Details wooden pallet and plastic bubble sheets
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Transmission Line Steel Towers Material Weldable Structural Angle Steel Plates Or Pipes
Surface Finish Hot Dip Galvanization Height 70m Or Customized Height
Wind Load 0.35-0.85kN/sqm Lifespan 20-50 Years
Warranty 3 Years Applications Distribution Wires And Calbes Mounting
High Light

400MPa Transmission Line Steel Towers

,

Q345 Transmission Line Steel Towers

,

400MPa steel transmission tower
Leave a Message
Product Description

Hot Dip Galvanized Transmission Line Steel Towers 70m Weldable Structure

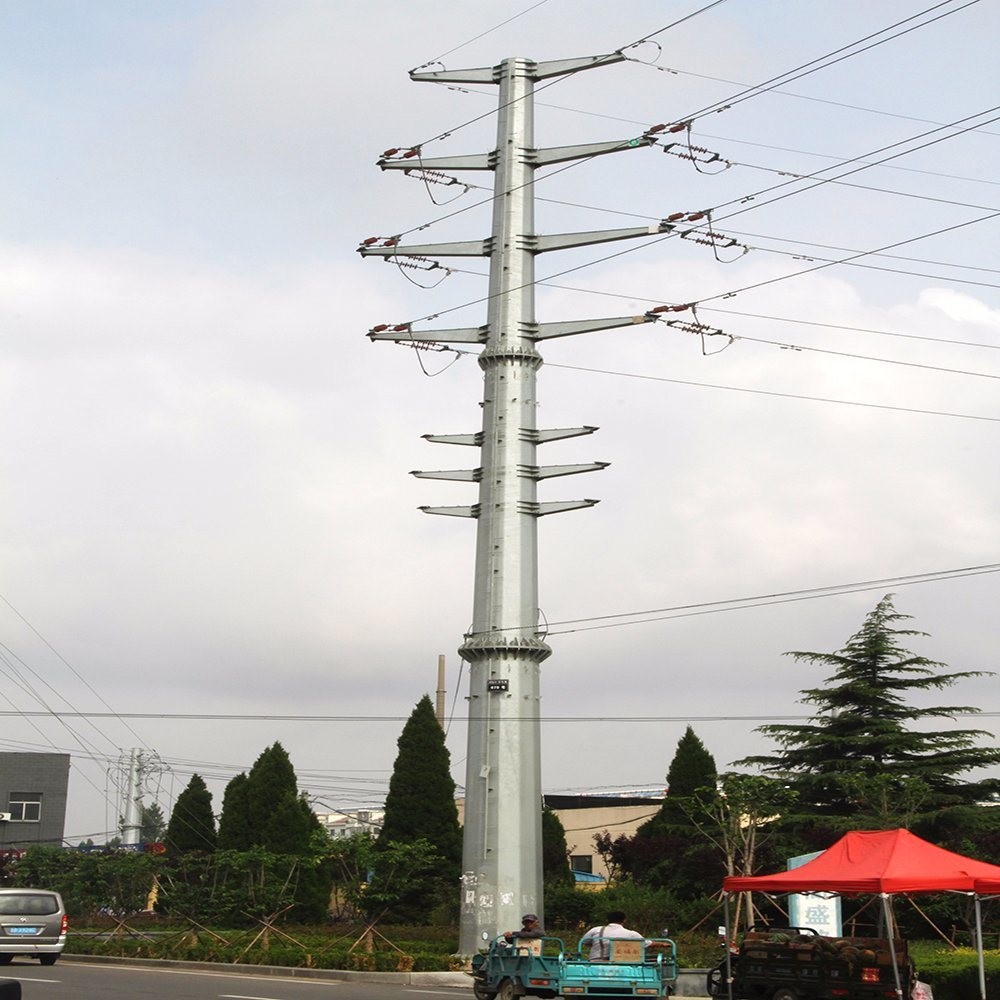

Steel Power Transmission and Distribution Tower or Pole


Transmission Line Steel Towers is generally made of tubular steel pipes as main structure (you can tell it as tower legs or body) and angular steel plates or pipes as sub-frame (horizontal and vertical bracings). The lattice tower is generally divided into several sections and the sections are connected by flange plates with bolts and nuts. Each tower section is made of tubular steel pipes and angular or flat steel plate, sometimes the tower is made of completely steel pipes or some bracings are made from solid steel bars.



1, Galvanized Steel communication towers and poles

2, Power transmission and distribution steel towers and poles

3, Street, roadway, highway, stadium, traffic and utilities lighting poles

4, Multi-functional smart city light poles



Material Steel pipes, Angle steel plates, flat steel plates, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure Multiple platforms and brackets for mounting power cables or wires, customized to requests.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.



SST: Self-supporting Steel Tower



Self-supporting steel tower is the most popular tower for communication or power transmission and distribution applications. It’s generally designed for 3 legs or 4 legs, composed of galvanized tubular steel pipes and angular steel plates by welding and fastening with bolts and nuts. With height of 35m to 100m, the steel lattice towers are widely used for mounting communication macrocell stations and power transmission or distribution wires or cables.



What’s your payment terms?
T/T or irrevocable documentary L/C is accepted for us. The general payment arrangement is 30% down payment before production and full payment before shipping by T/T, or L/C issued before production.
Can you guarantee the quality?
Yes.
Where are you shipping?
We usually ship from any port of Guangzhou or Shenzhen, other ports in other cities are also available if required.
