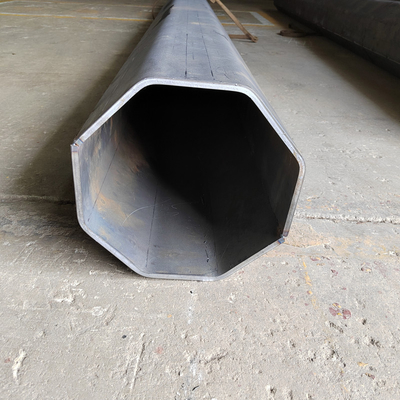

BS4360 High Mast Octagonal Light Pole With LED Flood Lighting

  • BS4360 High Mast Octagonal Light Pole With LED Flood Lighting
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number GX-1330
Minimum Order Quantity 100pcs
Price USD40-80 per piece
Packaging Details air bubble sheet package
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 2000 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Flood Light Pole / Flood Light Post Shape Octagonal Tapered Conical
Welding Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) Galvanizing Hot Dip Galvanization With Thickness Of 80-100µm Average
Surface Finish Hot Dip Galvanization Plus Powder Coating(optional) Ground Mounted The Length Buried Underground As Per Customers Requirement
Ice Coating 5mm-10mm(different In Different Regions) Work Life More Than 10years
Thickness 3mm To 15mm, Depending On Height Of Pole
High Light

High Mast Octagonal Light Pole

,

BS4360 Octagonal Light Pole

,

Octagonal Light Pole
Leave a Message
Product Description

High Mast Octagonal Light Pole with LED Flood Lighting





Specification of Octagonal Light Pole:



Descriptions Octagonal Steel Pole for Electric Power Transmission, CCTV Camera, LED light
Material Low carbon weldable structural steel
Grade GB Q235, Q345, BS4360, ASTM A36 etc.
Yield Strength 235-355MPa
Height m to 12m or other specified height
Thickness 4mm to 15mm, depending on height of pole.
Pole Shape Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc.
Diameter or Dimensions Subject to height of pole and required mechanical properties.
Design Single, dual or multiple straight or curved arms and brackets
Surface Finish Hot dip galvanization plus powder or PVDF coating (optional)
Galvanization 65-100 Microns
Coating 35-80 Microns
Color Silver, grey, black, white, blue, yellow etc.
Applications Roadways, streets, highways, stadiums, public sqaures, airports, railway stations, communities, parking lots, gardens etc.





Feature:



1. Octagonal poles are generally some continuously taper octagonal cross-section (can be customized for other sided also) that have one or more segment. On top, it has a bracket to mount the luminary or lines.



2. Octagonal Poles are used to illuminate private residential areas, commercial and industrial locations securely.



3. Steel pole range is designed with an outreach arm, in either single or double arrangement, as per customer specifications.



4. The octagonal light poles are immensely used for street, stadium, residential lighting structures. The design of an octagonal pole is planned and structured, considering the wind resistance and the workability of the arrangements.



5. The tapered round pole range is standard base plate mounted



6. All poles are hot-dip galvanized and can be powder coated or painted



7. All pole accessories such as luminaries cross arms, adaptors, head-frames, platforms, Lad SAF system, climbing rungs and lightning protection rods are available.



8. Extra access doors for the larger tapered round poles



9. Security or tamper-proof screws for access door covers.



10. The product data sheet represents the standard range, but other heights and section sizes can be custom designed to meet specific requirements.



11. Slip joint assembly required for poles over 11 meters in height.
