Q235B 10m Double Arm Street Light Pole Hot Dip Galvanized OEM

  • Q235B 10m Double Arm Street Light Pole Hot Dip Galvanized OEM
  • Q235B 10m Double Arm Street Light Pole Hot Dip Galvanized OEM
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number SLP-014
Minimum Order Quantity 10pcs
Price USD198-2038 per piece
Packaging Details Plastic Bubble sheets and pearl wool sheets
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 5000pce monthly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Double Arm Street Light Pole Grade Q235B, Q235B Or Specified Steel
Available Height 3m To 45m Shape Straight Round, Conical, Polygonal, Rectangular Etc.
Wind Speed 50-260m/s Surface Finish Hot Dip Galvanization And Powder Or PVDF Coating
Color White, Silver, Grey Or Specified Colors Packing Plastic Bubble Sheets And Pearl Wool Sheets
High Light

10m Double Arm Street Light Pole

,

Q235B Double Arm Street Light Pole

,

Q235B double arm light pole
Leave a Message
Product Description

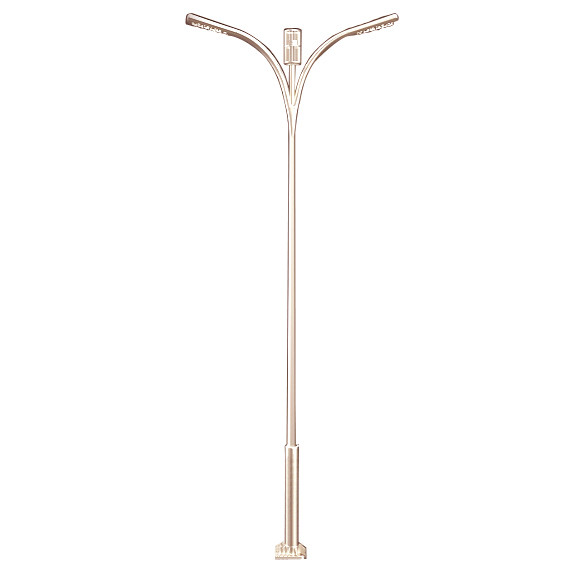

Q235B 10m Double Arm Street Light Pole Hot Dip Galvanized OEM



10m Good Quality Steel Light Pole with Dual Arms for mounting LED lamps





The popular steel light poles include tubular steel pole, solar street light pole, conical or tapered light pole, hexagonal or polygonal lighting pole, straight round street light pole and octagonal lighting pole. There are 2 ways of installation of the steel poles, one is directly buried and the other way is fixed to steel frame foundation with anchor bolts by base plate with bolts and nuts.


Specifications



Descriptions Steel poles for mounting lights, CCTV camera, guideboards, billboards etc.  double arm light pole
HS Code 7308900000
Material Low carbon weldable structural steel
Grade GB Q235, Q345, BS4360, ASTM A36 etc.
Yield Strength 235-355MPa
Height 5m to 35m or other specified height
Thickness 4mm to 15mm, depending on height of pole.
Pole Shape Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc.
Diameter or Dimensions Subject to height of pole and required mechanical properties.
Design Single, dual or multiple straight or curved arms and brackets
Surface Finish Hot dip galvanization plus powder or PVDF coating (optional)
Galvanization 65-100 Microns
Coating 35-80 Microns
Color Silver, grey, black, white, blue, yellow etc.
Applications Roadways, streets, highways, stadiums, public sqaures, airports, railway stations, communities, parking lots, gardens etc.





The steel light poles are designed with single, dual or multiple arms and brackets for mounting lamps, solar panels, CCTV cameras or other facilities as per requests. The designs of arms and brackets are also customized to requirements for different connectors of luminairs or other facilities. With custom special designs, the light poles are not only used for lighting, monitoring or traffic signal control but also for city landscape decorations.



Applicable Examples of Steel Poles

Q235B 10m Double Arm Street Light Pole Hot Dip Galvanized OEM 0

Street Lighting Pole



Q235B 10m Double Arm Street Light Pole Hot Dip Galvanized OEM 1

Smart City and Intelligent Traffic Signal and Lighting Pole Management System (all in 1 digital information solution)

High power LED lamp with light sensor control

Built-in loudspeaker and network system for APP online remote control

Weather and environment management system

Traffic signal control system

CCTV camera monitor system

LED screen for information and advertising display

Intercom alarm and alert communication system

High quality customized design steel light pole for support and mount.





Q235B 10m Double Arm Street Light Pole Hot Dip Galvanized OEM 2

Traffic signal light pole and CCTV monitor camera pole
