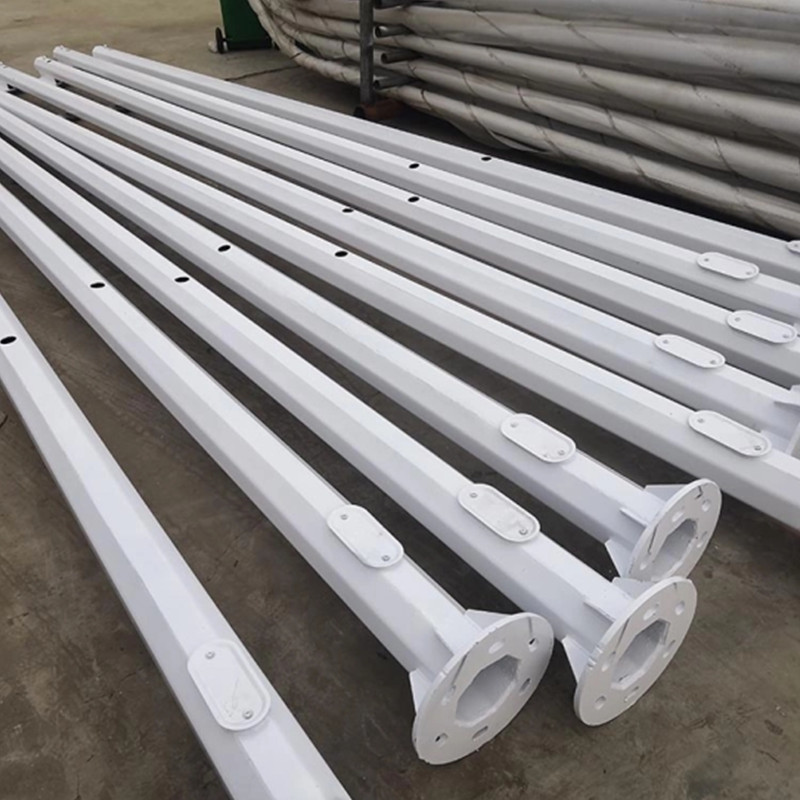

Commerical Outdoor Road Stadium Light Pole 4m To 12m 1 Arm

  • Commerical Outdoor Road Stadium Light Pole 4m To 12m 1 Arm
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number GX-1322
Minimum Order Quantity 100pcs
Price USD40-80 per piece
Packaging Details air bubble sheet package
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 2000 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Commerical Outdoor Road Stadium Light Pole 4m To 12m Surface Finish Hot Dip Galvanization Plus Powder Coating(optional)
Galvanization Standard ISO 1461 2009, ASTM A123 Welding Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
Pole Shape Conical, Tapered, Octangular, Polygonal, Round Etc. Arms 1 Arms Or Customized ODM
Color Grey Color Painting Applications Traffic Monitor, Public Security CCTV, Parking Lotsurveillance Etc.
Transportation By Sea To Clients Destination Port
High Light

Stadium Light Pole 4m

,

Commerical Stadium Light Pole
Leave a Message
Product Description

Commerical Outdoor Road Stadium Light Pole 4m to 12m

Feature:

1.Design standard:AASHTO standard
2.Wind speed: more than 30M/sec
3.Anti-seismic design: more than level 7
4.Mast material:ASTM A572 GR65/Q345/Q235/GR50

5.Mast structure: 8/12/16/20 sided/Round conical
6.Mast assembly: no welding on site/slip joint
7.Anti-corrosion protection: hot dip galvanization/hot dip galvanization and powder coating

8.Mounting Height: 1-16M

9.Brackets:Single or double brackets are in the shape and dimension as per customers requirement

10.Welding:Welding confirms with international welding standard of CWB

11.Base plate mounted:Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement

12:Ground mounted:The length buried underground as per customers requirement

13:Galvanizing Or Powder Coating:Hot dip galvanization with thickness of 80-100µm average

14:customized service or design service by Offered l



Data details:

Height: 10m

Thickness: 4mm

Diameter: 80mm/200mm

Material: Steel Q235

Hot-dip galvanizing: 80um

Plastic Spraying Layer: 100um

Flange Plate: 300mm*300*18mm

Lumbar Type Hole: 24mm*50mm

Lamp Arm: 60mm*3mm*1.5m

Solar Panel Support: 20mm*30mm*1.5mm



Specification:

Descriptions Steel poles for mounting lights, CCTV camera, guideboards, billboards etc. Double Arm Street Light Pole
Material Low carbon weldable structural steel
Grade GB Q235, Q345, BS4360, ASTM A36 etc.
Yield Strength 235-355MPa
Height 5m to 12m or other specified height
Thickness 4mm to 15mm, depending on height of pole.
Pole Shape Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc.
Diameter or Dimensions Subject to height of pole and required mechanical properties.
Design Single, dual or multiple straight or curved arms and brackets
Surface Finish Hot dip galvanization plus powder or PVDF coating (optional)
Galvanization 65-100 Microns
Coating 35-80 Microns
Color Silver, grey, black, white, blue, yellow etc.
Applications Roadways, streets, highways, stadiums, public sqaures, airports, railway stations, communities, parking lots, gardens etc.



Commerical Outdoor Road Stadium Light Pole 4m To 12m 1 Arm 0
