xCertification | ISO9001:2008 SGS COC | Name | Tower Monopole 12 Meter For Cell Phone Antenna Telecommunication |
---|---|---|---|
Steel Structure | Steel Monopole | Height | 20-100M |
Material | Q235B Q345B | Surface Treatment | Hot-dip Galvanization |
Galvanization Standard | ASTM A123/ ISO 1461 | Tension Strength (Mpa) | 360~510 |
Design Wind Speed | Up To 250 Km/h | Allowable Deflection | 0.5 ~1.0 Degree @ Operational Speed |
Grade Of Bolts And Nuts | Grade 4.8, 6.8, 8.8 | Life Period | More Than 25 Years, It Is According To Installing Environment |
Welding Method | CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) | ||
High Light | 12 Meter Steel Tubular Pole,Q345B Telecommunication Monopole Tower,12m Antenna Monopole Tower |

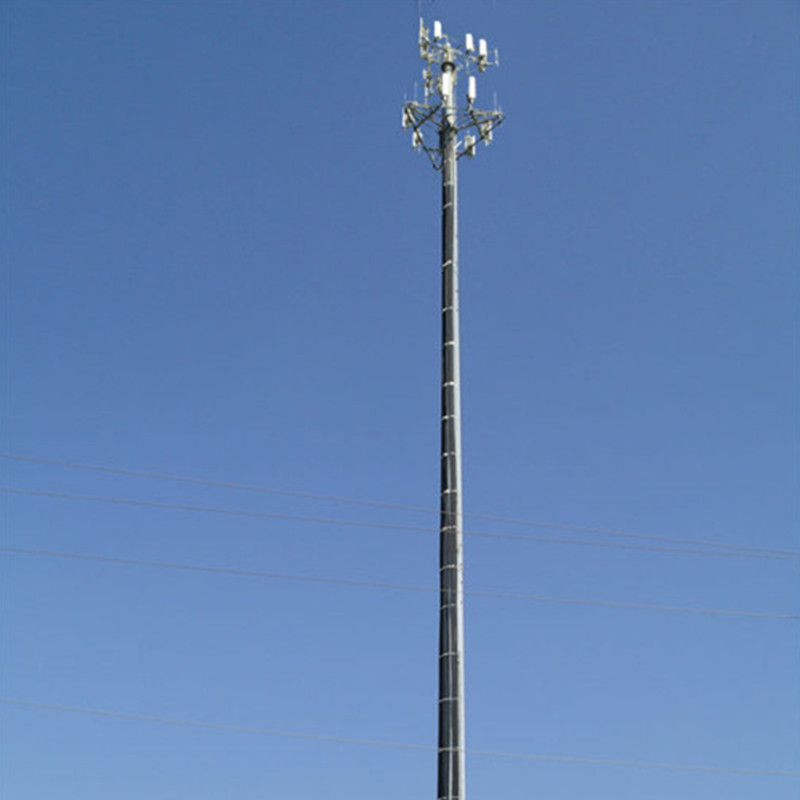

Tower Monopole 12 Meter For Cell Phone Antenna Telecommunication
Telecom monopole/Monopole tower/Steel Monopole
Connection Type: Flange connected and slip joint monopole
Material: Q235B, Q355B, Q420B
Height: up to 50m
Wind Speed: As per design
Design Standard: TIA/EIA-22-G
Certificates: AWS, CWB, ISO9001, ISO14001, OHSAS18001;
Finishing: Hot dip galvanizing(ISO1461 , ASTM123 ), painting, powder coating
Specification of Monopole Cell Phone Tower:
Material | Angle steel plates, flat steel plate, bolts and nuts |
Steel Type | Weldable low carbon structural steel |
Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
Yield Strength | Fy≥235MPa |
Tensile Strength | Fu≥400MPa |
Elongation | σ≥20% |
Surface Finish | Hot dip galvanization |
Galvanized layer | T≥65μm |
Height | 20m to 100m, customized to requests |
Design | 4 legs self-supporting or free standing lattice tower |
Structure | 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices. |
Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
Fixing/Fastening | Bolts and nuts, connecting plates |
Configuration | Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc. |
Wind Load | 0.35-1.0kN/sqm |
Lifespan | 20-50 years |
Warranty | 3 years |
Applications | GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations. |
Monopole Tower is a kind of tower consisting of an elevated base or pillar.
These small galvanized tube forms offer several savings possibilities for carriers and owners. The company’s speed and savings offer smaller rental areas, lower costs, and decreased build time. Monopole structures, constructed from steel, concrete, and fiberglass and are most freighted on a single trailer to save additional money. The most common poles of tapering steel or slip joints have become, with the other variables being phase tapered or tube segment poles. Multi-sided or smooth poles may be available.
The structures are aesthetically pleasant and well-integrated into the environment and require minimal installation space. Inside the transmission line, the coaxial cable not exposed to loads caused by wear and tire or wind. In general, the only visible additions are climbing accessories and antennas. Rotation of Azimuth into antenna arrays and platforms.
Monopole towers have the advantage of grating towers when it comes to construction and assembly times but reconcile the structural weight and base sizes.
Factors such as land and access requirements that might seem insignificant during the design process. They can have substantial impacts on construction costs and plan later.
