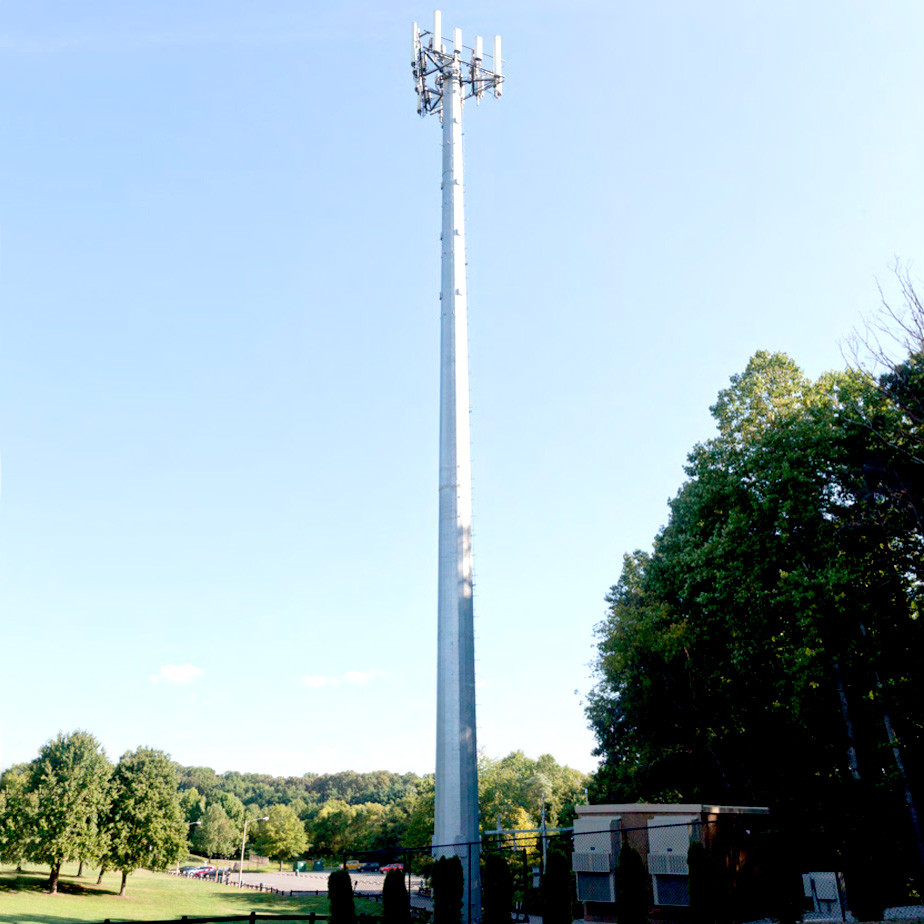

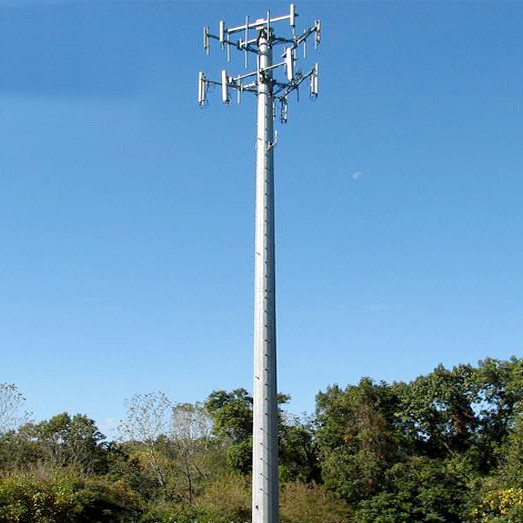

Communication Antenna Galvanised Steel Pole 50m High Mast ODM

  • Communication Antenna Galvanised Steel Pole 50m High Mast ODM
  • Communication Antenna Galvanised Steel Pole 50m High Mast ODM
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number STP-029
Minimum Order Quantity 1 set
Price USD498-8898 per piece
Packaging Details plastic bubble sheets and pearl wool sheets
Delivery Time 20-30days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 1000 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Galvanised Steel Pole Material Structural Carbon Steel
Surface Finish Hot Dip Galvanization Height 15m To 60m Or Other Customized Height
Wind Speed 35-50m/s Lifetime 20-50 Years
Warranty 3 Years Delivery Time 20-30 Days
High Light

50m Galvanised Steel Pole

,

ODM Galvanised Steel Pole

,

50m galvanised steel poles
Leave a Message
Product Description

Communication Antenna Galvanised Steel Pole 50m High Mast ODM



50m High Mast Galvanized Steel Pole Mobile Communication Antenna Tower





The popular steel communication poles include conical or tapered pole, hexagonal or polygonal steel pole, straight round steel pole and octagonal pole. There are 2 ways of installation of the steel poles, one is directly buried and the other way is fixed to steel frame foundation with anchor bolts by base plate with bolts and nuts.


Specifications

Descriptions Steel poles and towers for mounting communication antennas, microwaves, RRUs etc.
HS Code 7308900000
Material Weldable structural carbon steel
Grade GB Q235, Q345, BS4360, ASTM A36 etc.
Yield Strength 235-355MPa
Height 5m to 55m or other specified height
Thickness 4mm to 20mm, depending on height of pole.
Pole Shape Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc.
Diameter or Dimensions Subject to height of pole and required mechanical properties.
Design Single, dual or multiple platforms and brackets
Surface Finish Hot dip galvanization plus powder or PVDF coating (optional)
Galvanization 65-100 Microns
Coating 35-80 Microns (optional)
Color Silver, grey, black, white, blue, yellow etc.
Applications GSM, radio, 3G/4G/5G microcell, macrocell and other communication purposes or power transmission and distribution.



The steel high mast poles are designed with platforms or brackets for mounting antennas or other facilities as per requests. The designs of platforms and brackets are also customized to requirements for different connectors of antennas or other facilities. With custom special designs, the steel towers or poles are used for not only telecommunication or power transmission or distribution but also for landscape decorations.



The sections of tubular steel lattice tower completely made from steel pipes are generally welded in factory by 5m or longer lattice parts, each section is welded with flange plates for connection among tower sections. When you install the tower, you need to construct foundations with anchoring bolts frame (someone calls it steel cage frame) and concrete. The tower is fixed to foundations via flange plates with bolts and nuts. This kind of tubular steel lattice tower is easier for installation and very solid and strong, but the cost is a little higher and more costly for transportation because all the tower sections are welded in big parts which take more room in the truck or container.

Tubular and Angular Steel Communication/power transimission or distribution Tower



Communication Antenna Galvanised Steel Pole 50m High Mast ODM 0

Roadway/highway/stadium/Street light pole



Communication Antenna Galvanised Steel Pole 50m High Mast ODM 1

Traffic signal light pole,Traffic CCTV monitor camera and sign gantry





Smart City Management System Light Pole

Signage/Advertising Billboard or LED display pole or gantry

High Mast Landscape/Lighting/Communication Steel Tower

Artificial Pine Tree Camouflaged  Antenna Cell Tower
