45m Power Transmission Antenna Monopole Steel Tower

  • 45m Power Transmission Antenna Monopole Steel Tower
  • 45m Power Transmission Antenna Monopole Steel Tower
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number GX-1520
Minimum Order Quantity 1 set
Price USD1880-19990 per set
Packaging Details plastic bubble sheets
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 500 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 45m Power Transmission Antenna Monopole Steel Tower Galvanization Standard ASTM A123/ ISO 1461
Height 20-90M Steel Structure Monopole Tower
Surface Treatment Hot-dip Galvanization Tension Strength (Mpa) 360~510
Design Wind Speed Up To 250 Km/h Allowable Deflection 0.5 ~1.0 Degree @ Operational Speed
Welding Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) Grade Of Bolts And Nuts Grade 4.8, 6.8, 8.8
Life Period More Than 25 Years, It Is According To Installing Environment
High Light

GB Q235 Monopole Steel Tower

,

Monopole Antenna Tower 45m
Leave a Message
Product Description

45m Power Transmission Antenna Monopole Steel Tower





Specification of Single Monopole Steel Pipe:



Material Angle steel plates, flat steel plate, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.

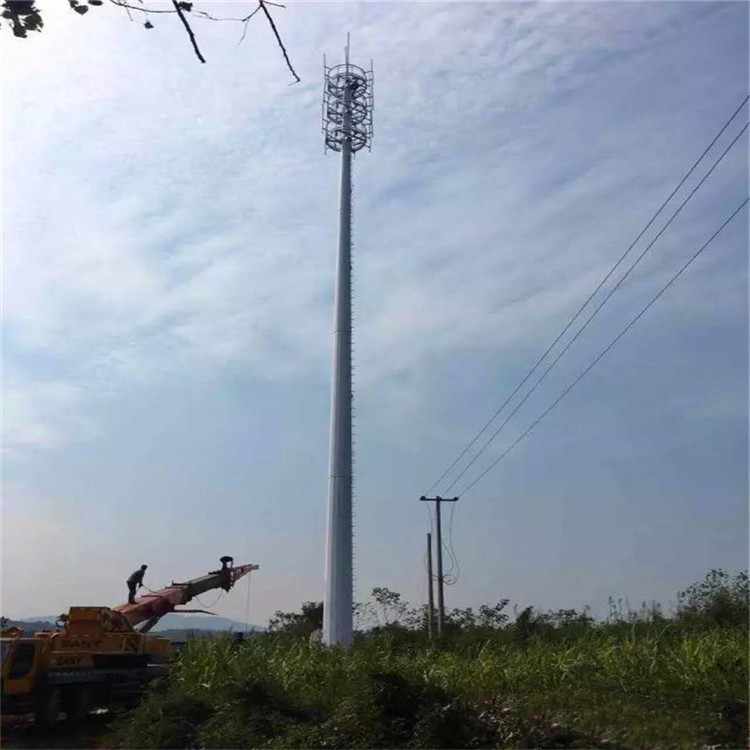

45m Power Transmission Antenna Monopole Steel Tower 0



Pole/Monopole



Monopole Tower is a kind of tower that consists of one stem or one pole anchored to the ground. According to its cross-section, Monopole Tower is divided in to two types :

  1. Cilcular-pole is a kind of monopole having a cross section/panel diameter similar from bottom to top.
  2. Tapered-pole is a kind of monopole having a varied cross-section diameter size that when the used diameter is more up will be smaller.

Monopole Tower Advantages:

Monopole towers have a single-pole design and often range anywhere from 100 to 170 feet. You can mount antennas on monopole towers with about 10 to 15 feet of vertical incremental separation. Due to this feature, they can often accommodate several carriers at one time with multiple antennas. Their narrow tubular designs reduce the number of production components and materials needed. Not only are monopole towers the most cost-efficient solutions but they are also the least intrusive. These towers are ideal for tight or limited spaces and when zoning is difficult. Monopole towers require less real estate to house the tower bases, making installations easier and deployments quicker. And renting rather than buying monopole telecom towers can help ensure even faster installations — especially if the towers you’re looking for are already in stock.
