20m High Mast Transmission Steel Monopole Antenna Tower For Communication

Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number GX-1519
Minimum Order Quantity 1 set
Price USD1880-19990 per set
Packaging Details plastic bubble sheets
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 500 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 20m High Mast Transmission Steel Monopole Antenna Tower For Communication Surface Treatment Hot-dip Galvanization
Galvanization Standard ASTM A123/ ISO 1461 Height 20-100M
Steel Structure Monopole Tower Design Wind Speed Up To 250 Km/h
Tension Strength (Mpa) 360~510 Grade Of Bolts And Nuts Grade 4.8, 6.8, 8.8
Allowable Deflection 0.5 ~1.0 Degree @ Operational Speed Welding Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
Life Period More Than 25 Years, It Is According To Installing Environment
High Light

Steel Monopole Antenna Tower 20m

,

4 Legs Self Supporting Monopole Tower

,

20m Mobile Communication Towers

Leave a Message
Product Description

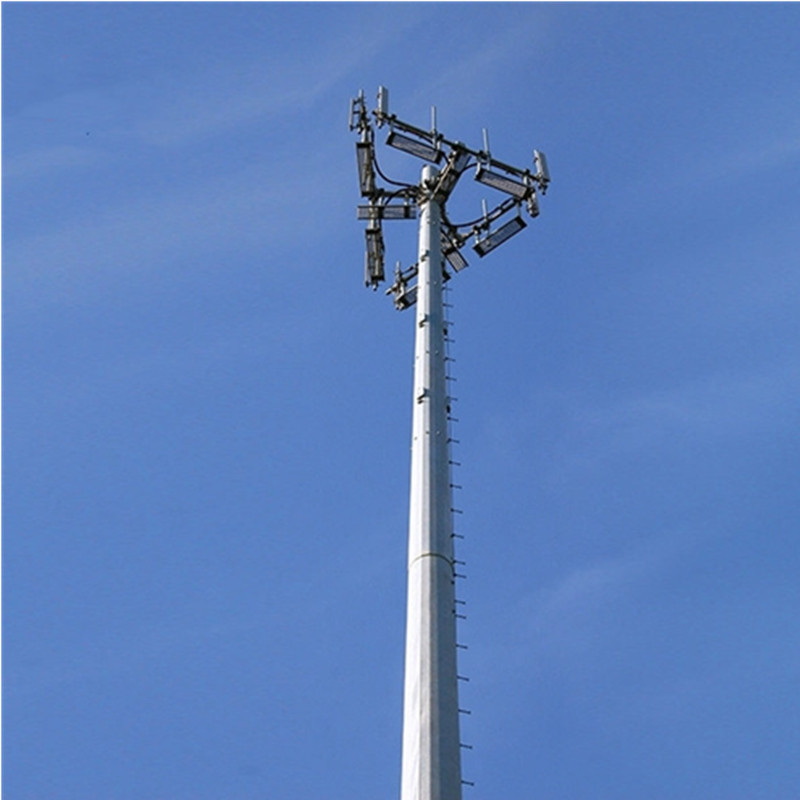

20m High Mast Transmission Steel Monopole Antenna Tower For Communication





Single tube tower,also called monopole tower, is a commonly used type. It belongs to the field of pipe tower technology, including tower body and working platform on top of the tower. At the bottom and on the working platform of the tower, there is a door opening respectively, antenna support is fixed on the fence of the platform.



The height of Guyed Tower and Monopole are usually lower than the tower transmitter type of self-supporting tower and designed to derives the lighter load from the kind of transmitter tower self-supporting, so that these two kind of towers will not be able to derives heavy load as the antenna which have dimension and heavy large.



Product Features:



1. Single tube towers are consisted of single tube and accessory, and main materials are generally made by steel plate bending.

2. The section of tower is circle or polygon, connected by inside flange, outside flange or plug-in.
3. The ladder and rest platform can be set inside the tower, and communication equipments can also be set there with high safety.
4. According to the customers’ choice, the ladder can be placed inside or outside.
5. With advanced international design concept and calculation method, tower slope can be adjusted in accordance with geology and climate.
6. Convenient and safe to install, small area covering, and easy to select site.




Specification of Single Monopole Steel Pipe:



Material Angle steel plates, flat steel plate, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.





Pole/Monopole



Monopole Tower is a kind of tower that consists of one stem or one pole anchored to the ground. According to its cross-section, Monopole Tower is divided in to two types :

  1. Cilcular-pole is a kind of monopole having a cross section/panel diameter similar from bottom to top.
  2. Tapered-pole is a kind of monopole having a varied cross-section diameter size that when the used diameter is more up will be smaller.



20m High Mast Transmission Steel Monopole Antenna Tower For Communication 0

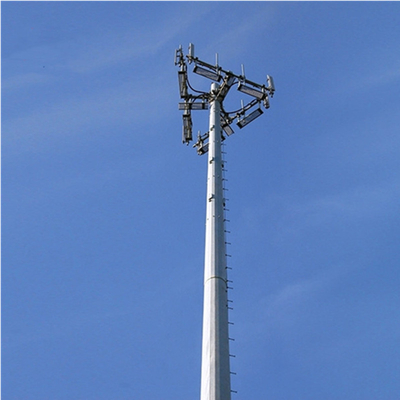

35m Single tube tower- Monopole tower
