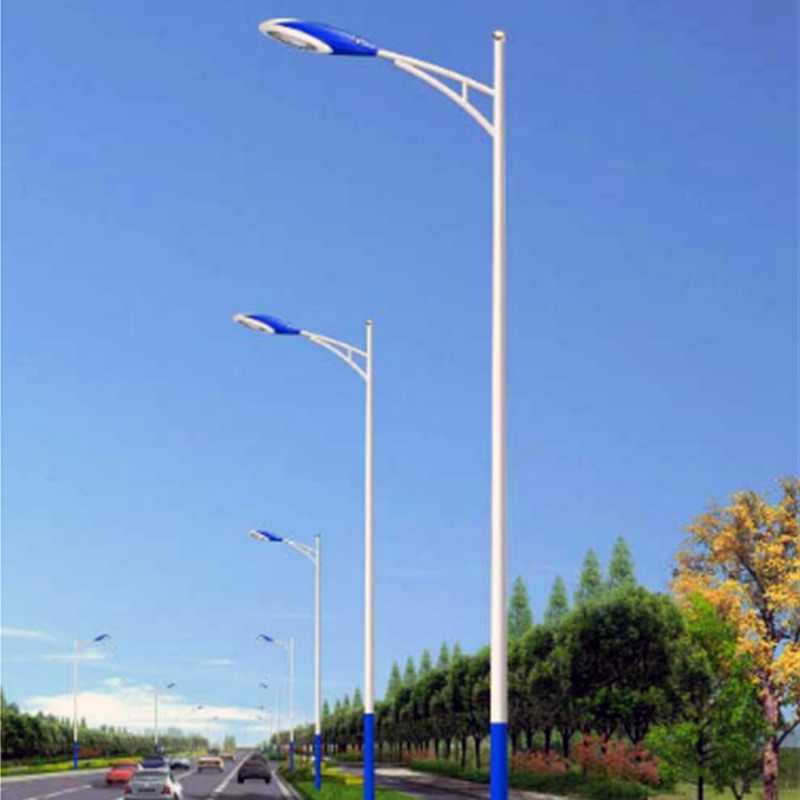

Single Arm Bracket Galvanized Steel Roadway And Highway Street Light Pole

Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number GX-221
Minimum Order Quantity 5
Price USD60-80 per piece
Packaging Details cotton fabric package
Delivery Time 20-25days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 2000 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Good Quality Galvanized Mild Steel Street Light Pole Material Weldable Structural Carbon Steel Plates Or Pipes
Surface Finish Hot Dip Galvanization Plus Powder Coating(optional) Height 5-15m
Pole Shape Conical, Tapered, Octangular, Polygonal, Round Etc. Arms 1 Or 2 Or Customized To Request
Applications Traffic Monitor, Public Security CCTV, Parking Lotsurveillance Etc. Color Grey/Green/Blue/Red/White
High Light

Single Arm Highway Street Light Pole

,

OEM Roadway Street Light Pole

,

ISO9001 Steel Pole For Street Light

Leave a Message
Product Description

Professional Supplier of all kinds of steel towers and street light poles

-Self-support galvanized steel Lattice towers

-Swaged High Mast Mono poles

-3 legs or 4 legs Telecom towers

-VHF Radio, GSM, 5G Mobile Communication towers

-Artificial tree Camouflaged antenna towers

-Utility and traffic Street light poles

-Sports and stadium lighting towers

-Warehouse or plant steel structures



Established in 2009, Guangzhou Guangxin Communication Equipment Co., ltd. is a professional manufacturer of all kinds of steel street light poles from Guangzhou, China with more than 10 years of experience. The street light poles are generally made from high quality structural low carbon steel (polularlly called mild steel) plates in swaged  tapered conical or octagonal tubes, the sizes can be customized according to the wind speed or wind load, project designs and specifications.



The street light Pole is made from good quality structural mild steel plate by swaged folding and welding, surface is finished with hot dip galvanization process as the key process to ensure the anti-corrosion and powder Coating as additional protection and color finish. The powder coating finish is applicable to durable color and high weather resistance.



The street light pole is generally made with 1 or 2 arm brackets for mounting LED lamps, sometimes there are more brackets for mounting solar panels and more lamps according to designs.



Specifications

Descriptions Good quality galvanized steel roadway or highway street light pole
Material Low carbon weldable structural steel, swaged mild steel plates
Grade GB Q235, Q345, BS4360, ASTM A36 or A572 etc.
Yield Strength 235-355MPa
Height 5m to 35m or other specified height
Thickness 3mm to 15mm, depending on wind speed and height of pole.
Pole Shape Tapered Conical, straight round/cylindrical, square or rectangular, polygonal shape etc.
Diameter or Dimensions Subject to height of pole and required mechanical properties.
Design Single, dual or multiple straight or curved arms and brackets
Surface Finish Hot dip galvanization plus powder or PVDF coating (optional)
Galvanization 65-110 Microns
Coating 35-80 Microns
Color Silver, grey, black, white, blue, yellow etc.
Applications Roadways, streets, highways, stadiums, public sqaures, airports, railway stations, communities, parking lots, gardens, yards etc.



Our Product Range



1, Mobile Telecommunication lattice towers and Masts

2, Power transmission towers and poles

3, Celluar antenna poles

4, Artificial trees and fiberglass cover camouflaged antenna towers

5, Roadway, highway street light poles

6, High mast utility, sports field and stadium lighting towers and columns

7, Traffic signs, signal lights, CCTV surveillance cameras cantilevers and gantry frames

8, Other steel structures.



Single Arm Bracket Galvanized Steel Roadway And Highway Street Light Pole 0

                 Popular Roadway, highway street light pole design



The popular steel light poles include tubular steel pole, solar street light pole, conical or tapered light pole, hexagonal or polygonal lighting pole, straight round street light pole and octagonal lighting pole. There are 2 ways of installation of the steel poles, one is directly buried and the other way is fixed by base plate with bolts and nuts.



The steel lighting poles are designed with single, dual or multiple arms and brackets for mounting lamps, solar panels, CCTV cameras or other facilities as per requests. The designs of arms and brackets are also customized to requirements for different connectors of luminairs or other facilities. With custom special designs, the light poles are not only used for lighting, monitoring or traffic signal control but also for city landscape decorations.




Erection methods of Street Light Poles

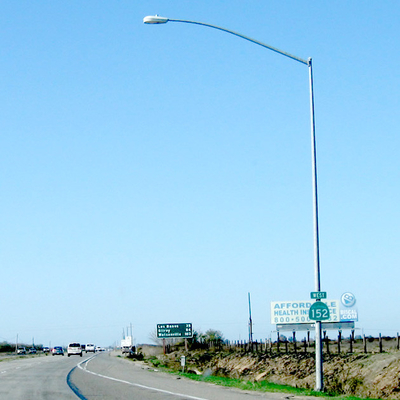

1. Directly buried or planted into ground or earth
Single Arm Bracket Galvanized Steel Roadway And Highway Street Light Pole 1Single Arm Bracket Galvanized Steel Roadway And Highway Street Light Pole 2
 The light pole is buried or planted directly into ground. In order to make it strong, the hole for fixing the light pole is generally filled with concrete.

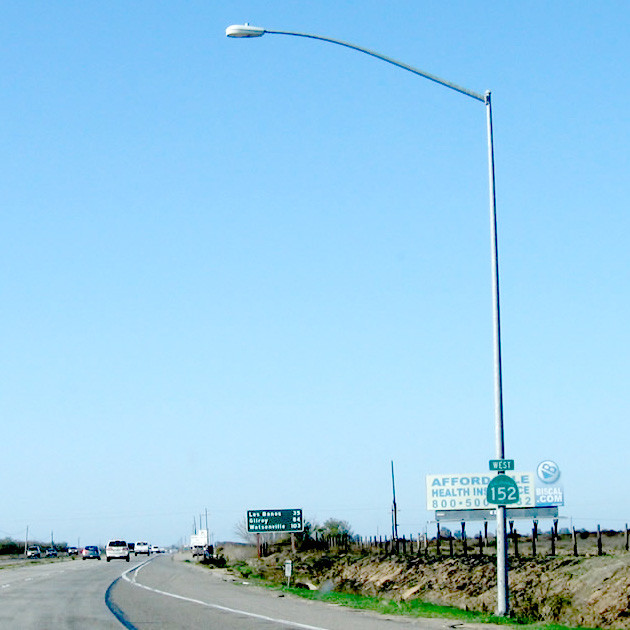

2, Mounted by bolts with concrete foundation
Single Arm Bracket Galvanized Steel Roadway And Highway Street Light Pole 3Single Arm Bracket Galvanized Steel Roadway And Highway Street Light Pole 4
 Before fixing the light pole, you need to dig a hole and construct a concrete foundation, the anchor bolts are embedded into the concrete foundation. After the concrete is dry and solid, use nuts to fix the pole to the foundation via anchor bolts and then use some cement to cover the bolts and nuts, backfill the earth and complete installation.


Questions & Answers
1, Where is your factory?
Our factory is located in Huadu District of Guangzhou City, about 35km away from Baiyun Airport.

2, What can you supply?
We're professional manufacturer of steel frames for civil infrastructures and frameworks, especially telecommunications towers, power grid towers, street light poles, portal gantry frames for traffic lights, guideboards, CCTV cameras, LED display screens, advertising billboards, factory plants etc. We can produce the steel works according to your designs and drawings.

3, How long can you deliver?
15-35 days after confirming shop drawings, depending on order quantity.

4, What's your advantages comparing with other suppliers?
We have been specializing in this field for more than 10 years since 2009, we have professional engineers and designers, skilled workers, advanced production line equipped with CNC and laser cutting machines, welding machines, shaping machines, test instruments etc., we can produce the poles and towers or other steel frameworks according to customers' designs, specifications, drawings, requirements. Our quality is very good but price is reasonable and competitive. We're also providing excellent in-sales and after-sales services. We always provide good quality products and services beyond customers' expectations.

5, Can I customize the towers, poles or frameworks?
Yes, we can fabricate the towers, poles, frameworks or other related products according to your drawings, specifications and
requirements.

6, What's your payment terms?
T/T or irrevocable documentary L/C is accepted for us. The general payment arrangement is 30% down payment before production and
full payment before shipping by T/T, or L/C issued before production.

7, Can you guarantee the quality?
Yes.

8, Where are you shipping?
We usually ship from any port of Guangzhou or Shenzhen, other ports in other cities are also available if required.

Our actory is a Hi-Tech and ISO approved company with more than 12 years of manufacturing experience
