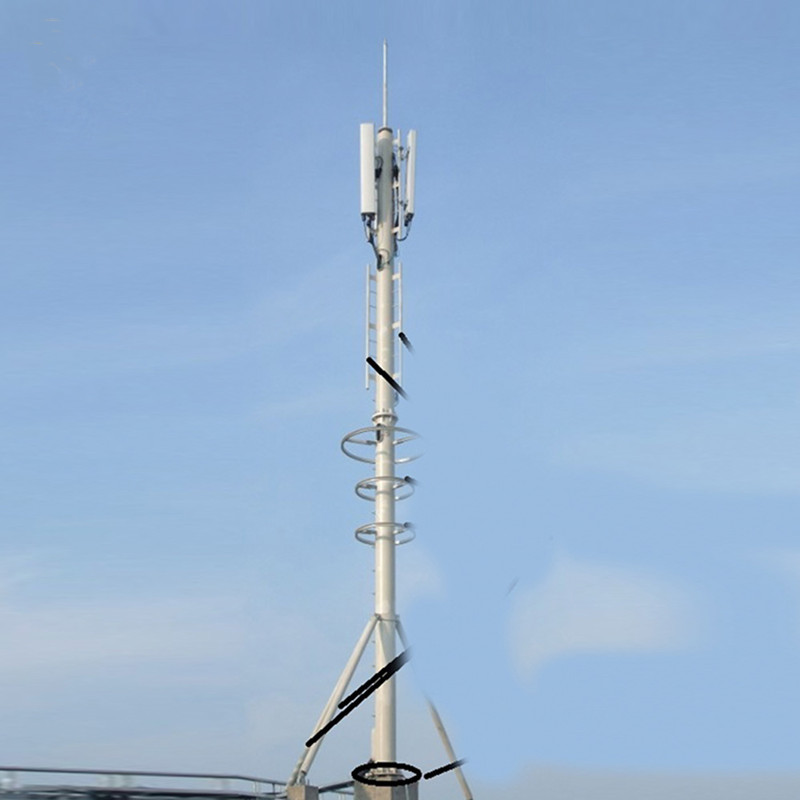

10m To 60meters Telecommunication Steel Mono Pole Tower

  • 10m To 60meters Telecommunication Steel Mono Pole Tower
  • 10m To 60meters Telecommunication Steel Mono Pole Tower
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number GX-1505
Minimum Order Quantity 1 set
Price USD1880-19990 per set
Packaging Details plastic bubble sheets
Delivery Time 20-30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 500 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 10m To 60meters Telecommunication Steel Mono Pole Tower Height 30m To 100m Or Customized Height
Surface Finish Hot Dip Galvanization Material Grade GB Q235, Q345, Q355 Or Specified Grade
Yield Strength 235~355MPa Material Weldable Structural Angle Steel Plates Or Pipes
Galvanized Thickness 65~85 Microns Design 1-5 Platforms With Mounting Brackets
Wind Load 0.36-1.0kN/sqm Bolts DIN7990, DIN931, DIN933
Nuts ISO4032, ISO4034 Washers DIN7989, DIN127B, ISO7091
High Light

35m Steel Monopole Tower

,

Steel Monopole Tower Q345

,

Hot Dip Galvanization Steel Pole Tower
Leave a Message
Product Description

10m to 60meters Telecommunication Steel Mono Pole Tower

The 35m Telecommunication Steel Monopole Tower for 5G antenna is optimized for medium to heavy loads which is used for standard cellular sites.
Altai towers can be equipped with a variety of accessories, such as work or rest platforms, antenna mounts, safety devices,
obstruction lights, lightning protection kit and more. All of the accessories can be installed at any desired height and
orientation according to customer Specification.


Material:Q235,Q345 usually
Design Standard: AWS D 1.1; ASTM123, ANSI-TIA-222-H
Bolt Grade: 6.8, 8.8
Basic Wind Speed: 0-330km/h
Working and Rest Platform:height and quantity up to clients
Antenna Load: depends on clients
Steel Tube Tower Color: customized
Galvanized: according to ASTM A123 standard hot dip galvanized. We have our own galvanization plant.
Usage of Towers: GSM/CDMA Equipment
Payment: 30% deposit and 70% before shipment
Delivery Time: usually 30 days after deposit received
Warranty: at least 25 years


Specificationi of Single Tubular Tower:

Material Angle steel plates, flat steel plate, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.




Monopole tower

Single tube tower also called monopole tower, is a commonly used type, with beautiful appearance, covering an small area of 9 to 18 square meter, cost - effective , and is adopted by majority of the construction. Tower body adopt more reasonable section, which is connected through high strength bolt. It has the characteristics of easy installation and can adapt to a variety of complicated field site.



Self Supporting Tower

Self supporting tower usually is 3leg of 4leg tower, and its material is steel pipe or angle steel. As for the connection, tubular tower is connected by flange, and angle steel tower is connected by nuts and bolts.
Features:
1.Small coefficient of wind load, strong wind resistance.
2.Save land resource, convenient location.
3.Convenient transportation and installation.


10m To 60meters Telecommunication Steel Mono Pole Tower 0
50m Monopole Steel Tower With Antenna Wifi Signal Microwave


The structure of 4 legged steel lattice communication tower is generally composed of foundation anchoring bolts (cage frames), sections of tower body, 1 to 5 platforms, mountning brackets, lightning arrest/protection rod, ladder, earthing plates, anti-fall safety system (cage structure) and fasteners (such as clamps, clips, bolts and nuts etc.). The design, structure and height of telecommunication towers can be customized according to requirements and drawings.

Can I customize the towers, poles or frameworks?
Yes, we can fabricate the towers, poles, frameworks or other related products according to your drawings, specifications and requirements.
What’s your payment terms?
T/T or irrevocable documentary L/C is accepted for us. The general payment arrangement is 30% down payment before production and full payment before shipping by T/T, or L/C issued before production.
Can you guarantee the quality?
Yes.
Do you have catalog and price list?
Yes, we can send catalog unpon request. product price quoted according to supplied drawing.
