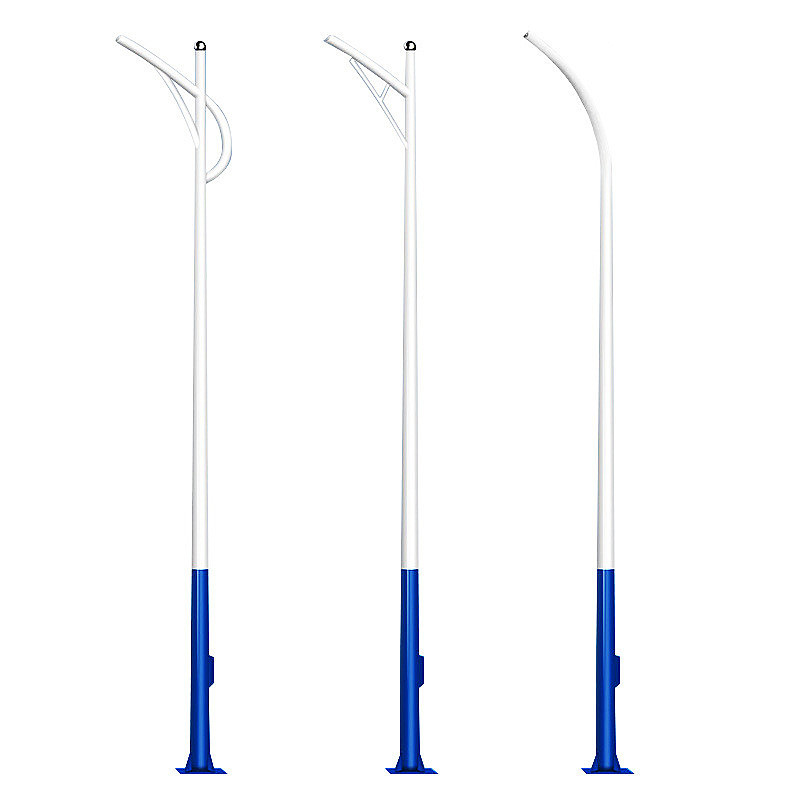

Powder Coating Q235 Galvanised Street Light Pole One Arm ODM
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Galvanized Powder Coating Q235 Solar Street Light Pole | Material | Weldable Structural Carbon Steel Plates Or Pipes |
---|---|---|---|
Surface Finish | Hot Dip Galvanization Plus Powder Coating(optional) | Height | 8m Or Customized To Requests |
Pole Shape | Conical, Tapered, Octangular, Polygonal, Round Etc. | Arms | 1 Arms Or Customized ODM |
Applications | Traffic Monitor, Public Security CCTV, Parking Lotsurveillance Etc. | ||
High Light | Q235 Galvanised Street Light Pole,ODM Galvanised Street Light Pole,One Arm Galvanised Street Light Pole |
Galvanized Powder Coating Q235 Solar Street Light Pole
Galvanised Street Light Pole Coating process spraying plastic is the key process to ensure the anti-corrosion of the lamp pole. The plastic powder adopts outdoor professional powder to ensure the lamp pole's long-term luster as new.
Descriptions | Steel poles for mounting lights, CCTV camera, guideboards, billboards etc. Double Arm Street Light Pole |
Material | Low carbon weldable structural steel |
Grade | GB Q235, Q345, BS4360, ASTM A36 etc. |
Yield Strength | 235-355MPa |
Height | 5m to 35m or other specified height |
Thickness | 4mm to 15mm, depending on height of pole. |
Pole Shape | Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc. |
Diameter or Dimensions | Subject to height of pole and required mechanical properties. |
Design | Single, dual or multiple straight or curved arms and brackets |
Surface Finish | Hot dip galvanization plus powder or PVDF coating (optional) |
Galvanization | 65-100 Microns |
Coating | 35-80 Microns |
Color | Silver, grey, black, white, blue, yellow etc. |
Applications | Roadways, streets, highways, stadiums, public sqaures, airports, railway stations, communities, parking lots, gardens etc. |
All-in-1 Smart Lighting Pole includes:
LED lamps
CCTV camera
LED display
Intercom Alarm
WIFI Hotspot or antenna
Weather radio
USB sockets
etc.
High Mast ligting pole is generally 20m-35m high made of several sections by sleeve joint, the lamps are generally 200-400W LED luminairs. Very popular for outdoor large sqaures, highways or convention centers.
The popular steel light poles include tubular steel pole, solar street light pole, conical or tapered light pole, hexagonal or polygonal lighting pole, straight round street light pole and octagonal lighting pole. There are 2 ways of installation of the steel poles, one is directly buried and the other way is fixed by base plate with bolts and nuts.
Typical installation way of steel poles, especially for the high mast lighting or communication poles
Hot dip galvanization with thickness of 80-100µm average in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123, IS: 2626-1985
Directly buried light post
Applicable Examples of Steel Poles
6m x 10m (6m high pole 10m long arm) Galvanized Steel Traffic Sign, Camera and Signal Light Cantilever
Billboard and Sign Galvanised Steel Support Column and Gantry Frame
