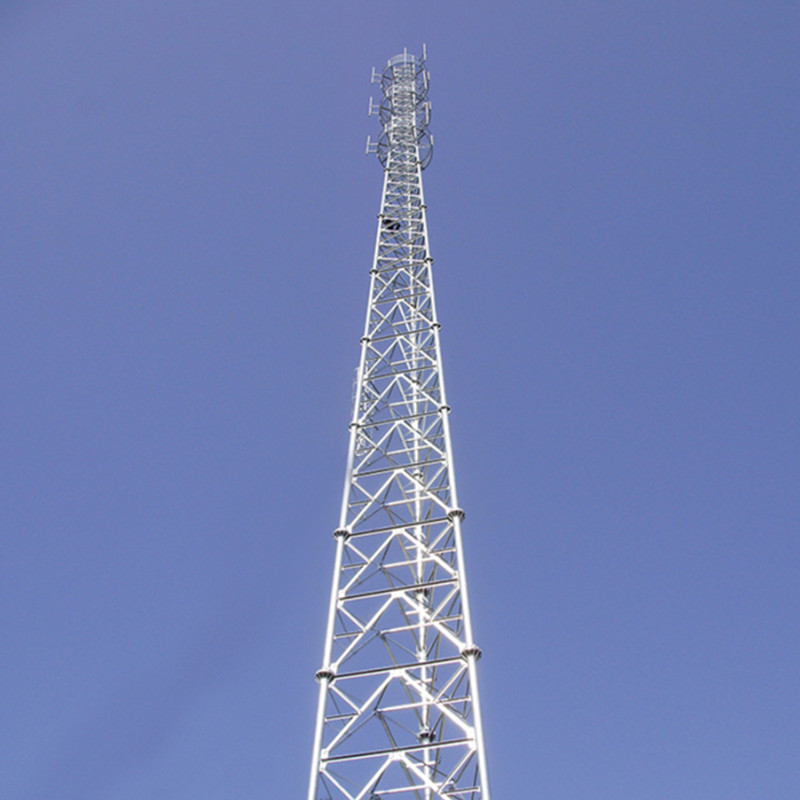

3 Legged Lattice Tower Hot Deep Galvanized 50m 60m 70m 80m

Place of Origin Guangzhou
Brand Name Guangxin
Certification ISO9001
Model Number GX-5679G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name 3 Legged Lattice Hot Deep Galvanized Tower Impact Strength KV (J) 27(20°C)---Q345B(S355JR)
Allowable Deflection 0.5 ~1.0 Degree @ Operational Speed Steel Structure ASTM A572 Gr50
Yield Strength 355 MPa Wind Pressure 180-220kmph
Lifespan 50years Guarantee 3-5 Years
Delivery Days 15-25days Connection Type Parts For Connection Or Installation Will Be Provided
Design Of Pole Against Earthquake Of 8 Grade
High Light

3 Legged Lattice Tower


Hot Deep Galvanized Legged Lattice Tower


80m Legged Lattice Tower

Leave a Message
Product Description

3 Legged Lattice Hot Deep Galvanized Tower 50m 60m 70m 80m



Specification of 3 Legged Lattice Tower Accessories:


Material Tubular Steel, Angle steel plates, Flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.



What is the Communication lattice tower?


Communication tower is a kind of signal transmission tower, also called signal transmission tower or signal tower, main function support signal, support for signal transmission antenna, used for mobile, Unicom, telecommunication, traffic satellite positioning system (GPS) and other communications departments. And it is made from individually bolted angle steel pieces, these Lattice towers and masts are ideally suited to larger towers. Angle steel is most commonly used for the construction of Electricity Transmission Towers.


Cell towers are usually placed so that they can cover a wide area. The working range of a cell tower depends on many factors, such as:                 · Rated power of the transmitter                                                                                                                                                                                     · Frequency of signal                                                                                                                                                                                                       · Height of the antenna above its surrounding                                                                                                                                                                 · Required uplink/downlink data rate of the customer’s device                                                                                                                                     · Reflection or absorption of radio energy by nearby buildings or vegetation                                                                                                               · Weather conditions                                                                                                                                                                                                       · Geographical or regulatory factors


Customer Support Services:

  • We re specialized in the production, design, installation and maintenance of beautification tower, bionic tree communications tower, anemometer tower, communication tower, telecommunication tower, single tube tower, etc.


  • We undertake the design, manufacturing and construction of all kinds of steel structure.


  • Our company has rich experience more than 20 years and has 10 senior engineers and five professional production lines.


  • Fast delivery time 20 days,high efficient supply ability 1000 tons monthly, so we are sure to deliver your goods strictly as you required and meet your order quantity to the fullest.
