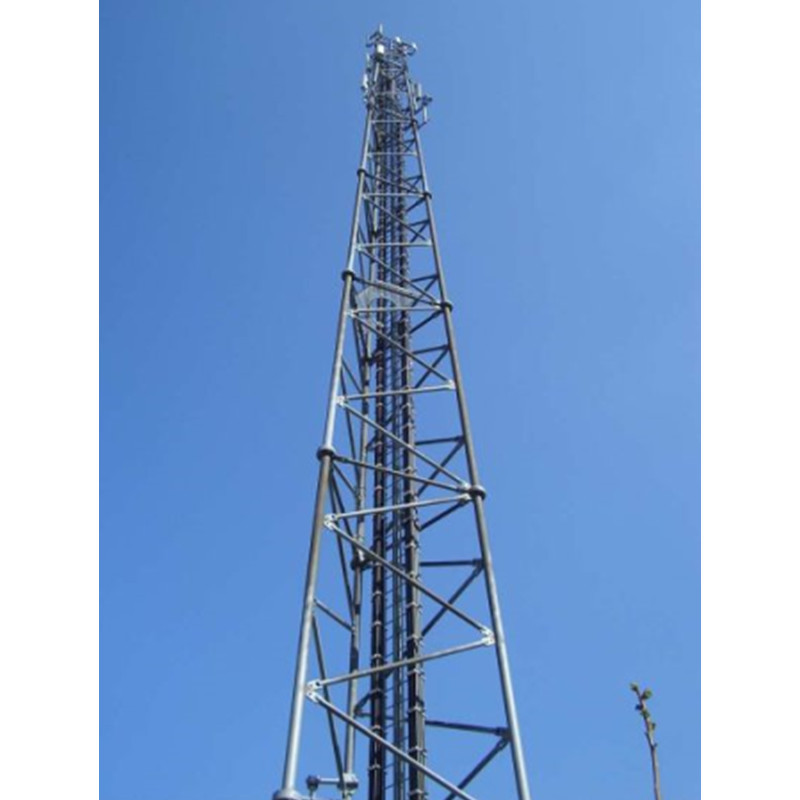

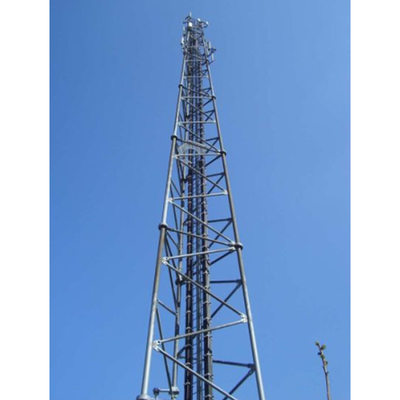

5G Celltower 3 Legs Tubular Steel Tower Galvanized Steel S355RJ Material
| Place of Origin | Guangzhou |
|---|---|
| Brand Name | Guangxin |
| Model Number | GX-5677G |
| Minimum Order Quantity | 1set |
| Price | USD1880-2100 |
| Packaging Details | Cotton sheets or cloth package by bundle |
| Delivery Time | 20-30days |
| Payment Terms | Western Union, L/C, T/T |
| Supply Ability | 300ton/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Certification | ISO9001:2008 SGS COC | Product Name | 5G Celltower 3 Legs Tubular Steel Tower |
|---|---|---|---|
| Tower Type | Self Supporting Tube Tower | Connection Type | Parts For Connection Or Installation Will Be Provided |
| Impact Strength KV (J) | 27(20°C)---Q345B(S355JR) | Allowable Deflection | 0.5 ~1.0 Degree @ Operational Speed |
| Yield Strength | 355 MPa | Steel Structure | ASTM A572 Gr50 |
| Design Of Pole | Against Earthquake Of 8 Grade | Guarantee | 3-5 Years |
| Wind Pressure | 180-220kmph | ||
| High Light | 3 Legs Tubular Steel Tower,S355RJ Tubular Steel Tower |
||
Product Description
5G Celltower 3 Legs Tubular Steel Tower Galvanized Steel Q355B Material
Specification of Tubular Steel Tower Accessories:
| Material | Tubular Steel, Angle steel plates, Flat steel plate |
| Steel Type | Weldable low carbon structural steel |
| Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
| Yield Strength | Fy≥235MPa |
| Tensile Strength | Fu≥400MPa |
| Elongation | σ≥20% |
| Surface Finish | Hot dip galvanization |
| Galvanized layer | T≥65μm |
| Height | 20m to 100m, customized to requests |
| Design | 4 legs self-supporting or free standing lattice tower |
| Structure | 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices. |
| Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
| Fixing/Fastening | Bolts and nuts, connecting plates |
| Configuration | Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc. |
| Wind Load | 0.35-1.0kN/sqm |
| Lifespan | 20-50 years |
| Warranty | 5 years |
| Applications | GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations. |
Features of tubular steel tower:
1. Material: weldable structural low carbon steel angle plates, flat plates and pipes.
2. Tower legs: Chinese steel grade Q345B, which is equivalent to ASTM A572 GR50 or customized to customer's reuqests.
3. Other webs, braces and auxiliary steel: Chinese Q2138B, is equivalent to ASTM A36
4. Plates: Chinese steel Q345B or Q235B
5. Bolts: Chinese grade 6.8 and 8.8 or equivalent grades.
6. Dimension and tolerance for angle are according to GB/T1591-1994, similar to EN 10056-1/2
7. Hot dip galvanization in accordance with GB/T 13912-2002, which is equivalent to ASTM A 123 or custom specifications.
8. The welding is done in accordance with AWS D1.1 or CWB standard
9. Application: telecom signal transmmision.
The rist of 5G
So 5G is a new technology – a stronger technology. Should people be concerned? Currently, 5G is a non-ionizing RFR, meaning it’s not able to do any real damage.
Many conspiracy theories point towards the fact that 5G will require more transmitters. Since there are more popping up in cities, towns and neighborhoods, will the dose be higher? While a reasonable question to ask, 5G cell towers are still not a threat, even when there’s more cropping up. The electromagnetic radiation you withstand by walking outside is far greater than a 5G cell tower.
But what about 5G’s higher gigahertz frequency? Since it’s higher, is it more dangerous to living organisms? Currently, there’s no science supporting this. The FCC has also stated that there are no health problems currently associated with cell towers.
“For 5G equipment, the signals from commercial wireless transmitters are typically far below the RF exposure limits at any location that is accessible to the public,” said Neil Derek Grace, a communications officer at the FCC.
While scientists are continuing to look into 5G technology and possible health risks, there is currently nothing to support that 5G cell towers do real harm to humans or animals.
