Galvanized Angle Steel Tower 30 Meter Radio Telecom Accessories
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xCertification | ISO9001:2008 SGS COC | Product Name | Galvanized Angle Steel Tower |
---|---|---|---|
Tower Type | Self Supporting Angle Tower | Connection Type | Parts For Connection Or Installation Will Be Provided |
Impact Strength KV (J) | 27(20°C)---Q345B(S355JR) | Allowable Deflection | 0.5 ~1.0 Degree @ Operational Speed |
Yield Strength | 355 MPa | Steel Structure | ASTM A572 Gr50 |
Design Of Pole | Against Earthquake Of 8 Grade | Guarantee | 3-5 Years |
Wind Pressure | 180-220kmph | ||
High Light | Galvanized Angle Steel Tower,30 Meter Angle Steel Tower |

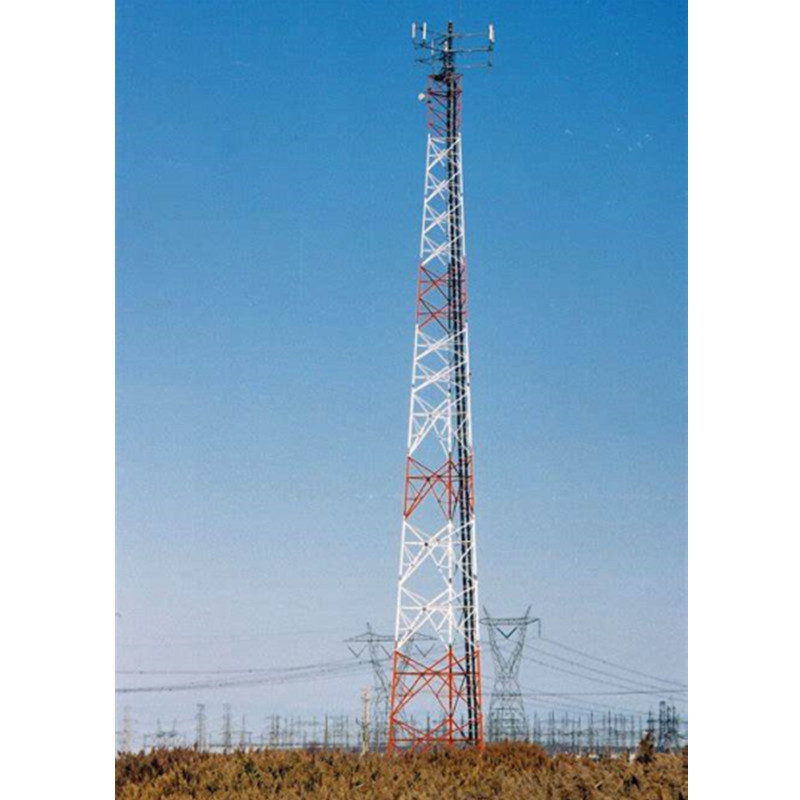

Galvanized Angle Steel Tower 30 Meter Radio Telecom Accessories
Specification of Angle Steel Tower Accessories:
Material | Tubular Steel, Angle steel plates, Flat steel plate |
Steel Type | Weldable low carbon structural steel |
Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
Yield Strength | Fy≥235MPa |
Tensile Strength | Fu≥400MPa |
Elongation | σ≥20% |
Surface Finish | Hot dip galvanization |
Galvanized layer | T≥65μm |
Height | 20m to 100m, customized to requests |
Design | 4 legs self-supporting or free standing lattice tower |
Structure | 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices. |
Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
Fixing/Fastening | Bolts and nuts, connecting plates |
Configuration | Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc. |
Wind Load | 0.35-1.0kN/sqm |
Lifespan | 20-50 years |
Warranty | 5 years |
Applications | GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations. |
The rist of 5G
So 5G is a new technology – a stronger technology. Should people be concerned? Currently, 5G is a non-ionizing RFR, meaning it’s not able to do any real damage.
Many conspiracy theories point towards the fact that 5G will require more transmitters. Since there are more popping up in cities, towns and neighborhoods, will the dose be higher? While a reasonable question to ask, 5G cell towers are still not a threat, even when there’s more cropping up. The electromagnetic radiation you withstand by walking outside is far greater than a 5G cell tower.
But what about 5G’s higher gigahertz frequency? Since it’s higher, is it more dangerous to living organisms? Currently, there’s no science supporting this. The FCC has also stated that there are no health problems currently associated with cell towers.
“For 5G equipment, the signals from commercial wireless transmitters are typically far below the RF exposure limits at any location that is accessible to the public,” said Neil Derek Grace, a communications officer at the FCC.
While scientists are continuing to look into 5G technology and possible health risks, there is currently nothing to support that 5G cell towers do real harm to humans or animals.
Conclusion
As technology continues to advance, more and more cell towers will crop up around the United States. But as we await 5G technology, there are still over 307,000 cell towers around the nation that ensure we get cell phone service almost everywhere we go. It’s incredible what technology is behind these towers.
we ensure these cell towers are not only meeting health and safety standards, but are working as originally intended.
