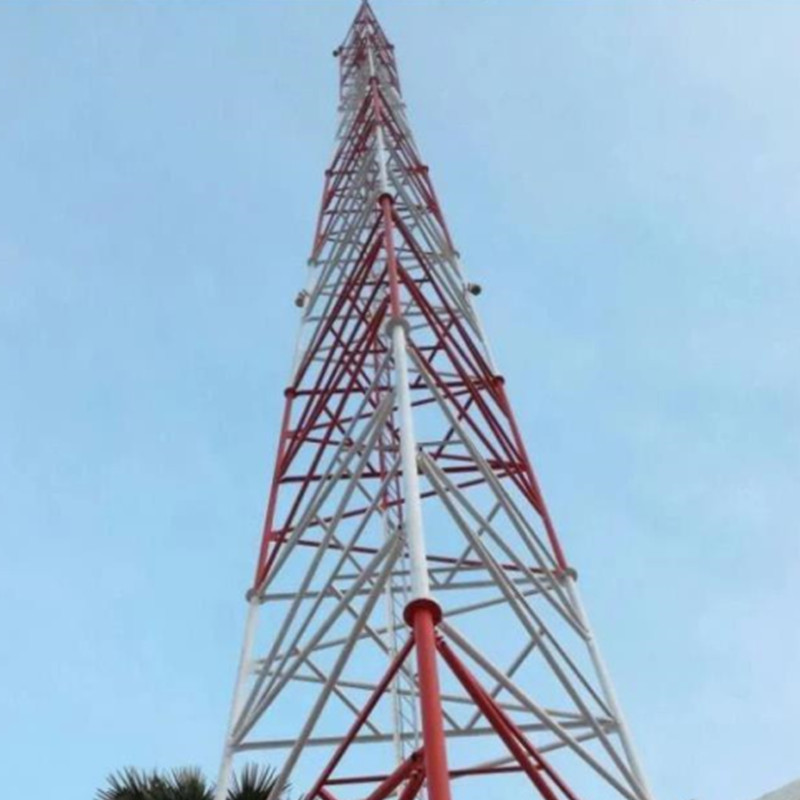

Square Design 45m Telecommunication Mobile Tower 4 Legged Tube

  • Square Design 45m Telecommunication Mobile Tower 4 Legged Tube
Place of Origin Guangzhou
Brand Name Guangxin
Model Number GX-5669G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ISO9001:2008 SGS COC Product Name 45m Telecommunication Mobile Tower
Tower Type Self Supporting Vertical Tubular Connection Type Parts For Connection Or Installation Will Be Provided
Impact Strength KV (J) 27(20°C)---Q345B(S355JR) Allowable Deflection 0.5 ~1.0 Degree @ Operational Speed
Height 20m To 110m Available Yield Strength 355 MPa
Steel Structure ASTM A572 Steel Design Of Pole Against Earthquake Of 8 Grade
High Light

45m Telecommunication Mobile Tower

,

4 Legged Tube Telecommunication Mobile Tower
Leave a Message
Product Description

Square Design 45m Telecommunication Mobile Tower 4 Legged Tube



The Feature of Telecom Mobile Tower:

The steel lattice is the most widespread form of construction. It provides great strength, low weight and wind resistance, and economy in the use of materials. Lattices of triangular cross-section are most common, and square lattices are also widely used. Guyed  Masts are often used; the supporting guy lines carry lateral forces such as wind loads, allowing the mast to be very narrow and simply constructed. Site One design, manufacture and install freestanding lattice towers and masts across the CHINA. Made from individually bolted angle steel pieces, these Lattice towers and masts are ideally suited to larger towers. Angle steel is most commonly used for the construction of Electricity Transmission Towers.



Our Angle Steel or Tubular Steel Lattice Towers are typically used for broadcast, mobile, microwave, radar, wind measurement and wireless broadband. Choose from our standard solutions (up to 80m) or use our design to manufacture a bespoke solution.



We offer full project management services from site acquisition & planning permission to foundations and installation.



We undertake the design, manufacturing and construction of all kinds of steel structure and specialized in the production, design, installation and maintenance of beautification tower, bionic tree communications tower, anemometer tower, communication tower, telecommunication tower, single tube tower, etc. Our experienced team of managers, designers, fabricators, and installers will look after the entire process from start to finish.



Specification of Communication Telecom Mobile Tower Accessories:



Material Tubular Steel, Angle steel plates, Flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.
