ASTM A572 Steel 3 Legs Angle Lattice Tower For Antenna Transmission

  • ASTM A572 Steel 3 Legs Angle Lattice Tower For Antenna Transmission
Place of Origin Guangzhou
Brand Name Guangxin
Model Number GX-5667G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ISO9001:2008 SGS COC Product Name Steel Angle Lattice Tower
Steel Structure ASTM A572 Steel Braces GB/T 700:Q235B
Tower Type Self Supporting Vertical Tubular Design Of Pole Against Earthquake Of 8 Grade
Connection Type Parts For Connection Or Installation Will Be Provided Impact Strength KV (J) 27(20°C)---Q345B(S355JR)
Allowable Deflection 0.5 ~1.0 Degree @ Operational Speed Yield Strength 355 MPa
Galvanization Standard Of Steel Sections ISO 1461 Or ASTM A123 Bolts DIN7990, DIN931, DIN933
High Light

3 Legs Angle Lattice Tower

,

ASTM A572 Angle Lattice Tower
Leave a Message
Product Description

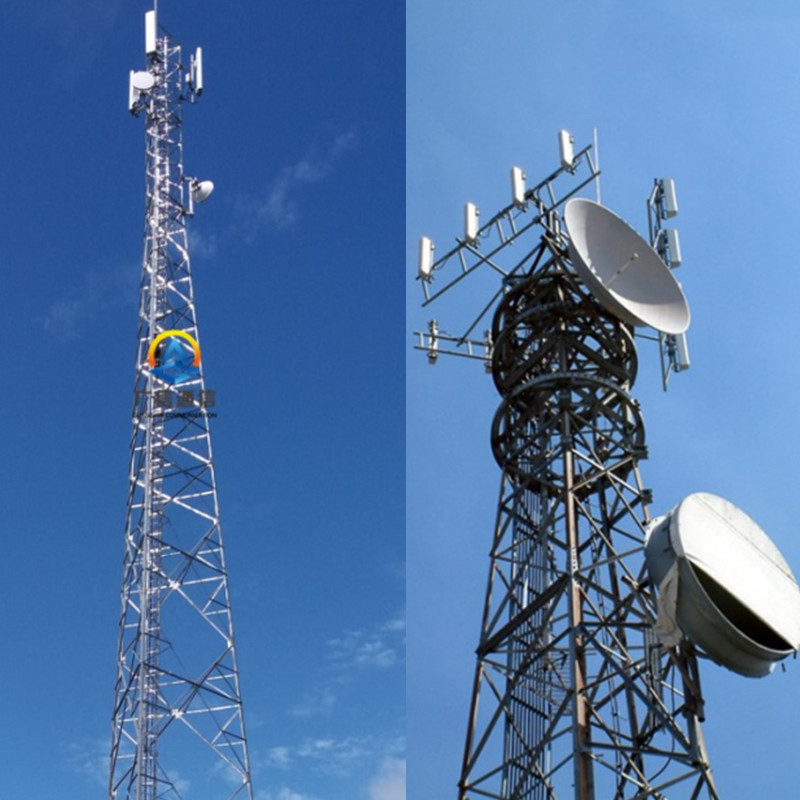

ASTM A572 Steel 3 Legs Angle Lattice Tower For Antenna Transmission



The Feature of Different Steel Tower Types:

1. Angle Steel: Made from individually bolted angle steel pieces, these Lattice towers and masts are ideally suited to larger towers. Angle steel is most commonly used for the construction of Electricity Transmission Towers.

2. Tubular Steel: Solid tube is slim for low visual impact and has high load carrying capabilities. Hollow tube is the strongest and lightest solution used for the tallest towers in the china.



3. Freestanding: Freestanding towers or truss towers are generally larger at the bottom than the top but require a smaller footprint than a guyed structure. The tallest in the world is the Kiev TV Tower, kehang at 385metres, the most famous being the Eiffel Tower, Paris



4. Guyed: Very tall, slim and the cheapest to construct but rely completely on guy wires to provide stability. Commonly used for TV broadcast antenna’s. A Partially Guyed tower is a free-standing tower with an additional guyed mast added to the top. Read more about guyed lattice towers





Specification of Communication Telecom Steel Tower Accessories:



Material Tubular Steel, Angle steel plates, Flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.




Customer Support Services

  • We re specialized in the production, design, installation and maintenance of beautification tower, bionic tree communications tower, anemometer tower, communication tower, telecommunication tower, single tube tower, etc.



  • We undertake the design, manufacturing and construction of all kinds of steel structure.



  • Our company has rich experience more than 20 years and has 10 senior engineers and five professional production lines.



  • Fast delivery time 20 days,high efficient supply ability 1000 tons monthly, so we are sure to deliver your goods strictly as you required and meet your order quantity to the fullest.
