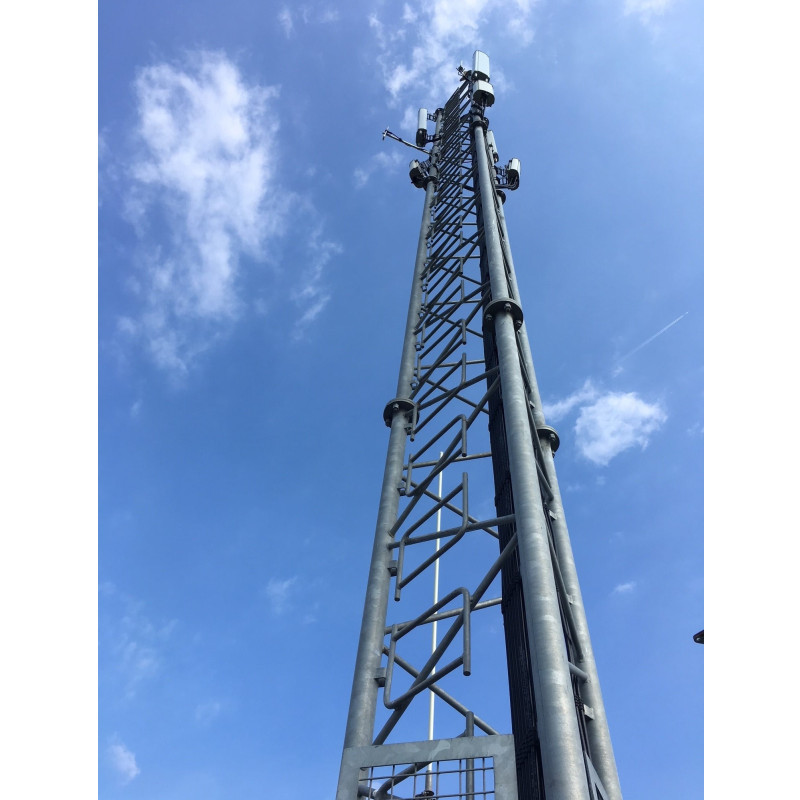

30m 3 Legs Telecommunication Steel Tower Tubular Flange Connection

  • 30m 3 Legs Telecommunication Steel Tower Tubular Flange Connection
Place of Origin Guangzhou
Brand Name Guangxin
Model Number GX-5666G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ISO9001:2008 SGS COC Product Name Telecommunication Steel Tower
Steel Structure HDG Lattice Tower Material EN10025: S355JR, S355J0,S355J2
Braces GB/T 700:Q235B Tower Type Self Supporting Vertical Tubular
Design Of Pole Against Earthquake Of 8 Grade Connection Type Parts For Connection Or Installation Will Be Provided
Allowable Deflection 0.5 ~1.0 Degree @ Operational Speed Impact Strength KV (J) 27(20°C)---Q345B(S355JR)
Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) Galvanization Standard Of Steel Sections ISO 1461 Or ASTM A123
Yield Strength 355 MPa Bolts DIN7990, DIN931, DIN933
High Light

3 Legs Telecommunication Steel Tower

,

30m Telecommunication Steel Tower
Leave a Message
Product Description

30m 3 Legs Telecommunication Steel Tower Tubular Flange Connection





Telecom steel tower classification:



1. Classification by material: angle steel towers, tublar steel towers.



2. According to location: ground tower, roof tower;



3. Communication steel Lattice tower height: refers to the vertical distance from the base of the tower foot to the installation location of the lightning rod;



4. Wind pressure requirement: Determine the wind pressure according to W0=V02/1600 by taking the average maximum wind speed V0 (m/s) of the 10-year once-in-tact 10-minute period of the local comparatively empty ground and flat surface with a height of 10m. kN/m2



5. Full-load wind load: Calculate based on the number of antenna layers and the number of microwave antennas per layer, and the antenna diameter in a specific project



6. The types of communication towers of our company: general communication towers, beautification communication towers, bionic tree

communication towers, and landscape communication towers.



Specification of Communication Telecom Steel Tower Accessories:



Material Tubular Steel, Angle steel plates, Flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.




The Feature of Different Tower Types:

1. Angle Steel: Made from individually bolted angle steel pieces, these Lattice towers and masts are ideally suited to larger towers. Angle steel is most commonly used for the construction of Electricity Transmission Towers.

2. Tubular Steel: Solid tube is slim for low visual impact and has high load carrying capabilities. Hollow tube is the strongest and lightest solution used for the tallest towers in the china.



3. Guyed: Very tall, slim and the cheapest to construct but rely completely on guy wires to provide stability. Commonly used for TV broadcast antenna’s. A Partially Guyed tower is a free-standing tower with an additional guyed mast added to the top. Read more about guyed lattice towers
