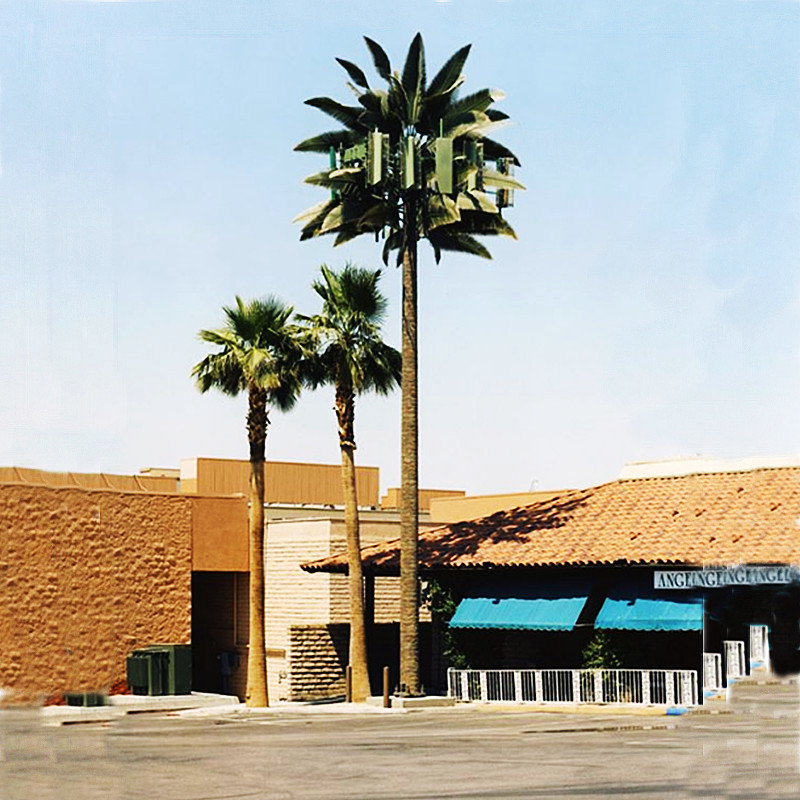

Network Antenna Steel Monopole Cellular Tree Towers 10m Height

  • Network Antenna Steel Monopole Cellular Tree Towers 10m Height
  • Network Antenna Steel Monopole Cellular Tree Towers 10m Height
Place of Origin Guangzhou, China
Brand Name GUANGXIN
Certification ISO9001
Model Number GX-1007
Minimum Order Quantity 1 set
Price USD20000 per set
Packaging Details wooden pallet and cartons
Delivery Time 20-25 days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 100 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name China Network Antenna Steel Monopole Cellular Tree Towers Material Galvanized Steel Q235B Trunk, Plastic Fiber Leaf
Height 10-40m Type Antenna Tower
Lifespan 50 Years Design Of Pole Against Earthquake Of 8 Grade
Warranty 5 Years Wind Load Up To 250 Km/h
Steel Grade GB/T1591:Q345B Applications Camouflaged Communication Antenna Station, Landscaping
High Light

Steel Monopole Cellular Tree Towers

,

10m Height Cellular Tree Towers
Leave a Message
Product Description

China Network Antenna Steel Monopole Cellular Tree Towers







Specifications of Cellular Tree Tower:



Descriptions Artificial palm tree Steel pole for landscaping and mounting communication antennas, microwaves, RRUs etc. as camouflaged telecom tower
HS Code 7308900000
Material Weldable structural carbon steel
Grade GB Q235, Q345, BS4360, ASTM A36 etc.
Yield Strength 235-355MPa
Height 5m to 50m or other specified height
Thickness 4mm to 20mm, depending on height of pole.
Pole Shape Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc.
Diameter or Dimensions Subject to height of pole and required mechanical properties.
Design Single, dual or multiple platforms and brackets
Surface Finish Hot dip galvanization plus bionic cortex
Galvanization 65-100 Microns
Cortex and leaves fiberglass and polymer resin
Color artificial palm green leaves and brown cortex
Applications landscaping and GSM, radio, 3G/4G/5G microcell, macrocell and other communication signal transmission and distribution.



















































Network Antenna Steel Monopole Cellular Tree Towers 10m Height 0

Network Antenna Steel Monopole Cellular Tree Towers 10m Height 1

ODM 30m Artificial Palm Tree Disguised Cell Towers Galvanized Steel Pipe



Details of artificial palm tree: leaves/fronds/branches, trunk and frame



Camouflaged telecommunication tree tower: It is also a kind of artificial trees or Bionic tree tower, it takes of synthetic resin and advanced chemical raw materials as sculpture substrate for tree trunk, the tree section, barks etc. Some artificial leaves were installed on its top. Inner side is HDG( hot dip galvanized ) steel structure. Bottom is steel plate, which are locked by anchor bolts. It's life-like compare to natural trees.

The base plated is locked by anchor bolts (1.5M---2M of the anchor bolts )

Camouflaged Tree Tower is also a kind of cartificial trees of Bionic tree tower, on base like a real one, plus the meticulous design, when placed among the real trees in sightseeing area, park and square, it will be a part of the nature.
Features:
1. Exquisite structure and gorgeous appearance.
2. Strong structural stability and long working life.
3. Small area covering and great economic effect.

4. Camouflaged pine tree tower with antenna mount poles.

5. All kinds of bionic tree tower with vivid barks.

6. It has no fading for 5 years, no cracking, no peeling effect, and recoatability.

7. The base plated is locked by anchor bolts (1.5M---2M of the anchor bolts )

8. The bionic tower is to coordinate the communication tower with the surrounding natural environment, effectively solving the problem of difficult construction in scenic spots and other places.

9. The product is made of synthetic resin as a binder, supplemented with high-grade chemical raw materials to make plastic objects, used as trees.

10. Sculpture bases such as rods, tree branches, bark, and roots are sprayed with advanced acrylic paint to modify the surface and enhance durability.



FAQ



1. Is the tower's structure unitary?
No, we can design and produce it as customer's request.


2. Manufacturer or trade company?
We are manufacturer and have own factory, and welcome to visit our factory.


3. Delivery time?
Usually, within 20 days. And we produce and ship product according to buyer’s request.


4. How long does the service life for steel tower?
We can assured more than 30 years’ service life.


5. For assembly, is it very complex and is there a assembly book or guidance?
We will provide assembly drawing with shipping the cargo.
