International Standard Communication Tower Made From Galvanized Steel Pipes BS729

  • International Standard Communication Tower Made From Galvanized Steel Pipes BS729
  • International Standard Communication Tower Made From Galvanized Steel Pipes BS729
  • International Standard Communication Tower Made From Galvanized Steel Pipes BS729
Place of Origin Guangzhou
Certification ISO9001
Model Number SST-0435
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Steel bands or wires by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Name Guangxin Product Name Hot-dip Galvanized Steel Mobile Communication Tower
Hot-dip Galvanization ISO 1461 2009, ASTM A123, BS729 Yield Strength (Fy) 235-355MPa
Design Wind Speed 30-50m/s, Can Customized As Buyer's Requirements Tower Type Tubular Tower, Mono Pole Tower, Angle Towers
Design Wind Load 0.35-1.2KN/M² Work Platform Height And Quantity Up To Clients
Connection Type Nuts & Bolts Service Life 50 Years
High Light

Galvanized Steel Pipes Communication Tower

,

BS729 Communication Tower
Leave a Message
Product Description

International Standard ISO Certified Communication Tower Made from Galvanized Steel Pipes and Angle Steel Plates



As a professional manufacturer of all kinds of steel  towers and poles, Guangzhou Guangxin Communication Equipment Co.,Ltd. is a large scale manufacturer of telecommunications and traffic facilities, including telecommunication monopoles and lattice towers, street light poles and towers, power gride&electricity wire towers, lighting protection poles, artificial bionic tree for camouflaged telecommunication, CCTV camera poles and high masts, guideboards poles, billboards and led display gantry frames, ETC toll gate frames and other steelworks. Many projects we supplies have won parter reputation, awards and approvals from the users and customers. We are supplying the steelworks for 5G infrastructures, smart city and safe traffic facilities, civil contruction and developing many other fields.



Range of Our Products



1, Self-supporting galvanized steel lattice telecom towers

2, Self-supporting galvanized steel mono poles and camouflaged monopole towers

3, Guyed Steel towers

4, Artificial tree camouflaged and landscaping towers

5, Street light poles

6, Smart light poles

7, Traffic signal light poles and CCTV surveillance camera poles, cantilevers and gantry frames

8, Solar panel photovoltaic system steel support structures

9, Warehouse steel structures and other building structures.



About Telecommunicatons Towers



Self supporting galvanized steel lattice tower or mast usually is designed as 3-legged or 4-legged lattice tower, and its material is steel pipes or angle steel plates, which are called tubular steel tower and angle steel tower. They are both delivered by independent members and then assembled by nuts and bolts when erecting. All the members of towers are prefabricated as per assemnly drawings, coming with connecting plates and bolting holes.



Features of Mobile Telecom Towers:



1. All the steel tower parts are prefabricated for ready installation, easy for quick erection.
2. All towers are designed and specified according to the geological survery reports and wind speed on the site.
3. All towers are fabricated according to customer's drawings and requirements.

4. All towers are made with climbing ladder, rest and work platforms, earthing leads, lightning rod and anti-fall system.

5. All tower members are finished with hot dip galvanization, excellent anti-corrosion and protection.

6. Tower members are delivered by independent parts, easy for transportation on site.

7, Made from high quality structural low carbon mild steel with hot dip galvanized finish, the telecom towers have more than 20 years of lifespan

International Standard Communication Tower Made From Galvanized Steel Pipes BS729 0

                                3-legged Tubular Steel Radio Microwave Communication Tower



Specification of Mobile Communication Tower:



Material Tubular Steel, Angle steel plates, flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.




International Standard Communication Tower Made From Galvanized Steel Pipes BS729 1

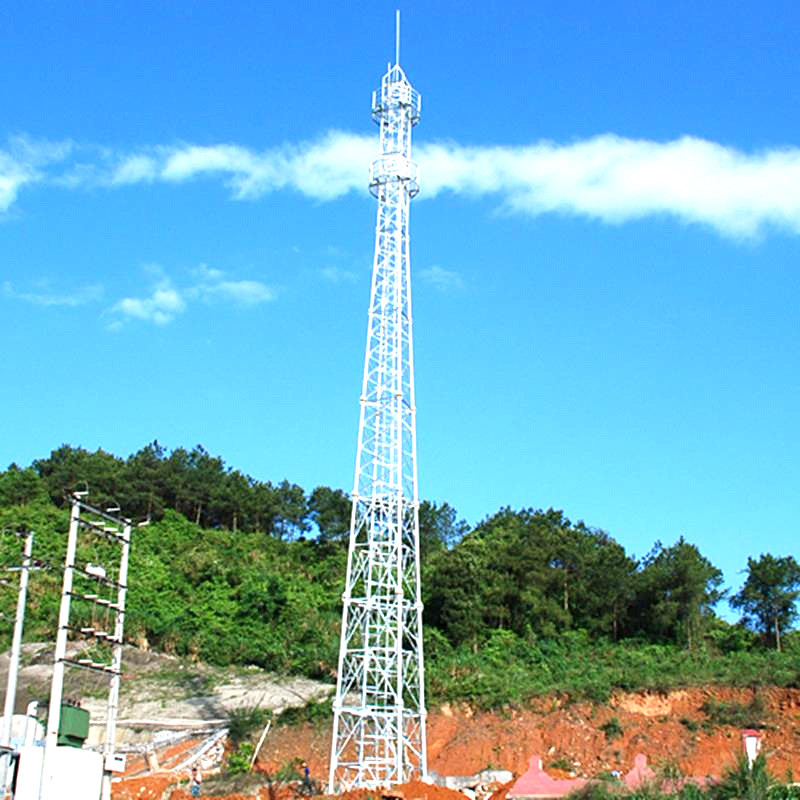

                                      4-legged self-support Steel Lattice Tower erection





Applications of Steel Towers



1, GSM, 2G/4G/5G cellular Mobile communications antennas mounting and telecom signal transmission tower.

2, FM, AM, VHF radio transmission tower.

3, TV station tower

4, Electrical power transmission and distribution pylon

5, Millitary watch tower

6, Radar Microwave tower etc.



Basic Procedures of Building A Telecom Tower



1, Site geologival investigation or survey to clasify terrain category and confirm it meets tower erection requirements

2, Design tower body and foundations

3, Test and specify the tower body and foundation by professional design and calculation software

4, Specify the tower and foundation dimensions and specifications of materials.

5, Prepare lofting and shop drawing of tower sections

6, Manufacture tower members according to the drawings and specifications.

7, Dig holes for the tower foundations and make a cement underlayer on the bottom

8, Make steel cage frames and anchorages for foundations

9, Make wooden molds for constructing concrete foundations

10, Set up grounding net with steel plates or rods around foundations.

11, Pour concrete and construct bottom blocks and pedestals

12, Dry and watering concrete foundations

13, Test the impact strength and make sure it meets the design specifications.

14, Fix tower footings to foundation pedestals and other tower members

15, Assemble tower sections and antenna brackets, ladder, rest and work platforms, lightning rod, grounding plates etc.

16, Set grouding of tower body and foundations, make sure at least 2 feet of tower must be connected with the ground net, lightning rod must be connected with grounding net through at least 2 foundations.

17, Test the straightness or verticality of tower

18, Complete if all specifications are confirmed.
