3 Or 4 Legs Angular Angle Telecommunication Tower 90m ASTM A123

  • 3 Or 4 Legs Angular Angle Telecommunication Tower 90m ASTM A123
Place of Origin Guangzhou
Brand Name Guangxin
Model Number GX-5671G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ISO9001:2008 SGS COC Product Name 3 Or 4 Legs Angular Angle Telecommunication Tower 90m
Steel Structure HDG Lattice Steel Tower Allowable Deflection 0.5 ~1.0 Degree @ Operational Speed
Galvanization Standard Of Steel Sections ISO 1461 Or ASTM A123 Bolts And Nuts Mainly ISO 898 Grade 6.8 And 8.8 Bolts
Design Of Pole Against Earthquake Of 8 Grade Grade Of Bolts And Nuts Grade 4.8, 6.8, 8.8
Design Loading As Per Requirement And Specification By Clients Worldwide Maximum Production Capacity 20,000 TON Per Annum
Ice Coating 5mm-10mm(different In Different Regions)
High Light

Angular Angle Telecommunication Tower

,

4 Legs Angular Angle Telecommunication Tower

,

90m Telecom Steel Tower
Leave a Message
Product Description

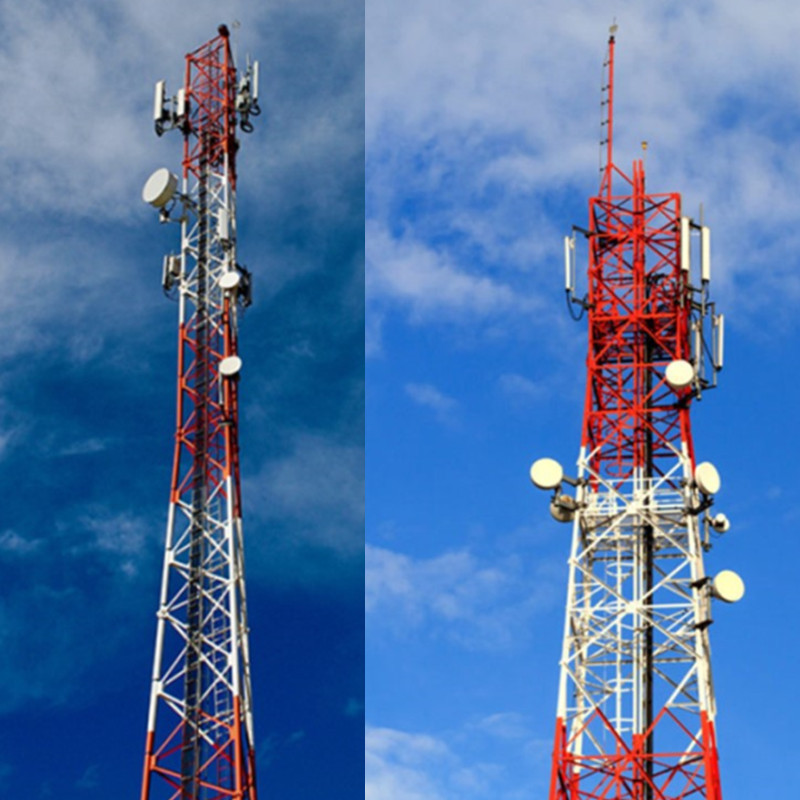

3 or 4 Legs Angular Angle Telecommunication Tower 90m







Specification of Angular Angle Tower Accessories:



Material Tubular Steel, Angle steel plates, Flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.






Angular Angle Tower Accessories:



1.  Antenna Holder: 3 antenna mounts per base tower antenna mount.



2. Beacon lights: The position, quantity configuration and height standard of the company’s aviation obstruction lights must comply with the requirements of the relevant department of the Ministry of National Defense or the Civil Aviation Bureau of the specific project. Normally, 45 meters and below: One buoy light; 50 meters to 90 meters: 3 buoy lights; 100 meters: 5 buoy lights.



3. Outdoor cabling racks: The cable towers shall be erected on the side of the machine room with a width of 40 cm. Each base tower is equipped with 2 cabling racks, each paying 3 meters (each lane rack contains a cabling rack support).



4. Lightning rod: It shall be connected with the downlead through reliable welding.



5. Foundation: Ensure the earthquake resistance, wind resistance and load of the steel Lattice tower.









What is the Antenna lattice tower?



5G Cell Phone Antenna Tower is a kind of signal transmission tower, also called signal transmission tower or signal tower, main function support signal, support for signal transmission antenna, used for mobile, Unicom, telecommunication, traffic satellite positioning system (GPS) and other communications departments.



Made from individually bolted angle steel pieces, these Lattice towers and masts are ideally suited to larger towers. Angle steel is most commonly used for the construction of Electricity Transmission Towers
