S355J0 60m Mounting Tubular Steel Tower With Antenna Beacon Light

  • S355J0 60m Mounting Tubular Steel Tower With Antenna Beacon Light
Place of Origin Guangzhou
Brand Name Guangxin
Model Number GX-5667G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ISO9001:2008 SGS COC Product Name 60m Mounting Tubular Steel Tower
Steel Structure HDG Lattice Steel Tower Material EN10025: S355JR, S355J0,S355J2
Braces GB/T 700:Q235B Allowable Deflection 0.5 ~1.0 Degree @ Operational Speed
Design Wind Speed 35/210kph Impact Strength KV (J) 27(20°C)---Q345B(S355JR)
Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) Galvanization Standard Of Steel Sections ISO 1461 Or ASTM A123
Design Of Pole Against Earthquake Of 8 Grade Design Loading As Per Requirement And Specification By Clients Worldwide
Bolts And Nuts Mainly ISO 898 Grade 6.8 And 8.8 Bolts
High Light

60m Mounting Tubular Steel Tower

,

S355J0 Tubular Steel Tower
Leave a Message
Product Description

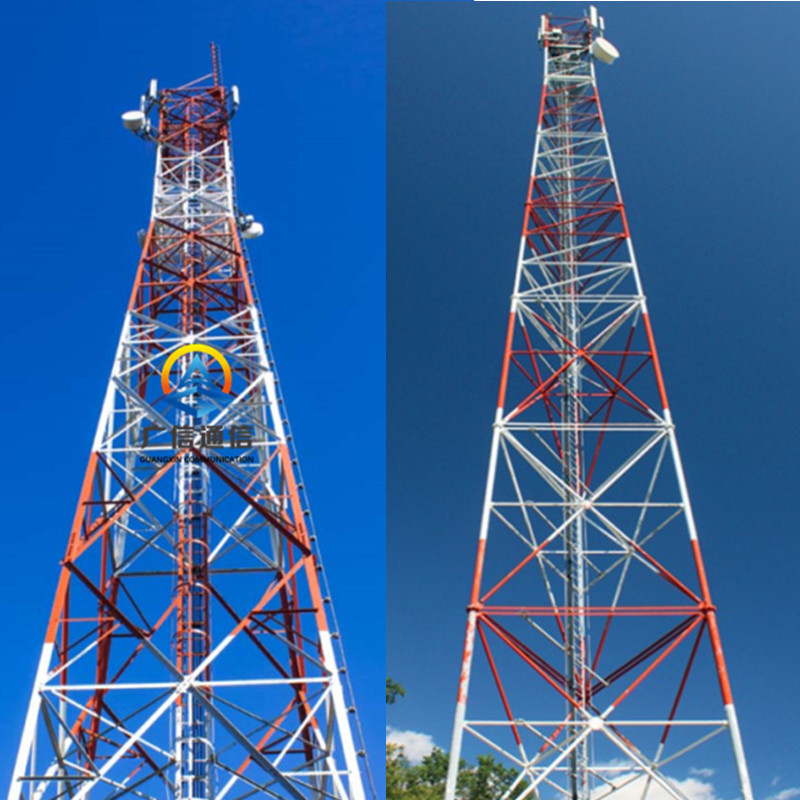

60m Mounting Tubular Steel Tower with Antenna Beacon Light





The feature of Steel Angular Tower:



1. Communication steel Lattice tower height: refers to the vertical distance from the base of the tower foot to the installation location of the lightning rod;



2. Antenna Holder: 3 antenna mounts per base tower antenna mount.



3. Wind pressure requirement: Determine the wind pressure according to W0=V02/1600 by taking the average maximum wind speed V0 (m/s) of the 10-year once-in-tact 10-minute period of the local comparatively empty ground and flat surface with a height of 10m. kN/m2;



4. Full-load wind load: Calculate based on the number of antenna layers and the number of microwave antennas per layer, and the antenna diameter in a specific project;



5. Communication tower flexion angle: less than 1 degree;



6. Beacon lights: The position, quantity configuration and height standard of the company’s aviation obstruction lights must comply with the requirements of the relevant department of the Ministry of National Defense or the Civil Aviation Bureau of the specific project. Normally, 45 meters and below: One buoy light; 50 meters to 90 meters: 3 buoy lights; 100 meters: 5 buoy lights.



7. Antenna Holder: 3 antenna mounts per base tower antenna mount.



8. Beacon lights: The position, quantity configuration and height standard of the company’s aviation obstruction lights must comply with the requirements of the relevant department of the Ministry of National Defense or the Civil Aviation Bureau of the specific project. Normally, 45 meters and below: One buoy light; 50 meters to 90 meters: 3 buoy lights; 100 meters: 5 buoy lights.



9. Outdoor cabling racks: The cable towers shall be erected on the side of the machine room with a width of 40 cm. Each base tower is equipped with 2 cabling racks, each paying 3 meters (each lane rack contains a cabling rack support).







Specification of Steel Angular Tower Accessories:



Material Tubular Steel, Angle steel plates, Flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.






FAQ:



1. Is the tower's structure unitary?
No, we can design and produce it as customer's request.


2. Manufacturer or trade company?
We are manufacturer and have own factory, and welcome to visit our factory.


3. Delivery time?
Usually, within 20 days. And we produce and ship product according to buyer’s request.


4. How long does the service life for steel tower?
We can assured more than 30 years’ service life.


5. For assembly, is it very complex and is there a assembly book or guidance?
We will provide assembly drawing with shipping the cargo.
