50m/s Self Support Galvanized Steel Radio Tower Communication Lattice Mast

  • 50m/s Self Support Galvanized Steel Radio Tower Communication Lattice Mast
  • 50m/s Self Support Galvanized Steel Radio Tower Communication Lattice Mast
Place of Origin Guangzhou
Certification ISO9001
Model Number SST-138
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Steel bands or wires by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Name Guangxin Product Name Hot-dip Galvanized Steel Mobile Phone Tower
Hot-dip Galvanization ISO 1461 2009, ASTM A123, BS729 Yield Strength (Fy) 235-355MPa
Design Wind Speed 30-50m/s, Can Customized As Buyer's Requirements Tower Type Tubular Tower, Mono Pole Tower, Angle Towers
Design Wind Load 0.35-1.2KN/M² Work Platform Height And Quantity Up To Clients
Connection Type Nuts & Bolts Service Life 50 Years
High Light

Galvanized Steel Radio Tower

,

Self Support Galvanized Steel Radio Tower

,

Lattice Mast Telecom Steel Tower
Leave a Message
Product Description

Self-support Galvanized Steel Radio Tower Communication Lattice Mast

Self-support Galvanized Steel Radio Communication 30m to 70m

3-legged or 4-legged Self-support Lattice Telecom Mast





Guangzhou Guangxin Communication Equipment Co.,Ltd. is a large scale manufacturer of telecommunications and traffic infrastructures, including telecommunications monopoles and towers, street light poles and towers, power gride & electricity transmission towers, lighting protection poles, artificial bionic tree camouflaged antenna towers, CCTV camera poles and high masts, guideboards poles, billboards and led display gantry frames, ETC toll gate frames and other steelworks. Many projects we supplies have won parter reputation, awards and approvals from the users and customers. We are supplying the steelworks for 5G infrastructures, smart city and safe traffic facilities, civil contruction and developing many other fields.





Technical Specifications of Galvanized Steel Materials and Telecom Tower



Galvanized Steel Telecommunications Tower
1. Material
Weldable Structural Low Carbon Steel Plates or Tubes
2. Grade Main structure Braces
GB/T1591:Q345B GB/T 700:Q235B
ASTM A572 Gr50 ASTM A36
EN10025: S355JR, S355J0,S355J2 EN10025: S235JR, S235J0,S235J2
3. Design Wind Speed Up to 250 km/h
4. Allowable deflection 0.5 ~1.0 degree @ operational speed
5. Tension strength 470~630 MPa 360~510 MPa
6. Yield strength 355 MPa 235 MPa
7. Elongation (%) 24 20
8. Impact strength KV (J) 27(20°C)---Q345B(S355JR) 27(20°C)---Q235B(S235JR)

Bolts & Nuts
9. Grade Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts ISO 898-1
10.2 Nuts ISO 898-2
10.3 Washers ISO 6507-1
11. Standards for Dimensions
11.1 Bolts DIN7990, DIN931, DIN933
11.2 Nuts ISO4032, ISO4034
11.3 Washers DIN7989, DIN127B, ISO7091
Welding
12. Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
13. Standard AWS D1.1
Galvanizing
14. Galvanization standard of steel sections ISO 1461 or ASTM A123
15. Galvanization standard of bolts and nuts ISO 1461 or ASTM A153





Applications of Steel Towers



1, GSM, 2G/4G/5G cellular Mobile communications antennas mounting and telecom signal transmission tower.

2, FM, AM, VHF radio transmission tower.

3, TV station tower

4, Electrical power transmission and distribution pylon

5, Millitary watch tower

6, Radar Microwave tower etc.

Features of Mobile Communication Tower:



1. Small coefficient of wind load, strong wind resistance.
2. Save land resource, convenient location.
3. Convenient transportation and installation.

4. According to the customers’ choice, the ladder can be placed inside or outside.

5. With advanced international design concept and calculation method, tower slope can be adjusted in accordance with geology and climate.

6. Convenient and safe to install, small area covering, and easy to select site.

50m/s Self Support Galvanized Steel Radio Tower Communication Lattice Mast 0

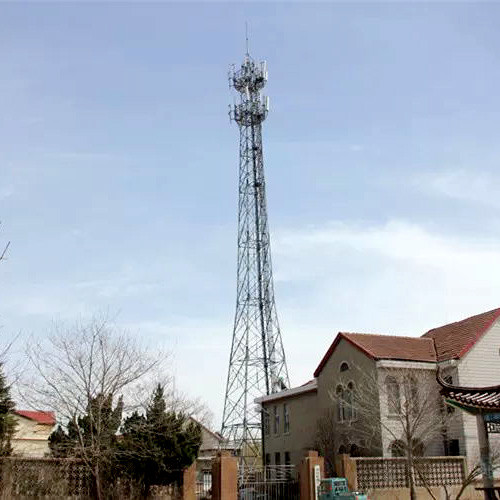

                                45m Galvanized Steel telecom tower erected in Philippines





Specification of Mobile Communication Tower:



Material Tubular Steel, Angle steel plates, flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.

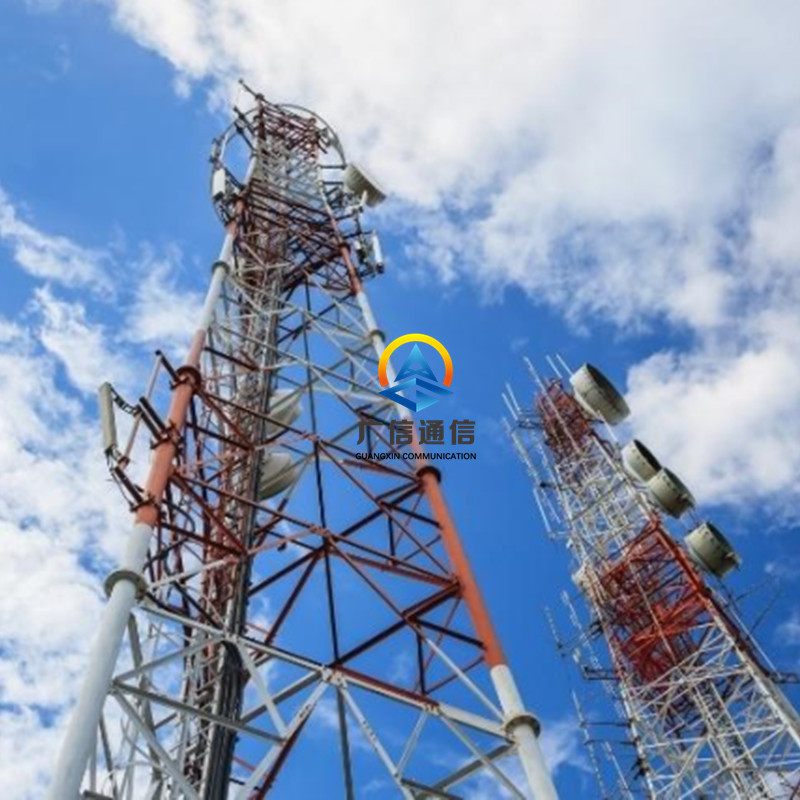

50m/s Self Support Galvanized Steel Radio Tower Communication Lattice Mast 1

                                                 RDS tower foundation
