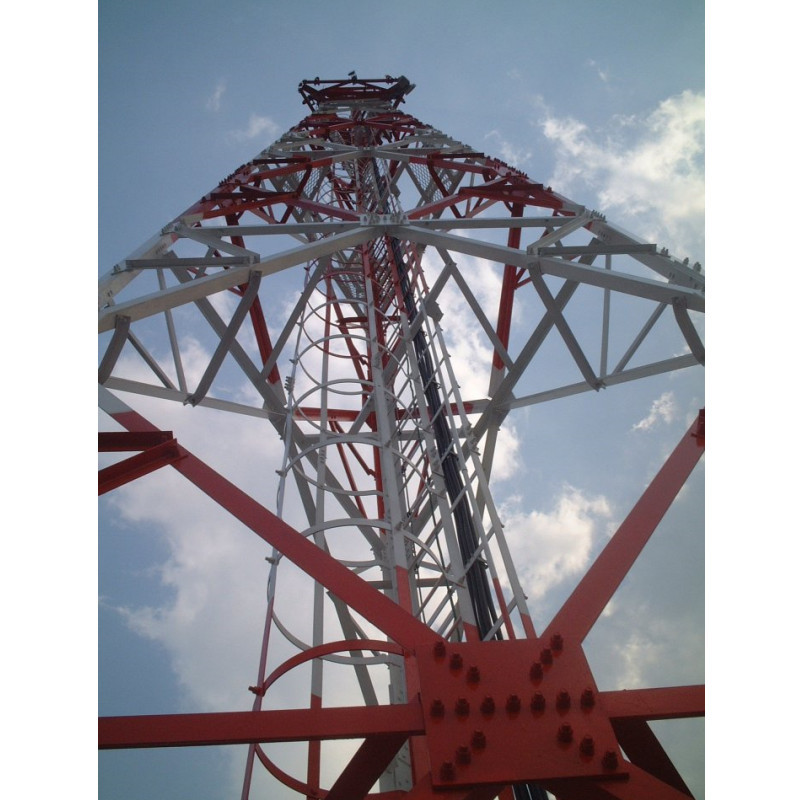

3 Legs Angular Steel Communication Tower 45m 60m 70m 80m
| Place of Origin | Guangzhou |
|---|---|
| Brand Name | Guangxin |
| Certification | ISO9001 |
| Model Number | GX-5657G |
| Minimum Order Quantity | 1set |
| Price | USD1880-2100 |
| Packaging Details | Cotton sheets or cloth package by bundle |
| Delivery Time | 20-30days |
| Payment Terms | Western Union, L/C, T/T |
| Supply Ability | 300ton/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 3 Legs Angular Steel Communication Tower 45m | Steel Structure | HDG Lattice Steel Tower |
|---|---|---|---|
| Material | Steel Q355B(GB/T 1591) | Hot-dip Galvanization | ISO 1461 2009, ASTM A123 |
| Tension Strength (Mpa) | 360~510 | Design Wind Speed | 30/220kph |
| Tower Type | Self Standing Angular / Tubular | Connection Type | Parts For Connection Or Installation Will Be Provided |
| Design Of Pole | Against Earthquake Of 8 Grade | Warranty | 10 Years |
| Tower Lifespan | 50 Years | ||
| High Light | 3 Legs Angular Steel Communication Tower,80m Steel Communication Tower,60m Telecom Steel Tower |
||
Product Description
3 Legs Angular Steel Communication Tower 45m 60m 70m 80m
Feature of steel communication tower:
Site One design, manufacture and install freestanding lattice towers and masts across the CHINA. Our Angle Steel or Tubular Steel Lattice Towers are typically used for broadcast, mobile, microwave, radar, wind measurement and wireless broadband. Choose from our standard solutions (up to 80m) or use our design to manufacture a bespoke solution. We offer full project management services from site acquisition & planning permission to foundations and installation. Our experienced team of managers, designers, fabricators, and installers will look after the entire process from start to finish.
Angular steel tower is made from individually bolted angle steel pieces, these Lattice towers and masts are ideally suited to larger towers. Angle steel is most commonly used for the construction of Electricity Transmission Towers.
Specification of steel communication tower:
| Material | Tubular Steel, Angle steel plates, Flat steel plate |
| Steel Type | Weldable low carbon structural steel |
| Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
| Yield Strength | Fy≥235MPa |
| Tensile Strength | Fu≥400MPa |
| Elongation | σ≥20% |
| Surface Finish | Hot dip galvanization |
| Galvanized layer | T≥65μm |
| Height | 20m to 100m, customized to requests |
| Design | 4 legs self-supporting or free standing lattice tower |
| Structure | 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices. |
| Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
| Fixing/Fastening | Bolts and nuts, connecting plates |
| Configuration | Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc. |
| Wind Load | 0.35-1.0kN/sqm |
| Lifespan | 20-50 years |
| Warranty | 5 years |
| Applications | GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations. |
What is the Communication lattice tower?
Communication Tower Product Description:
Communication tower is a kind of signal transmission tower, also called signal transmission tower or signal tower, main function support signal, support for signal transmission antenna, used for mobile, Unicom, telecommunication, traffic satellite positioning system (GPS) and other communications departments.
Communication tower product classification:
a) Classification by material: angle steel towers, steel pipe towers.
b) Classification by structure: four-posted angle steel towers, three-column steel tube towers, single-tube towers (single tube towers), and pull-line towers.
c) According to the support methods: self-standing towers, pull-line towers;
d) According to location: ground tower, roof tower;
e) The types of communication towers of our company: general communication towers, beautification communication towers, bionic tree communication towers, and landscape communication towers.
