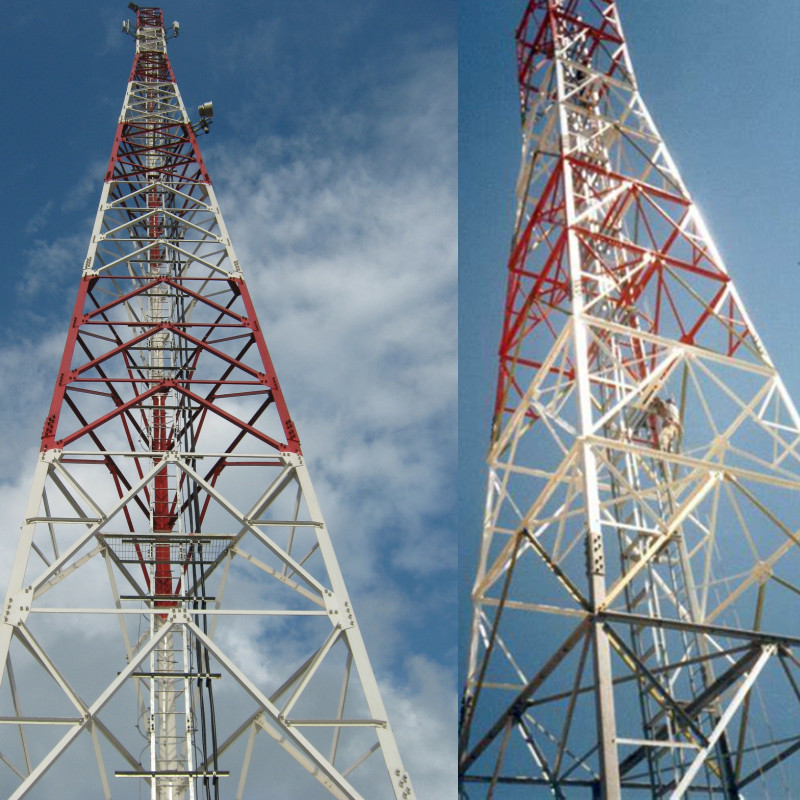

Angular Steel Telecom Antenna Tower 3 Legs 4 Legs Custom Height
| Place of Origin | Guangzhou |
|---|---|
| Brand Name | Guangxin |
| Certification | ISO9001 |
| Model Number | GX-565G |
| Minimum Order Quantity | 1set |
| Price | USD1880-2100 |
| Packaging Details | Cotton sheets or cloth package by bundle |
| Delivery Time | 20-30days |
| Payment Terms | Western Union, L/C, T/T |
| Supply Ability | 300ton/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Angular Steel Telecom Antenna Tower 3 Legs 4 Legs | Material | Steel Q355B(GB/T 1591) |
|---|---|---|---|
| Hot-dip Galvanization | ISO 1461 2009, ASTM A123 | Steel Structure | HDG Lattice Tower |
| Design Of Pole | Against Earthquake Of 8 Grade | Tension Strength (Mpa) | 360~510 |
| Design Wind Speed | 80/220kph | Connection Type | Nuts & Bolts |
| Tower Type | 3 Legs 4 Legs Angular / Tubular | Shipping Port | Huangpu Or Yantian/Shekou |
| High Light | Angular Steel Telecom Antenna Tower,4 Legs Telecom Antenna Tower,Telecom Antenna Tower 3 Legs |
||
Product Description
Angular Steel Telecom Antenna Tower 3 Legs 4 Legs
The communication tower belongs to a type of signal transmission tower, also called a signal transmission tower or a signal tower. The main function supports signal transmission and supports the signal transmitting antenna. Uses mobile/unicom/traffic satellite positioning system (GPS) and other communication departments. Our daily life is inseparable from the communication tower, so what is the installation specification of the communication tower? Let’s talk about it in detail. Communication tower installation specification: The tower design communication tower has passed the trial. The tower design communication tower has been accepted. The company is fully equipped with assembly records. When the communication tower is installed, the tools must be complete, and the engineers and field operators need to be in place. Before the communication tower is installed, the supervisors shall examine and approve the construction organization design or construction plan and safety measures of the underwriting unit, and the plans that do not meet the requirements shall be re-programmed or revised.
When installing the communication tower, it is necessary to ensure the stability of the structure and the permanent non-deformation of the material.
Specification of 50m telecom Tower:
| Material | Tubular Steel, Angle steel plates, Flat steel plate |
| Steel Type | Weldable low carbon structural steel |
| Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
| Yield Strength | Fy≥235MPa |
| Tensile Strength | Fu≥400MPa |
| Elongation | σ≥20% |
| Surface Finish | Hot dip galvanization |
| Galvanized layer | T≥65μm |
| Height | 20m to 100m, customized to requests |
| Design | 4 legs self-supporting or free standing lattice tower |
| Structure | 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices. |
| Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
| Fixing/Fastening | Bolts and nuts, connecting plates |
| Configuration | Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc. |
| Wind Load | 0.35-1.0kN/sqm |
| Lifespan | 20-50 years |
| Warranty | 5 years |
| Applications | GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations. |
Points to note about the antenna poles in the communication tower:
1. Grounding of the lightning rod: Use 4x40mm hot-dip galvanized flat iron, the welding surface should be sufficient, and the welding on all sides is required. The welding length of the flat iron and the wall lightning belt is not less than 100mm, and the anti-rust treatment is carried out.
2. The cement pier is cast straight, no honeycomb, no cracks, no ribs, and the outer brush is smooth and clean.
3. Waterproof treatment: If the floor is waterproof, the coil is waterproof. Waterproof materials such as asphalt can be used for cement and asphalt floors.
