60m 3 Legs Raido FM Telecom Steel Tower For Signal Transmitter

  • 60m 3 Legs Raido FM Telecom Steel Tower For Signal Transmitter
Place of Origin Guangzhou
Brand Name Guangxin
Certification ISO9001
Model Number GX-5638G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 60m 3 Legs Raido FM Steel Tower For Signal Transmitter Material Steel Q355B(GB/T 1591)
Hot-dip Galvanization ISO 1461 2009, ASTM A123 Steel Structure Steel Lattice Tower
Cable Wire Copper Grounding Wire Design Of Pole Against Earthquake Of 8 Grade
Design Wind Speed 80/220kph Tension Strength (Mpa) 360~510
Connection Type Nuts & Bolts Tower Type Tubular Lattice Tower
Shipping Port Huangpu Or Yantian/Shekou
High Light

Raido FM Telecom Steel Tower

,

3 Legs Telecom Steel Tower

,

60m Telecom Steel Tower
Leave a Message
Product Description

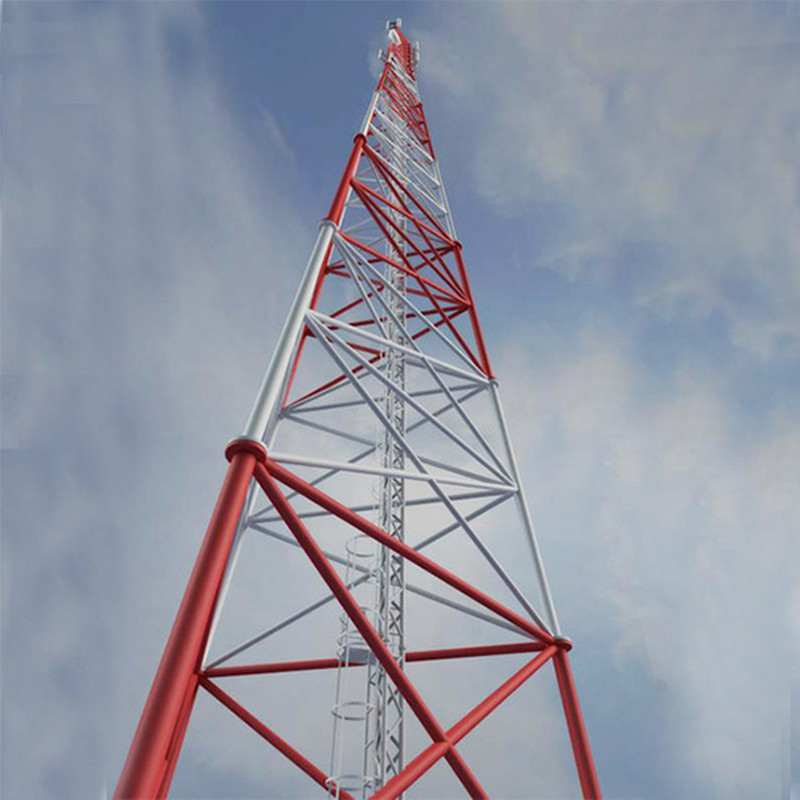

60m 3 Legs Raido FM Steel Tower For Signal Transmitter



Telecommunication 3 Legs tubular tower is designed to self supporting mobile networking, wireless communication, television antennas, and radio broadcasting.



Our Specifications of 3 legs steel tower:

✓ The most common heights manufactured are between 10m to 100m but may extend beyond that depending on the requirement.
✓ Design wind speed : Between 120 to 220 km/h
✓ Antenna Deflection Limit : Between 0.5 to 2 degree
✓ Structural steel design is calculated according most recent International Standard (EIA, Eurocode, NV65, BS)
✓ Materials specification will be:

• High Tensile Steel is according to EN10025. S355J0 or equivalent steel is according to EN10025. S235JR (equivalent to 43B), ASTM A36 grade 36 or equivalent.
• Bolts are according to DIN931 and 931.
• All structure Components are hot dip galvanized according to EN ISO 1461.
• Anchor bolts are according to DIN 976.



Specification of 3 Legs Steel Tower:



Material Tubular Steel, Angle steel plates, Flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.




Tower Basis of 3 legs steel tower :

✓ Tower main structure with tower bolts.
✓ Anchorage template with anchorage bolts.
✓ Vertical ladder with vertical cable tray support.
✓ Full standing working platform on top
✓ Resting platform every 15m



Optional accessories :

✓ Antenna brackets
✓ Safety cage
✓ Life line system
✓ Anti intrusion door
✓ Grounding and Lightning protection
✓ Obstruction light
✓ Markup / Painting
✓ Horizontal cable tray
