Microwave Transmission Guyed Lattice Tower 30m 35m 40m
| Place of Origin | Guangzhou |
|---|---|
| Brand Name | Guangxin |
| Certification | ISO9001 |
| Model Number | GX-5635G |
| Minimum Order Quantity | 1set |
| Price | USD1880-2100 |
| Packaging Details | Cotton sheets or cloth package by bundle |
| Delivery Time | 20-30days |
| Payment Terms | Western Union, L/C, T/T |
| Supply Ability | 300ton/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Microwave Transmission Guyed Lattice Tower | Material | Steel Q355B |
|---|---|---|---|
| Hot-dip Galvanization | ISO 1461 2009, ASTM A123 | Design Wind Pressure | 0.3-1.2KN/M² |
| Connection Type | Nuts & Bolts | Design Wind Speed | 30-50m/s, Can Customized As Buyer's Requirements |
| Steel Structure | Steel Lattice Tower | Design Of Pole | Against Earthquake Of 8 Grade |
| Tension Strength (Mpa) | 360~510 | Shipping Port | Huangpu Or Yantian/Shekou |
| Tower Type | Tubular Lattice Tower | ||
| High Light | Microwave Transmission Guyed Lattice Tower,Guyed Lattice Tower 30m,40m Telecom Steel Tower |
||
Product Description

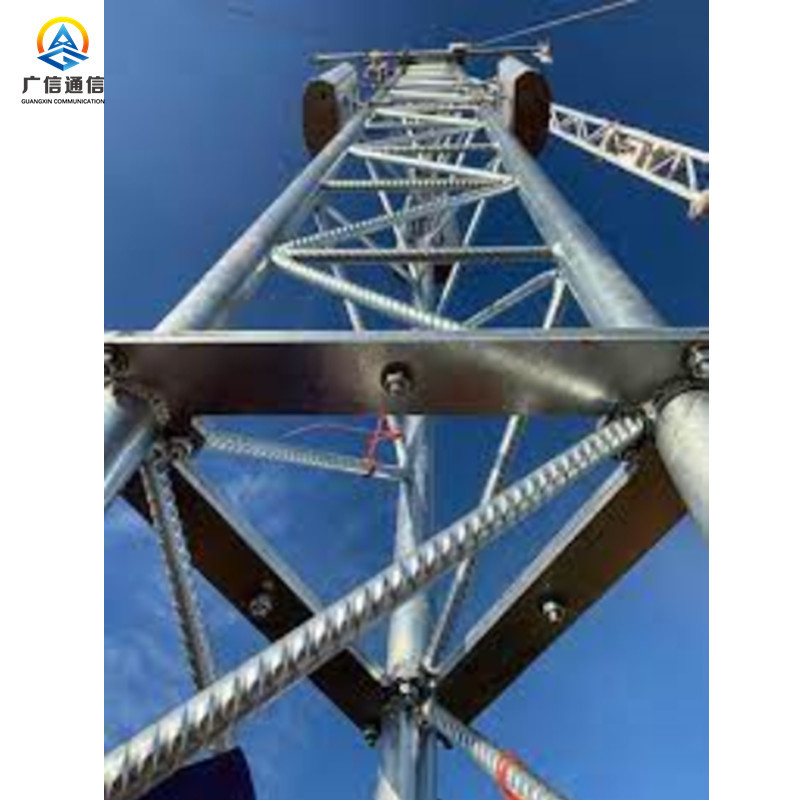

Microwave Transmission Guyed Lattice Tower 30m 35m 40m
Guyed tower has a novel appearance,and its biggest characteristic is strengthened by using steel guy wire. Guyed tower is a common type of communication tower which is economical and practical. It is lighter and cheaper than the others. It is very suitable for the geographical wide areas.
Specification of Guyed Lattice Tower:
| Material | Tubular Steel, Angle steel plates, Flat steel plate |
| Steel Type | Weldable low carbon structural steel |
| Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
| Yield Strength | Fy≥235MPa |
| Tensile Strength | Fu≥400MPa |
| Elongation | σ≥20% |
| Surface Finish | Hot dip galvanization |
| Galvanized layer | T≥65μm |
| Height | 20m to 100m, customized to requests |
| Design | 4 legs self-supporting or free standing lattice tower |
| Structure | 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices. |
| Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
| Fixing/Fastening | Bolts and nuts, connecting plates |
| Configuration | Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc. |
| Wind Load | 0.35-1.0kN/sqm |
| Lifespan | 20-50 years |
| Warranty | 5 years |
| Applications | GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations. |
FAQ:
1. Is the tower's structure unitary?
No, we can design and produce it as customer's request.
2. Manufacturer or trade company?
We are manufacturer and have own factory, and welcome to visit our factory.
3. Delivery time?
Usually, within 20 days. And we produce and ship product according to buyer’s request.
4. How long does the service life for steel tower?
We can assured more than 30 years’ service life.
5. For assembly, is it very complex and is there a assembly book or guidance?
We will provide assembly drawing with shipping the cargo.
