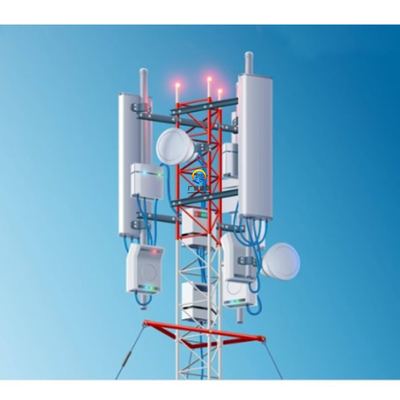

Small Triangle Telecom Tower FM Transmitting Radio Antenna
| Place of Origin | Guangzhou |
|---|---|
| Brand Name | Guangxin |
| Certification | ISO9001 |
| Model Number | GX-5631G |
| Minimum Order Quantity | 1set |
| Price | USD1880-2100 |
| Packaging Details | Cotton sheets or cloth package by bundle |
| Delivery Time | 20-30days |
| Payment Terms | Western Union, L/C, T/T |
| Supply Ability | 300ton/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Radio Antenna Small Triangle Telecom Tower | Material | Q235B Or Q355B |
|---|---|---|---|
| Hot-dip Galvanization | ISO 1461 2009, ASTM A123 | Design Wind Pressure | 0.3-1.2KN/M² |
| Work Platform | 1-3 Platform | Connection Type | Nuts & Bolts |
| Tower Type | Tubular Tower / Angular Tower | Design Wind Speed | 30-50m/s, Can Customized As Buyer's Requirements |
| Design Of Pole | Against Earthquake Of 8 Grade | Shipping Port | Huangpu Or Yantian/Shekou |
| High Light | Small Triangle Telecom Tower,FM Transmitting Telecom Tower,Radio Antenna Telecom Tower |
||
Product Description
FM Transmitting Radio Antenna Small Triangle Telecom Tower
Our Specifications of Network Internet Tower :
✓ The most common heights manufactured are between 10m to 110m but may extend beyond that depending on the requirement.
✓ Design wind speed : Between 120 to 220 km/h
✓ Antenna Deflection Limit : Between 0.5 to 2 degree
✓ Structural steel design is calculated according most recent International Standard (EIA, Eurocode, NV65, BS)
✓ Materials specification will be:
• High Tensile Steel is according to EN10025. S355J0 or equivalent steel is according to EN10025. S235JR (equivalent to 43B), ASTM A36 grade 36 or equivalent.
• Bolts are according to DIN931 and 931.
• All structure Components are hot dip galvanized according to EN ISO 1461.
• Anchor bolts are according to DIN 976.
Specification of Network Internet Tower:
| Material | Tubular Steel, Angle steel plates, Flat steel plate |
| Steel Type | Weldable low carbon structural steel |
| Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
| Yield Strength | Fy≥235MPa |
| Tensile Strength | Fu≥400MPa |
| Elongation | σ≥20% |
| Surface Finish | Hot dip galvanization |
| Galvanized layer | T≥65μm |
| Height | 20m to 100m, customized to requests |
| Design | 4 legs self-supporting or free standing lattice tower |
| Structure | 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices. |
| Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
| Fixing/Fastening | Bolts and nuts, connecting plates |
| Configuration | Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc. |
| Wind Load | 0.35-1.0kN/sqm |
| Lifespan | 20-50 years |
| Warranty | 5 years |
| Applications | GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations. |
Optional accessories :
✓ Antenna brackets
✓ Safety cage
✓ Life line system
✓ Anti intrusion door
✓ Grounding and Lightning protection
✓ Obstruction light
✓ Markup / Painting
✓ Horizontal cable tray
For new request, please send us complete specifications (Height, Wind load, Deflection, Antenna load, Standard, etc..) with accessories requested (feel free to indicate the quantity for each)
