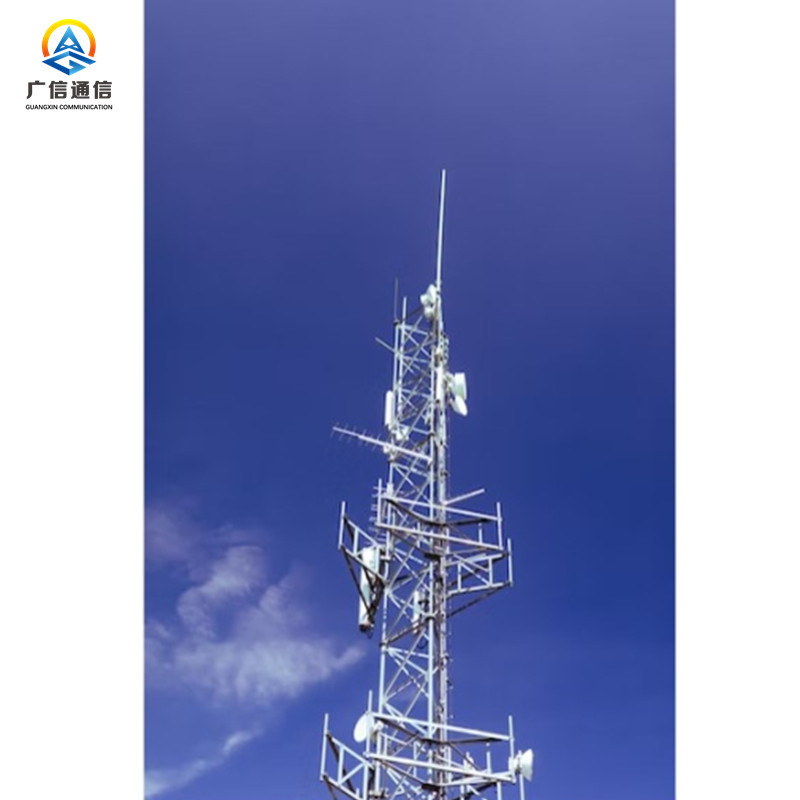

4G Wifi Network Internet Antenna Tower 15m 25m 30m Hot Dip Galvanization
| Place of Origin | Guangzhou |
|---|---|
| Brand Name | Guangxin |
| Certification | ISO9001 |
| Model Number | GX-5629G |
| Minimum Order Quantity | 1set |
| Price | USD1880-2100 |
| Packaging Details | Cotton sheets or cloth package by bundle |
| Delivery Time | 20-30days |
| Payment Terms | Western Union, L/C, T/T |
| Supply Ability | 300ton/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 4G Wifi Network Internet Antenna Tower 15m 25m 30m | Hot-dip Galvanization | ISO 1461 2009, ASTM A123 |
|---|---|---|---|
| Tower Type | Tube Towers, Mono Pole Tower, Angle Towers | Design Wind Pressure | 0.3-1.2KN/M² |
| Work Platform | Height And Quantity Up To Clients | Connection Type | Nuts & Bolts |
| Design Wind Speed | 30-50m/s, Can Customized As Buyer's Requirements | Place Of Original | Guangzhou |
| Design Of Pole | Against Earthquake Of 8 Grade | Shipping Port | Huangpu Or Yantian/Shekou |
| High Light | 4G Wifi Network Internet Antenna Tower,30m Internet Antenna Tower,Hot Dip Galvanization Internet Antenna Tower |
||
Product Description
4G Wifi Network Internet Antenna Tower 15m 25m 30m
Our Specifications of 4G Tower :
✓ The most common heights manufactured are between 10m to 110m but may extend beyond that depending on the requirement.
✓ Design wind speed : Between 120 to 220 km/h
✓ Antenna Deflection Limit : Between 0.5 to 2 degree
✓ Structural steel design is calculated according most recent International Standard (EIA, Eurocode, NV65, BS)
✓ Materials specification will be:
• High Tensile Steel is according to EN10025. S355J0 or equivalent steel is according to EN10025. S235JR (equivalent to 43B), ASTM A36 grade 36 or equivalent.
• Bolts are according to DIN931 and 931.
• All structure Components are hot dip galvanized according to EN ISO 1461.
• Anchor bolts are according to DIN 976.
Specification of 4G Tower:
| Material | Tubular Steel, Angle steel plates, Flat steel plate |
| Steel Type | Weldable low carbon structural steel |
| Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
| Yield Strength | Fy≥235MPa |
| Tensile Strength | Fu≥400MPa |
| Elongation | σ≥20% |
| Surface Finish | Hot dip galvanization |
| Galvanized layer | T≥65μm |
| Height | 20m to 100m, customized to requests |
| Design | 4 legs self-supporting or free standing lattice tower |
| Structure | 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices. |
| Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
| Fixing/Fastening | Bolts and nuts, connecting plates |
| Configuration | Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc. |
| Wind Load | 0.35-1.0kN/sqm |
| Lifespan | 20-50 years |
| Warranty | 5 years |
| Applications | GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations. |
Tower Basis :
✓ Tower main structure with tower bolts.
✓ Anchorage template with anchorage bolts.
✓ Vertical ladder with vertical cable tray support.
✓ Full standing working platform on top
✓ Resting platform every 15m
Customer Support Services
- We re specialized in the production, design, installation and maintenance of beautification tower, bionic tree communications tower, camouflaged antenna tower, communication tower, telecommunication tower, single tube tower, etc.
- We undertake the design, manufacturing and construction of all kinds of steel structure.
- Our company has rich experience more than 20 years and has 10 senior engineers and five professional production lines.
- Fast delivery time 20 days,high efficient supply ability 1000 tons monthly, so we are sure to deliver your goods strictly as you required and meet your order quantity to the fullest.
