34Dbi Antenna Lattice Telecom Tower 30m 50m Horizontal

  • 34Dbi Antenna Lattice Telecom Tower 30m 50m Horizontal
Place of Origin Guangzhou
Brand Name Guangxin
Certification ISO9001
Model Number GX-5638G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 34Dbi Antenna Lattice Telecom Tower 30m 50m Tower Type Tube Towers, Mono Pole Tower, Angle Towers
Design Wind Speed Up To 250 Km/h Design Wind Pressure 0.3-1.2KN/M²
Connection Type Nuts & Bolts Hot-dip Galvanization ISO 1461 2009, ASTM A123
Work Platform Height And Quantity Up To Clients Polarization Horizontal
Shipping Port Huangpu Or Yantian/Shekou Transportation By Sea To Clients Destination Port
High Light

Lattice Telecom Tower 30m

,

Horizontal Lattice Telecom Tower

,

Lattice Tower Telecom
Leave a Message
Product Description

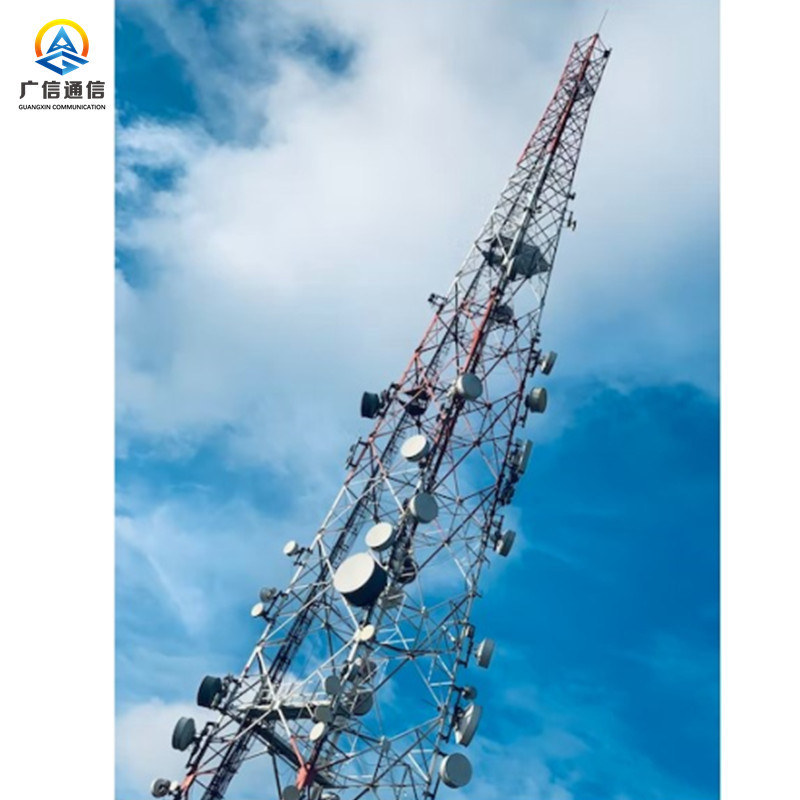

34Dbi Antenna Lattice Telecom Tower 30m 50m





Feature of Lattice Telecom Tower:


1 Tower height: (30m )
2 Wind speed: 150m/sec
3 Antenna load: 50kg (Max) - 3 units of Kathrein T2 Antenna
4 Antenna type and size: DVB-T2 Antenna
Our 30 Meter Guyed Tower Accessories Comprising of:
- Lightning Arrestor
- Tower Light
- Tower Foundation Materials, Anchor Rods,
9 Guyed Rope, 9 Strainer & Complete
Accessories:
- Tower painting (primer coat, middle coat and top coat)
Lightning Protection System comprising of:
- Copper Earth Wire, Copper Earth Rod and Copper Plate




Specification of Lattice Telecom Tower:



Material Tubular Steel, Angle steel plates, Flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.




Lattice Telecom Tower Accessories:



1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive Paint which include Primer, International Orange/Red and Ivory White


2. Aviation Light: 48V/220V Double Light and Single Light & Solar Light


3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down conductor or 25x3mm copper flat tape with clamps, and copper coated steel busbars or as per specified by clients.


4. Earthing System: Earthing Rod with copper clad steel strand cable and lugs etc. or as per specified by Clients.


5. ACDB as per specified by clients


6. Fencing: Palisade fence and wire mesh fence with razor wires and gate.


7. Fall arrest system: GB and CE certificate fall arrest system.


8. Optical Fiber Cable: as per specified by client


9. Generator: as per specified by client


10. Canopy and Generator Cage: as per specified by clients
