Sectoral Antenna Mobile Telecom Tower Spraying Color Against Earthquake
| Place of Origin | Guangzhou |
|---|---|
| Brand Name | Guangxin |
| Certification | ISO9001 |
| Model Number | GX-5636G |
| Minimum Order Quantity | 1set |
| Price | USD1880-2100 |
| Packaging Details | Cotton sheets or cloth package by bundle |
| Delivery Time | 20-30days |
| Payment Terms | Western Union, L/C, T/T |
| Supply Ability | 300ton/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Sectoral Antenna Mobile Telecom Tower Spraying Color | Tower Type | Tube Towers, Mono Pole Tower, Angle Towers |
|---|---|---|---|
| Design Wind Speed | 30-50m/s, Can Customized As Buyer's Requirements | Design Wind Pressure | 0.3-1.2KN/M² |
| Connection Type | Nuts & Bolts | Design Of Pole | Against Earthquake Of 8 Grade |
| Hot-dip Galvanization | ISO 1461 2009, ASTM A123 | Work Platform | Height And Quantity Up To Clients |
| Polarization | Horizontal | Shipping Port | Huangpu Or Yantian/Shekou |
| Highlight | Sectoral Antenna Mobile Telecom Tower,Against Earthquake Mobile Telecom Tower,ASTM A123 Mobile Telecom Tower |
||
Product Description

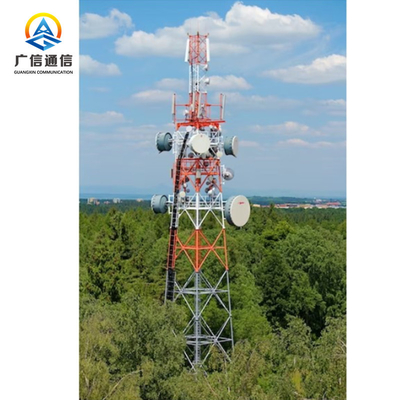

Sectoral Antenna Mobile Telecom Tower Spraying Color
Feature of Mobile Telecom Tower:
1 Tower height: (30m )
2 Wind speed: 150m/sec
3 Antenna load: 50kg (Max) - 3 units of Kathrein T2 Antenna
4 Antenna type and size: DVB-T2 Antenna
Our 30 Meter Guyed Tower Accessories Comprising of:
- Lightning Arrestor
- Tower Light
- Tower Foundation Materials, Anchor Rods,
9 Guyed Rope, 9 Strainer & Complete
Accessories:
- Tower painting (primer coat, middle coat and top coat)
Lightning Protection System comprising of:
- Copper Earth Wire, Copper Earth Rod and Copper Plate
Specification of Mobile Telecom Tower:
| Material | Tubular Steel, Angle steel plates, Flat steel plate |
| Steel Type | Weldable low carbon structural steel |
| Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
| Yield Strength | Fy≥235MPa |
| Tensile Strength | Fu≥400MPa |
| Elongation | σ≥20% |
| Surface Finish | Hot dip galvanization |
| Galvanized layer | T≥65μm |
| Height | 20m to 100m, customized to requests |
| Design | 4 legs self-supporting or free standing lattice tower |
| Structure | 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices. |
| Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
| Fixing/Fastening | Bolts and nuts, connecting plates |
| Configuration | Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc. |
| Wind Load | 0.35-1.0kN/sqm |
| Lifespan | 20-50 years |
| Warranty | 5 years |
| Applications | GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations. |
Our complete selection of Mobile Telecom Towers includes:
Self-supporting
Monopoles
Guyed towers
Custom-designed radar towers
Broadcast towers
Power transmission
