Galvanized Steel Tubular Guyed Telecommunication Tower Self Supporting

Place of Origin Guangzhou
Brand Name Guangxin
Certification ISO9001
Model Number GX-5636G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Guyed Telecommunication Tower Tower Type Tube Towers, Mono Pole Tower, Angle Towers
Design Wind Speed 30-50m/s, Can Customized As Buyer's Requirements Design Wind Pressure 0.3-1.2KN/M²
Connection Type Nuts & Bolts Hot-dip Galvanization ISO 1461 2009, ASTM A123
Design Of Pole Against Earthquake Of 8 Grade Work Platform Height And Quantity Up To Clients
Polarization Horizontal Grounding Via Mounting Parts
Shipping Port Huangpu Or Yantian/Shekou
High Light

Guyed Telecommunication Tower

,

Galvanized Steel Tubular Guyed Telecommunication Tower

,

Self Supporting Telecom Steel Tower

Leave a Message
Product Description

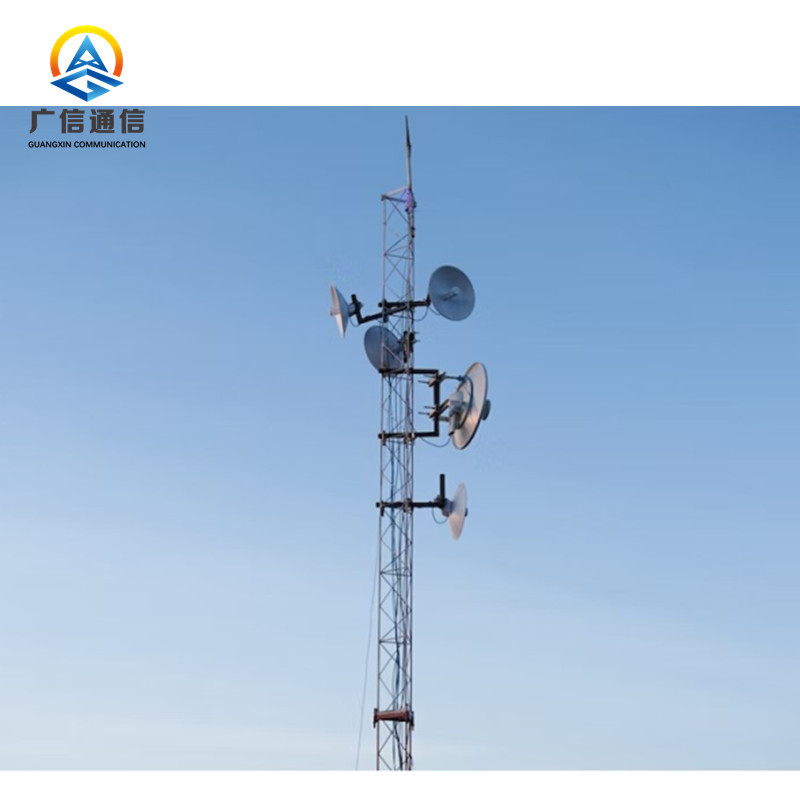

Galvanized Steel Tubular Guyed Telecommunication Tower





Feature of Guyed Telecommunication Tower:




Our company, Guangxin Communication Equipment Co, Ltd, is a full service engineering and manufacturing company with a global reputation for delivering excellence and innovation in tower supply. We have over 10 years of experience and innovation in engineering, designing, and building towers.

We design all kinds of towers and posts for:

Telecoms
Power transmission
TV and Radio Broadcast
Roads and City Development

Our complete selection of towers includes:

Self-supporting
Monopoles
Guyed towers
Custom-designed radar towers
Broadcast towers
Power transmission



Specification of Guyed Telecommunication Tower:



Material Tubular Steel, Angle steel plates, Flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.







The telecom tower technical specification as follow:


1 Tower height: (30m )
2 Wind speed: 150m/sec
3 Antenna load: 50kg (Max) - 3 units of Kathrein T2 Antenna
4 Antenna type and size: DVB-T2 Antenna
Our 30 Meter Guyed Tower Accessories Comprising of:
- Lightning Arrestor
- Tower Light
- Tower Foundation Materials, Anchor Rods,
9 Guyed Rope, 9 Strainer & Complete
Accessories:
- Tower painting (primer coat, middle coat and top coat)
Lightning Protection System comprising of:
- Copper Earth Wire, Copper Earth Rod and Copper Plate





Customer Support Services

  • We re specialized in the production, design, installation and maintenance of beautification tower, bionic tree communications tower, anemometer tower, communication tower, telecommunication tower, single tube tower, etc.



  • We undertake the design, manufacturing and construction of all kinds of steel structure.



  • Our company has rich experience more than 20 years and has 10 senior engineers and five professional production lines.



  • Fast delivery time 20 days,high efficient supply ability 1000 tons monthly, so we are sure to deliver your goods strictly as you required and meet your order quantity to the fullest.
