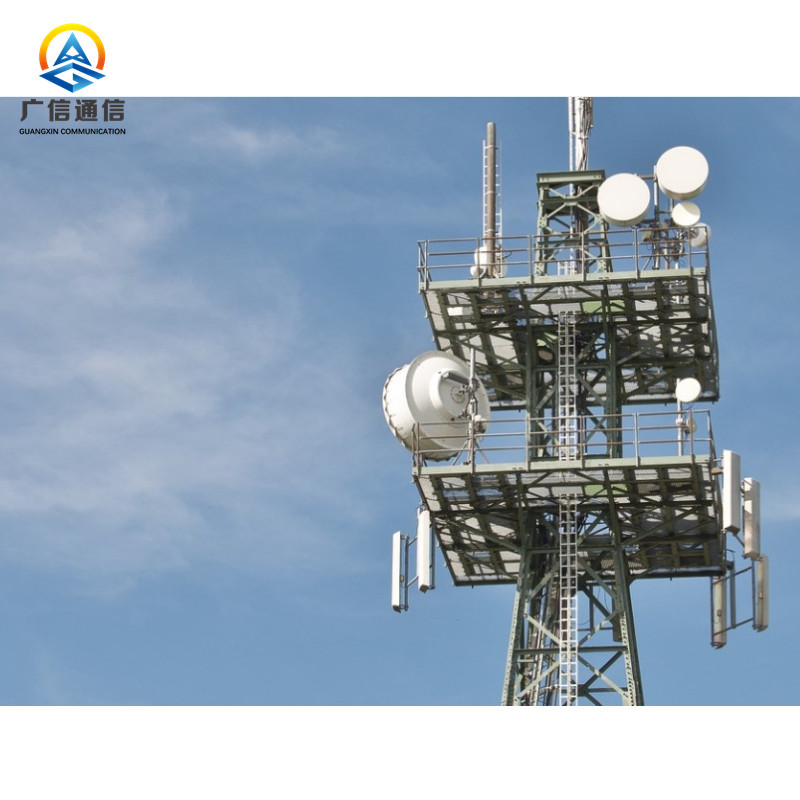

Signal Transmitting Antenna Radio Relay Galvanized Steel Towers

  • Signal Transmitting Antenna Radio Relay Galvanized Steel Towers
Place of Origin Guangzhou
Brand Name Guangxin
Certification ISO9001
Model Number GX-5626G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Signal Transmitting Antenna Radio Relay Galvanized Steel Towers Hot-dip Galvanization ISO 1461 2009, ASTM A123
Tower Type Tube Towers, Mono Pole Tower, Angle Towers Design Wind Pressure 0.3-1.2KN/M²
Design Wind Speed 30-50m/s, Can Customized As Buyer's Requirements Work Platform Height And Quantity Up To Clients
Connection Type Nuts & Bolts Design Of Pole Against Earthquake Of 8 Grade
Place Of Original Guangzhou Shipping Port Huangpu/Shekou/Yantian
High Light

Signal Transmitting Galvanized Steel Towers

,

Carbon Structural Steel Self Supporting Tower

,

ISO9001 Steel Self Supporting Tower
Leave a Message
Product Description

Signal Transmitting Antenna Radio Relay Galvanized Steel Towers





Specification:



Material Tubular Steel, Angle steel plates, flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.




Highlights of self-supporting tower



● Leading design concept.



● Versatility, modular design, flexible configuration of accessories.



● Tower group design, modification and adjustment.



● The tower section is universal, and the same tower section taken from the same mother tower is completely common in different tower types.



● Lower costs.



● Self-supporting tower light weight.



● Self-supporting tower installation cost is good.



● Self-supporting tower installation time is short.



● High reliability.

Signal Transmitting Antenna Radio Relay Galvanized Steel Towers 0

The tubular steel tower consists of up to four sections, joint by means of bolted flanges. The tower is built on the foundation using anchor bolts, which set into concrete at the foundation.



The tower can be climbed from the inside and is equipped with working platforms and a ladder with fall protection system. Optionally, a service lift or climbing assistance can be installed.



The bottom cabinet sections are arranged in the tower bottom. The cabinet sections are connected to the generator and the top cabinet in the nacelle via power and control cables.



At the tower top the cables are routed through a cable loop. It allows the nacelle to turn several times in each direction without damaging the cables. The power cables between WTG and grid are routed through conduits.



The tower is protected against corrosion with a special sandblasting procedure and by applying an epoxy resin coating to the tower surface.

The foundation is project-specific, depending on the ground conditions and the local rules and regulations.
