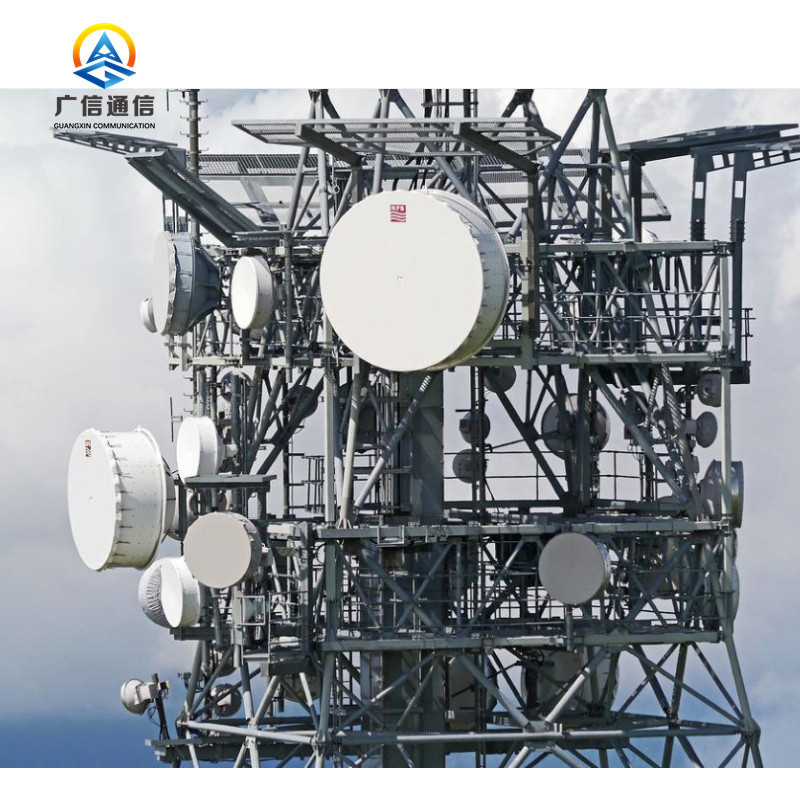

Telecommunication Broadcasting Tower Wireless Radio Antenna For Airport
| Place of Origin | Guangzhou |
|---|---|
| Brand Name | Guangxin |
| Certification | ISO9001 |
| Model Number | GX-5632G |
| Minimum Order Quantity | 1set |
| Price | USD1880-2100 |
| Packaging Details | Cotton sheets or cloth package by bundle |
| Delivery Time | 20-30days |
| Payment Terms | Western Union, L/C, T/T |
| Supply Ability | 300ton/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Wireless Radio Antenna Telecommunication Broadcast Tower | Tension Strength (Mpa) | 360~510 |
|---|---|---|---|
| Work Platform | Height And Quantity Up To Clients | Connection Type | Nuts & Bolts |
| Design Wind Pressure | 0.3-1.2KN/M² | Supply Type | Manufacturer |
| Surface Treatment | Hot Dip Galvanized Or Painting | Hot-dip Galvanization | ISO 1461 2009, ASTM A123 |
| Apply In | Highway, Freeway, Airport ,seaport,plaza,stadium ,square,highway,street Way Etc | OEM/ODM | Support |
| Place Of Original | Guangzhou | ||
| High Light | Telecommunication Broadcasting Tower,Wireless Radio Antenna Broadcasting Tower,Airport Telecommunication Broadcasting Tower |
||
Product Description
Wireless Radio Antenna Telecommunication Broadcast Tower
Specification:
| Material | Tubular Steel, Angle steel plates, flat steel plate |
| Steel Type | Weldable low carbon structural steel |
| Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
| Yield Strength | Fy≥235MPa |
| Tensile Strength | Fu≥400MPa |
| Elongation | σ≥20% |
| Surface Finish | Hot dip galvanization |
| Galvanized layer | T≥65μm |
| Height | 20m to 100m, customized to requests |
| Design | 4 legs self-supporting or free standing lattice tower |
| Structure | 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices. |
| Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
| Fixing/Fastening | Bolts and nuts, connecting plates |
| Configuration | Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc. |
| Wind Load | 0.35-1.0kN/sqm |
| Lifespan | 20-50 years |
| Warranty | 5 years |
| Applications | GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations. |
Features:
1. The seamless steel pipe is used as the column material, the wind load coefficient is small, and the wind resistance is strong.
2. The tower column is connected by an outer flange, and the bolt is pulled, which is not easy to damage and reduces maintenance costs.
3. The tower is arranged in a triangular shape to save steel.
4. The roots are small, the floor space is small, the land resources are saved, and the site selection is convenient.
5. The tower body is light in weight, and the new three-leaf cutting board foundation reduces the basic cost.
6. Truss structure design, convenient transportation and installation, and short construction period.
7. The tower type is designed with the wind load curve changing, and the lines are smooth. It is not easy to collapse in case of rare wind disasters, reducing human and livestock casualties.
8. The design conforms to the national steel structure design specification and tower design rules, and the structure is safe and reliable.
Highlights of Guangxin self-supporting tower
● Leading design concept.
● Versatility, modular design, flexible configuration of accessories.
● Tower group design, modification and adjustment.
● The tower section is universal, and the same tower section taken from the same mother tower is completely common in different tower types.
● Lower costs.
● Self-supporting tower light weight.
● Self-supporting tower installation cost is good.
● Self-supporting tower installation time is short.
● High reliability.
● The design and processing of Guangxin's self-supporting tower products are in line with ISO 9001:2000 quality management system.
● 50 years design life.
We are established on August 2009 with capital of 101,000,000 yuan. Guangzhou Guangxin Telecommunication Equipment Co.,Ltd. Is a large scale manufacturer of telecommunications and traffic facilities, including telecommunicationi monopoles and towers, street light poles and towers, power gride&electricity wire towers, lighting protection poles, artificial bionic tree for camouflaged telecommunication, CCTV camera poles and high masts, guideboards poles, billboards and led display gantry frames, ETC toll gate frames and other steelworks. Many projects we supplies have won parter reputation, awards and approvals from the users and customers. We are supplying the steelworks for 5G infrastructures, smart city and safe traffic
facilities, civil contruction and developing many other fields.
We have our own professionial engineer, designer and skilled workes. And our production line is equipped with CNC, laser
cutting machine, welding machine, shaping machine and test instrument etc. ODM service is welcomed.
