OEM Telecom Steel Tower City Wireless Connection Mobile Antenna Radiation Tower

  • OEM Telecom Steel Tower City Wireless Connection Mobile Antenna Radiation Tower
Place of Origin Guangzhou
Brand Name Guangxin
Certification ISO9001
Model Number GX-5631G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name City Wireless Connection Mobile Antenna Radiation Tower Tension Strength (Mpa) 360~510
Work Platform Height And Quantity Up To Clients Connection Type Nuts & Bolts
Design Wind Pressure 0.3-1.2KN/M² Place Of Original Guangzhou
Supply Type Manufacturer OEM/ODM Support
Surface Treatment Hot Dip Galvanized Or Painting Hot-dip Galvanization ISO 1461 2009, ASTM A123
High Light

Wireless Connection Telecom Steel Tower

,

Mobile Antenna Telecom Steel Tower

,

Mobile Antenna Radiation Tower
Leave a Message
Product Description

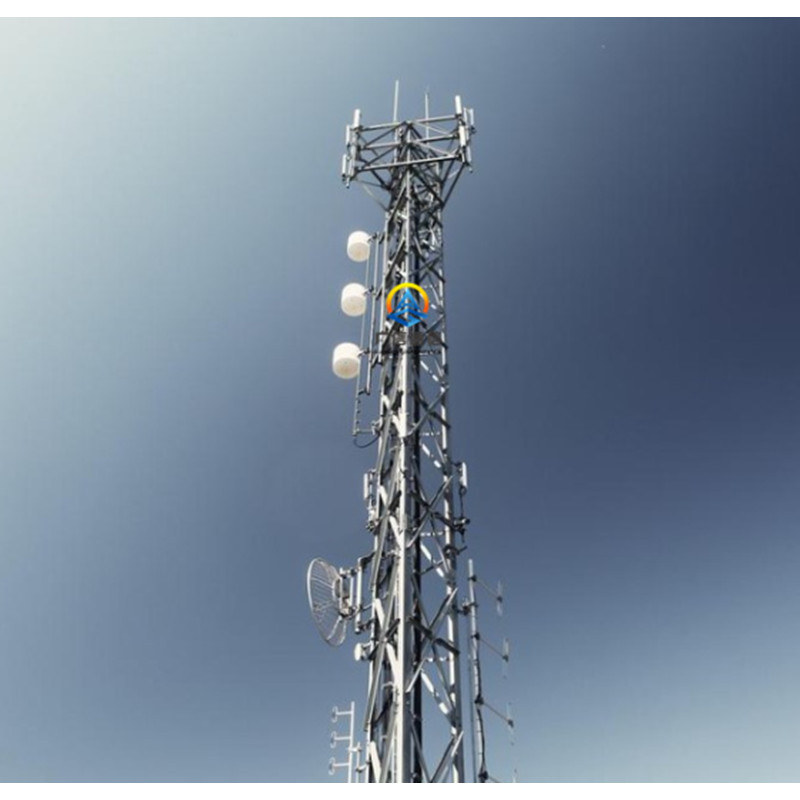

City Wireless Connection Mobile Antenna Radiation Tower







Specification:



Material Tubular Steel, Angle steel plates, flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.




OEM Telecom Steel Tower City Wireless Connection Mobile Antenna Radiation Tower 0

3 Legged Tubular Steel Tower



What Is 3 Legged Tubular Steel Tower?



3 Legged Tubular Steel Tower is a self-supporting high-rise steel structure made of steel pipe with a tower section and a triangular cross section. Main features: 3 Legged Tubular Steel Tower is made of steel pipe, and the tower body has a triangular cross section. A high-rise steel structure of angle steel. Applicable height: 40m, 45m, 50m. 3 Legged Tubular Steel Communication Tower includes tower base towers, crossbars, diagonal bars, antenna supports, lightning rods, and tower splicing devices.



Features:

1. The seamless steel pipe is used as the column material, the wind load coefficient is small, and the wind resistance is strong.

2. The tower column is connected by an outer flange, and the bolt is pulled, which is not easy to damage and reduces maintenance costs.

3. The tower is arranged in a triangular shape to save steel.

4. The roots are small, the floor space is small, the land resources are saved, and the site selection is convenient.

5. The tower body is light in weight, and the new three-leaf cutting board foundation reduces the basic cost.

6. Truss structure design, convenient transportation and installation, and short construction period.

7. The tower type is designed with the wind load curve changing, and the lines are smooth. It is not easy to collapse in case of rare wind disasters, reducing human and livestock casualties.

8. The design conforms to the national steel structure design specification and tower design rules, and the structure is safe and reliable.



Highlights of Guangxin self-supporting tower

● Leading design concept.

● Versatility, modular design, flexible configuration of accessories.

● Tower group design, modification and adjustment.

● The tower section is universal, and the same tower section taken from the same mother tower is completely common in different tower types.

● Lower costs.

● Self-supporting tower light weight.

● Self-supporting tower installation cost is good.

● Self-supporting tower installation time is short.

● High reliability.

● The design and processing of Guangxin's self-supporting tower products are in line with ISO 9001:2000 quality management system.

● 50 years design life.
