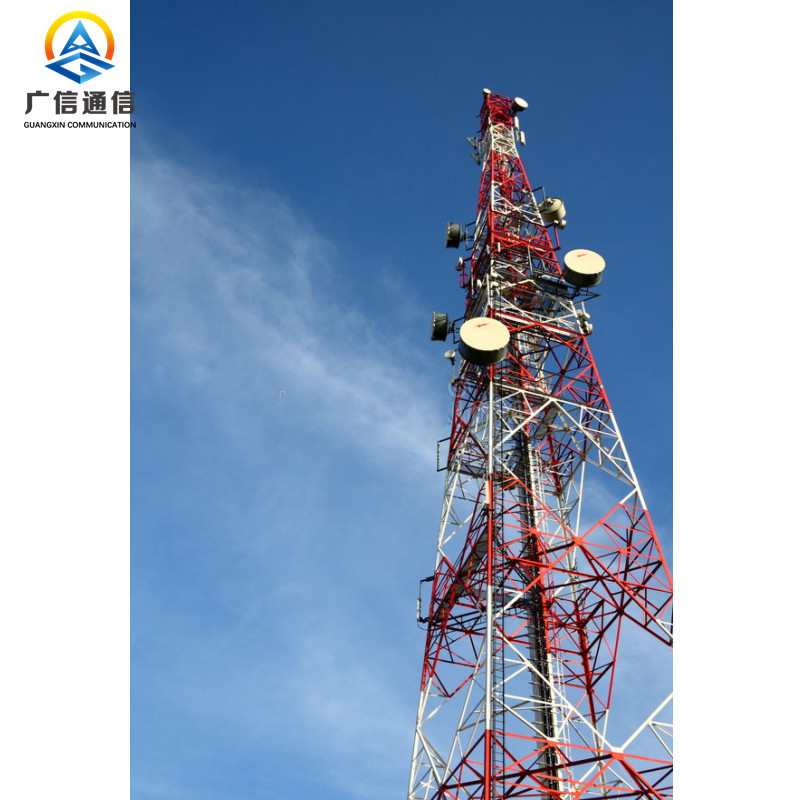

Hot Galvanized Steel Telecom Tower For Communication ASTM A123

  • Hot Galvanized Steel Telecom Tower For Communication ASTM A123
Place of Origin Guangzhou
Brand Name Guangxin
Certification ISO9001
Model Number GX-5629G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hot Galvanized Steel Telecom Communication Tower Tension Strength (Mpa) 360~510
Work Platform Height And Quantity Up To Clients Connection Type Nuts & Bolts
Design Wind Pressure 0.3-1.2KN/M² Place Of Original Guangzhou
Supply Type Manufacturer OEM/ODM Support
Surface Treatment Hot Dip Galvanized Or Painting Hot-dip Galvanization ISO 1461 2009, ASTM A123
High Light

Hot Galvanized Steel Telecom Tower

,

ASTM A123 Steel Telecom Tower
Leave a Message
Product Description

Hot Galvanized Steel Telecom Communication Tower







Specification:



Material Tubular Steel, Angle steel plates, flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.




Hot Galvanized Steel Telecom Tower For Communication ASTM A123 0

Self supporting tower

Self supporting tower usually is 3leg of 4leg tower, and its material is steel pipe or angle steel. As for the connection, tubular tower is connected by flange, and angle steel tower is connected by nuts and bolts.


Features:


1.Small coefficient of wind load, strong wind resistance.
2.Save land resource, convenient location.
Convenient transportation and installation.



We are established on August 2009 with capital of 101,000,000 yuan. Guangzhou Guangxin Telecommunication Equipment Co.,Ltd. Is a large scale manufacturer of telecommunications and traffic facilities, including telecommunicationi monopoles and towers, street light poles and towers, power gride&electricity wire towers, lighting protection poles, artificial bionic tree for camouflaged telecommunication, CCTV camera poles and high masts, guideboards poles, billboards and led display gantry frames, ETC toll gate frames and other steelworks. Many projects we supplies have won parter reputation, awards and approvals from the users and customers. We are supplying the steelworks for 5G infrastructures, smart city and safe traffic
facilities, civil contruction and developing many other fields.

We have our own professionial engineer, designer and skilled workes. And our production line is equipped with CNC, laser
cutting machine, welding machine, shaping machine and test instrument etc. ODM service is welcomed.
