Galvanized Steel Pipe Self Supporting Communication Tower Telecom Cable 30m
| Place of Origin | Guangzhou |
|---|---|
| Certification | ISO9001 |
| Model Number | GX-5620G |
| Minimum Order Quantity | 1set |
| Price | USD1880-2100 |
| Packaging Details | Cotton sheets or cloth package by bundle |
| Delivery Time | 20-30days |
| Payment Terms | Western Union, L/C, T/T |
| Supply Ability | 300ton/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand Name | Guangxin | Product Name | Galvanized Steel Pipe Self-supporting Communication Tower Telecom Cable 30m |
|---|---|---|---|
| Place Of Original | Guangzhou | Hot-dip Galvanization | ISO 1461 2009, ASTM A123 |
| Tension Strength (Mpa) | 360~510 | Design Wind Speed | 30-50m/s, Can Customized As Buyer's Requirements |
| Supply Mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) | Design Loading | As Per Requirement And Specification By Clients Worldwide. |
| Tower Type | Tube Towers, Mono Pole Tower, Angle Towers | Welding Method | CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) |
| Design Wind Pressure | 0.3-1.2KN/M² | Work Platform | Height And Quantity Up To Clients |
| High Light | Self Supporting Communication Tower 30m,Steel Pipe Self Supporting Communication Tower,ASTM A123 Self Supporting Communication Tower |
||
Product Description

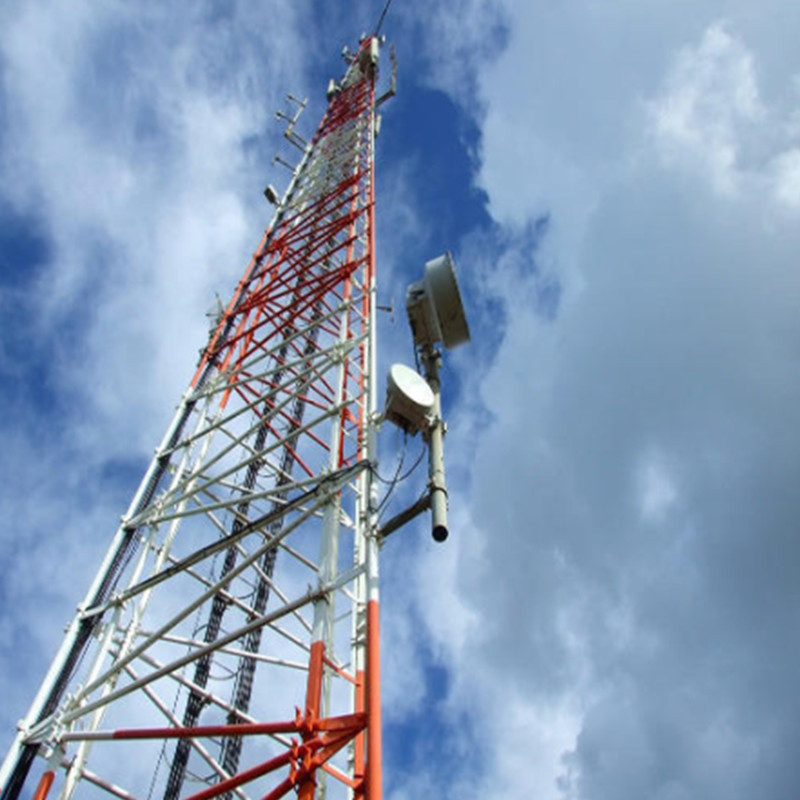

Galvanized Steel Pipe Self-supporting Communication Tower Telecom Cable 30m
Specification:
| Material | Tubular Steel, Angle steel plates, flat steel plate |
| Steel Type | Weldable low carbon structural steel |
| Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
| Yield Strength | Fy≥235MPa |
| Tensile Strength | Fu≥400MPa |
| Elongation | σ≥20% |
| Surface Finish | Hot dip galvanization |
| Galvanized layer | T≥65μm |
| Height | 20m to 100m, customized to requests |
| Design | 4 legs self-supporting or free standing lattice tower |
| Structure | 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices. |
| Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
| Fixing/Fastening | Bolts and nuts, connecting plates |
| Configuration | Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc. |
| Wind Load | 0.35-1.0kN/sqm |
| Lifespan | 20-50 years |
| Warranty | 5 years |
| Applications | GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations. |
Features:
1. Material: Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm² Q235B/A36, Minimum Yield Strength ≥ 235 N/mm²
As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400, or any other standard by client required.
2. Tower Type: Steel Tube, Angle Steel, Lattice Mast, Self-supporting
3. Tower Style: Mono Pole Tower, Three Legs Tower, Four Legs Tower
4. Height: Below 100 meter, customized.
5. Wind Pressure: 0.35-1 KN/m2
6. Connection: Flanges, Inserting, Connecting Plate & Bolt
7. Surface Treatment: Hot Dipped Galvanized
8. Zinc Coating: 65μ-85μ
9. Supply Capacity: 1500 MT/Month
10. Color: Galvanized, or customized
11. Usage: GSM, RRU, CDMA, Micro Wave, Radio etc.
12. Certification: ISO9001:2008, ISO14001:2004, OHSAS18001: 2007, SGS, MA
Guangzhou Guangxin Telecommunication Equipment Co.,Ltd. Is a large scale manufacturer of telecommunications and traffic facilities, including telecommunicationi monopoles and towers, street light poles and towers, power gride&electricity wire towers, lighting protection poles, artificial bionic tree for camouflaged telecommunication, CCTV camera poles and high masts, guideboards poles, billboards and led display gantry frames, ETC toll gate frames and other steelworks. Many projects we supplies have won parter reputation, awards and approvals from the users and customers. We are supplying the steelworks for 5G infrastructures, smart city and safe traffic facilities, civil contruction and developing many other fields.
