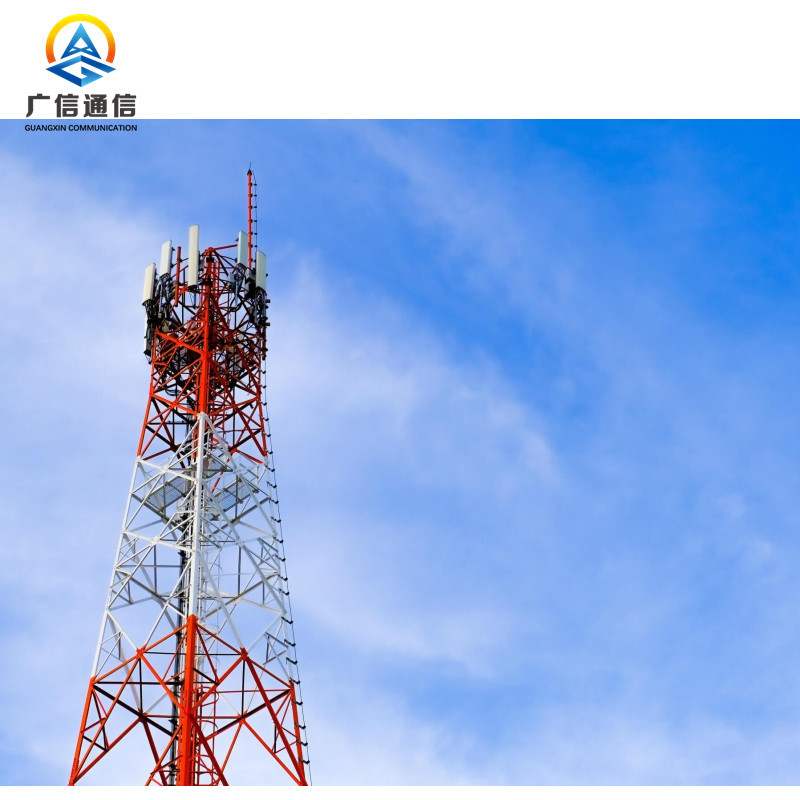

Q235 Q345 Antenna Angle Steel Tower For Communication

  • Q235 Q345 Antenna Angle Steel Tower For Communication
Place of Origin Guangzhou
Brand Name Guangxin
Certification ISO9001
Model Number GX-5611G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Angle Steel Plates, Flat Steel Plate, Bolts And Nuts Product Name Q235/Q345 Antenna Angle Steel Tower Types Of Communication Towers
Surface Treatment Hot-dip Galvanized Height 20-110M
Design Wind Speed Up To 250 Km/h Design Loading As Per Requirement And Specification By Clients Worldwide.
Tower Type Tube Towers, Mono Pole Tower, Angle Towers Application Highway, Freeway, Airport ,seaport,plaza,stadium ,square,highway,street Way Etc
Supply Mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
High Light

Q345 Antenna Angle Steel Tower

,

Q235 Antenna Angle Steel Tower

,

110M Antenna Angle Steel Tower
Leave a Message
Product Description

Q235/Q345 Antenna Angle Steel Tower Types of Communication Towers





Specification:



Material Tubular Steel, Angle steel plates, flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.






Self-supporting steel tower (SST) is the most popular tower for communication or power transmission and distribution applications. It's generally designed for 3 legs or 4 legs, composed of galvanized tubular steel pipes and angular steel plates by welding and fastening with bolts and nuts. With height of 25m to 110m, the steel lattice towers are widely used for mounting telecommunication macrocell stations and power transmission or distribution wires or cables.

4-legged self-support steel lattice tower is generally made of equal angular steel plates and flat steel plates. The 4-legged lattice tower is generally divided into several sections and the sections are connected by flat connecting plates with bolts and nuts. Each tower section is made of angle steel plates and flat plates. All the steel plates are prefabricated with cutout, holes and hot dip galvanization.
