3 Legged Galvanized Steel Tube Telecommunication Tower Communication Lattice

  • 3 Legged Galvanized Steel Tube Telecommunication Tower Communication Lattice
Place of Origin Guangzhou
Brand Name Guangxin
Model Number GX-5608G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ISO9001:2008 SGS COC Product Name Communication Lattice 3 Legged Galvanized Steel Tube Telecommunication Tower
Surface Treatment Hot-dip Galvanized Height 20-100M
Material Q235b Or Q345b Design Wind Speed Up To 280 Km/h
Tower Type Tube Towers, Mono Pole Tower, Angle Towers Design Loading As Per Requirement And Specification By Clients Worldwide.
Design Of Pole Against Earthquake Of 8 Grade Application Highway, Freeway, Airport ,seaport,plaza,stadium ,square,highway,street Way Etc
High Light

Galvanized Steel Tube Telecommunication Tower

,

3 Legged Telecommunication Tower

,

100M Height Telecommunication Tower
Leave a Message
Product Description

Communication Lattice 3 Legged Galvanized Steel Tube Telecommunication Tower







Specification:



Material Tubular Steel, Angle steel plates, flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.




Manufactory supplied self supporting 3 legged telecom steel tube tower are made of steel tube, designed on a tubular base pattern.The communication tower is optimized for medium to heavy loads which is used for standard cellular sites. 3 Legs Tubular High Quality 60m Telecommunication Steel Tower can be equipped with a variety of accessories, such as work or rest platforms, antenna mounts, safety devices,obstruction lights, lightning protection kit and more. All of the accessories can be installed at any desired height and orientation according to customer Specification.



Features:



1. Small coefficient of wind load, strong wind resistance.

2. Save land resource, convenient location.

3. Convenient transportation and installation.





Tower Accessories
 Anti-Climbing Device
 Danger Plate
 Tower Phase Plate
 Tower Circuit Plate
 Tower Number Plate

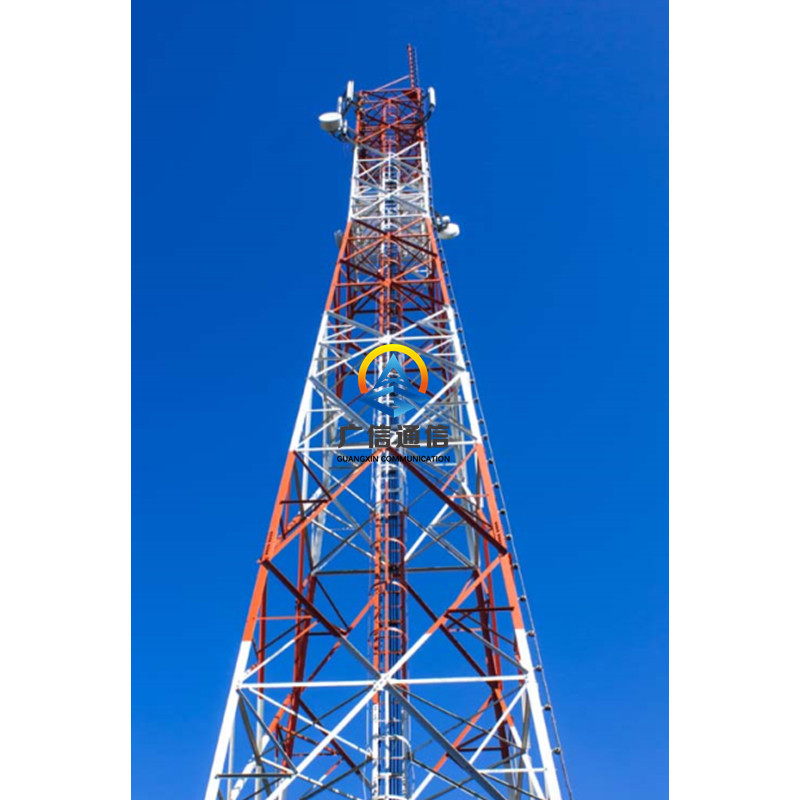

3 Legged Galvanized Steel Tube Telecommunication Tower Communication Lattice 0
