Galvanized Steel Lattice Tower Anti Corrosion Treatment 20-100M

  • Galvanized Steel Lattice Tower Anti Corrosion Treatment 20-100M
Place of Origin Guangzhou
Brand Name Guangxin
Model Number GX-5603G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ISO9001:2008 SGS COC Product Name ODM Lattice Tower Design Galvanized Steel Anti-Corrosion Treatment
Surface Treatment Hot-dip Galvanization Material Q235b Or Q345b
Design Wind Speed Up To 250 Km/h Tension Strength (Mpa) 360~510
Height 20-100M Bolts DIN7990, DIN931, DIN933
Nuts ISO4032, ISO4034 Design Loading As Per Requirement And Specification By Clients Worldwide.

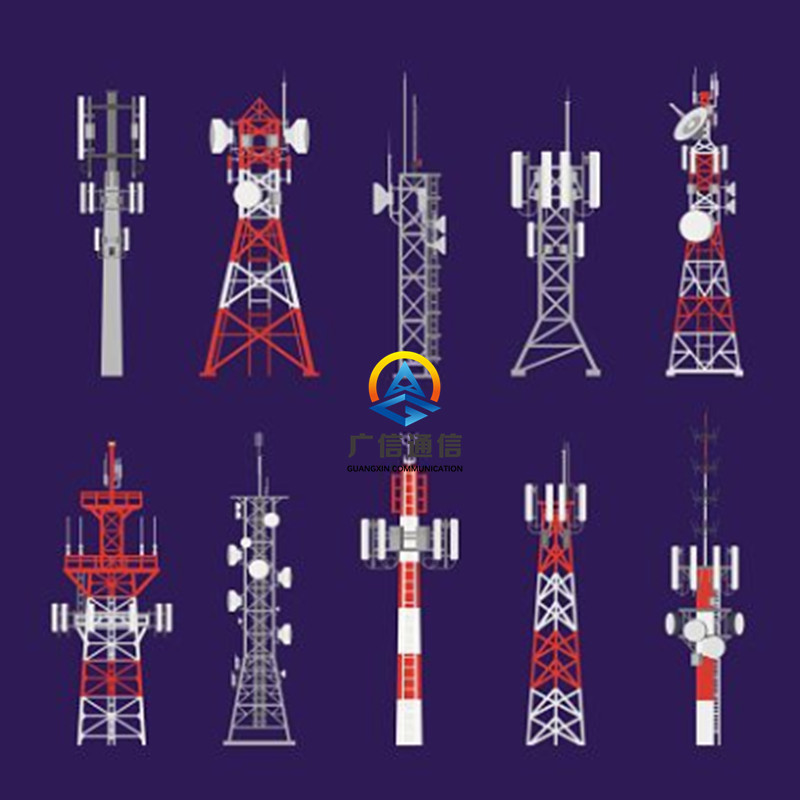

Tower Type Angular Towers, Tubular Towers, Guyed Mast, Monopole Tower Application Highway, Freeway, Airport ,seaport,plaza,stadium ,square,highway,street Way Etc
Design Of Pole Against Earthquake Of 8 Grade
High Light

ODM Galvanized Steel Lattice Tower

,

Anti Corrosion Lattice Tower Telecom

,

ISO9001 Lattice Telecom Tower
Leave a Message
Product Description

ODM Lattice Tower Design Galvanized Steel Anti-Corrosion Treatment



Lattice tower is built and designed which connected from single profile frame steel (angle) become a stiff and strong frame shape. This frame tower is able to hold wind pressure, cable strengthening, geographic condition at the area of tower built. 3 leg cellular transmitter three legged telecommunication self supporting angular steel lattice tower. Communication tower consists of tower body, platform, lightning rod, ladder, antenna support and other steel components, and by hot galvanized anti-corrosion treatment, mainly for microwave, ultrashort wave, wireless network signal transmission and transmission.



One tower of each type and height, including every combination of leg extensions, shall be assembled in shop and shall be offered to AEML for
inspection to ensure proper field erection. Reaming of holes not properly matching will not be permitted. A moderate amount of drifting will be allowed.


Tower Accessories
 Anti-Climbing Device
 Danger Plate
 Tower Phase Plate
 Tower Circuit Plate
 Tower Number Plate



Specification:



Material Tubular Steel, Angle steel plates, flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.






Galvanized Steel Lattice Tower Anti Corrosion Treatment 20-100M 0

Guangxin brand, make for the world. Welcome to visit us and work together with us to make a better future.
