Multifunctional Antenna Microwave Transmission Steel Tower 20-100M

  • Multifunctional Antenna Microwave Transmission Steel Tower 20-100M
Place of Origin Guangzhou
Brand Name Guangxin
Model Number GX-5602G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ISO9001:2008 SGS COC Product Name Multifunctional Antenna Microwave Transmission Steel Tower
Tower Type Angular Towers, Tubular Towers, Guyed Mast, Monopole Tower Surface Treatment Hot-dip Galvanization
Material Q235b Or Q345b Design Wind Speed Up To 250 Km/h
Tension Strength (Mpa) 360~510 Height 20-100M
Bolts DIN7990, DIN931, DIN933 Nuts ISO4032, ISO4034
Design Loading As Per Requirement And Specification By Clients Worldwide. Application Highway, Freeway, Airport ,seaport,plaza,stadium ,square,highway,street Way Etc
High Light

BS 4360 Transmission Steel Tower

,

20m Antenna Transmission Steel Tower
Leave a Message
Product Description

Multifunctional Antenna Microwave Transmission Steel Tower





Specification:



Material Tubular Steel, Angle steel plates, flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.

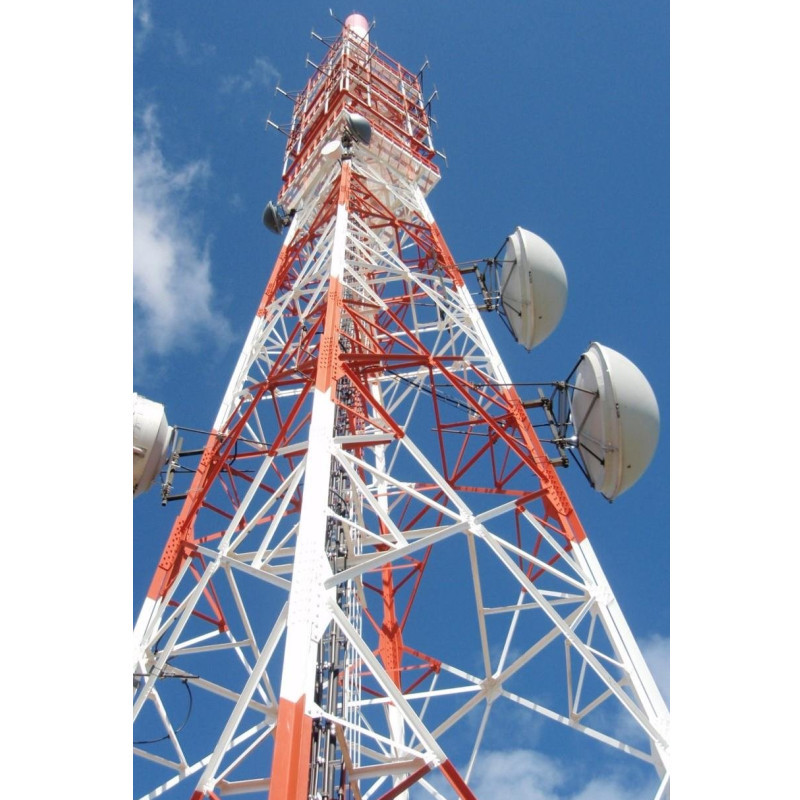

Multifunctional Antenna Microwave Transmission Steel Tower 20-100M 0



Lattice tower is built and designed which connected from single profile frame steel (angle) become a stiff and strong frame shape. This frame tower is able to hold wind pressure, cable strengthening, geographic condition at the area of tower built. 3 leg cellular transmitter three legged telecommunication self supporting angular steel lattice tower. Communication tower consists of tower body, platform, lightning rod, ladder, antenna support and other steel components, and by hot galvanized anti-corrosion treatment, mainly for microwave, ultrashort wave, wireless network signal transmission and transmission.



One tower of each type and height, including every combination of leg extensions, shall be assembled in shop and shall be offered to AEML for
inspection to ensure proper field erection. Reaming of holes not properly matching will not be permitted. A moderate amount of drifting will be allowed.


Tower Accessories
 Anti-Climbing Device
 Danger Plate
 Tower Phase Plate
 Tower Circuit Plate
 Tower Number Plate


We have our own professionial engineer, designer and skilled workes. And our production line is equipped with CNC, laser
cutting machine, welding machine, shaping machine and test instrument etc. ODM service is welcomed.

Guangxin brand, make for the world. Welcome to visit us and work together with us to make a better future.
