Four Legged Radio Telecom Angular Lattice Steel Tower Hot Dip Galvanization

  • Four Legged Radio Telecom Angular Lattice Steel Tower Hot Dip Galvanization
Place of Origin Guangzhou
Brand Name Guangxin
Model Number GX-5508G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ISO9001:2008 SGS COC Product Name Four Legged Radio Telecom Angular Lattice Steel Tower
Surface Treatment Hot-dip Galvanization Tower Type Angular Towers, Tubular Towers, Guyed Mast, Monopole Tower
Height 20-100M Design Wind Speed Up To 250 Km/h
Material Q235b Or Q345b Tension Strength (Mpa) 360~510
Design Loading As Per Requirement And Specification By Clients Worldwide. Load Test/destructive Test We Can Arrange It By Government Authority If It Is Necessary And The Cost Of Such Kind Of Test Is Separately From The Tower Pricing.
Welding Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
High Light

Q235b Angular Lattice Steel Tower

,

Lattice Steel Tower Four Legged

,

Hot Dip Galvanization Angular Lattice Tower
Leave a Message
Product Description

Four Legged Radio Telecom Angular Lattice Steel Tower



The technical parameters meet the following standard:
Design wind speed: 30M/S (varies by regions)
Icing depth: 5mm-7mm: (varies by regions)
Aseismatic intensity: 8°
Preference temperature: -35ºC~45ºC
Vertical missing: <1/1000
Ground resistance: ≤4Ω

Preservative treatment: the steel member of the tower is treated with hot dip galvanized anti-corrosion technology, which ensures the tower doesn't get rusted within 50 years.
Main functions of the communication tower: to support signal transmitting antenna.
Material origin: Baosteel/Shougang Group/Handan Steel/Tangshan Iron & Steel, etc.



Specification:



Material Tubular Steel, Angle steel plates, flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.

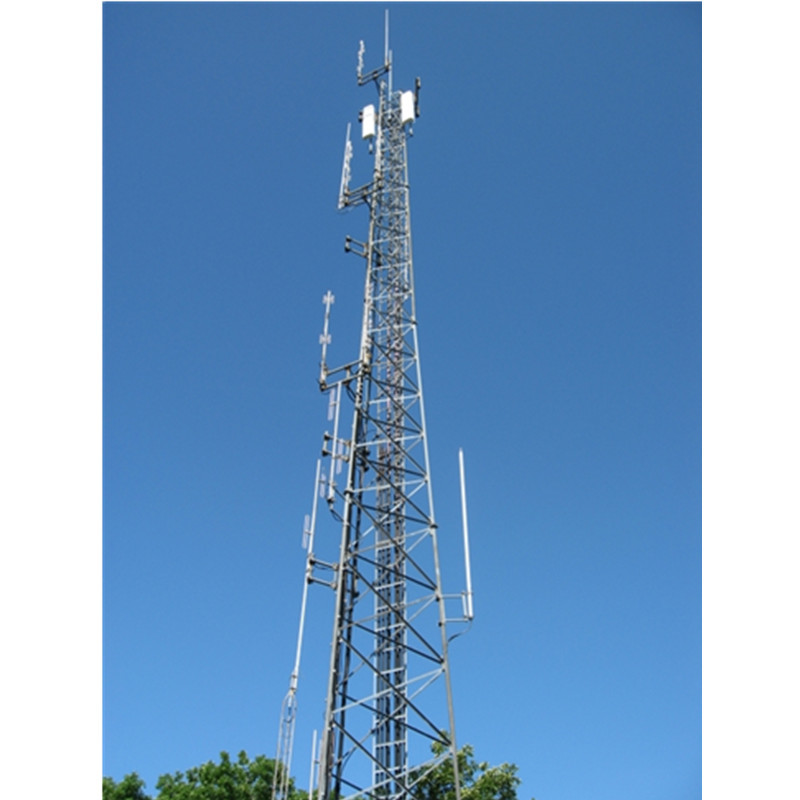

Four Legged Radio Telecom Angular Lattice Steel Tower Hot Dip Galvanization 0





We are established on August 2009 with capital of 101,000,000 yuan. Guangzhou Guangxin Telecommunication Equipment Co.,Ltd. Is a large scale manufacturer of telecommunications and traffic facilities, including telecommunicationi monopoles and towers, street light poles and towers, power gride&electricity wire towers, lighting protection poles, artificial bionic tree for camouflaged telecommunication, CCTV camera poles and high masts, guideboards poles, billboards and led display gantry frames, ETC toll gate frames and other steelworks. Many projects we supplies have won parter reputation, awards and approvals from the users and customers. We are supplying the steelworks for 5G infrastructures, smart city and safe traffic
facilities, civil contruction and developing many other fields.

We have our own professionial engineer, designer and skilled workes. And our production line is equipped with CNC, laser
cutting machine, welding machine, shaping machine and test instrument etc. ODM service is welcomed.

Guangxin brand, make for the world. Welcome to visit us and work together with us to make a better future.
