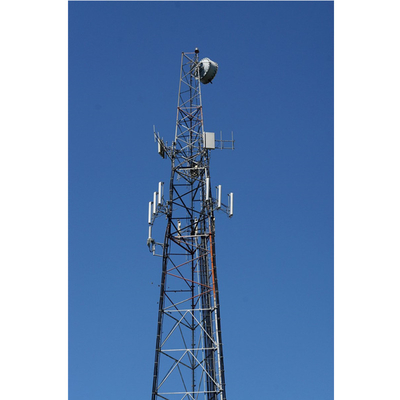

20-100m Hot Dip Galvanization Steel Tower With Bolts Flange

  • 20-100m Hot Dip Galvanization Steel Tower With Bolts Flange
Place of Origin Guangzhou
Brand Name Guangxin
Model Number GX-5505G
Minimum Order Quantity 1set
Price USD1880-2100
Packaging Details Cotton sheets or cloth package by bundle
Delivery Time 20-30days
Payment Terms Western Union, L/C, T/T
Supply Ability 300ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ISO9001:2008 SGS COC Product Name Steel Lattice Tower With Bolts Flange
Surface Treatment Hot-dip Galvanization Height 20-100M
Material Q235b Or Q345b Tension Strength (Mpa) 360~510
Design Loading As Per Requirement And Specification By Clients Worldwide. Welding Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
High Light

Lattice Tower with Bolts Flange

,

Telecom Tower Hot Dip Galvanization

,

ISO9001 Certification Telecom Steel Tower
Leave a Message
Product Description

Steel Lattice Tower with Bolts and Nuts





Specification:



Material Tubular Steel, Angle steel plates, flat steel plate
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 5 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.

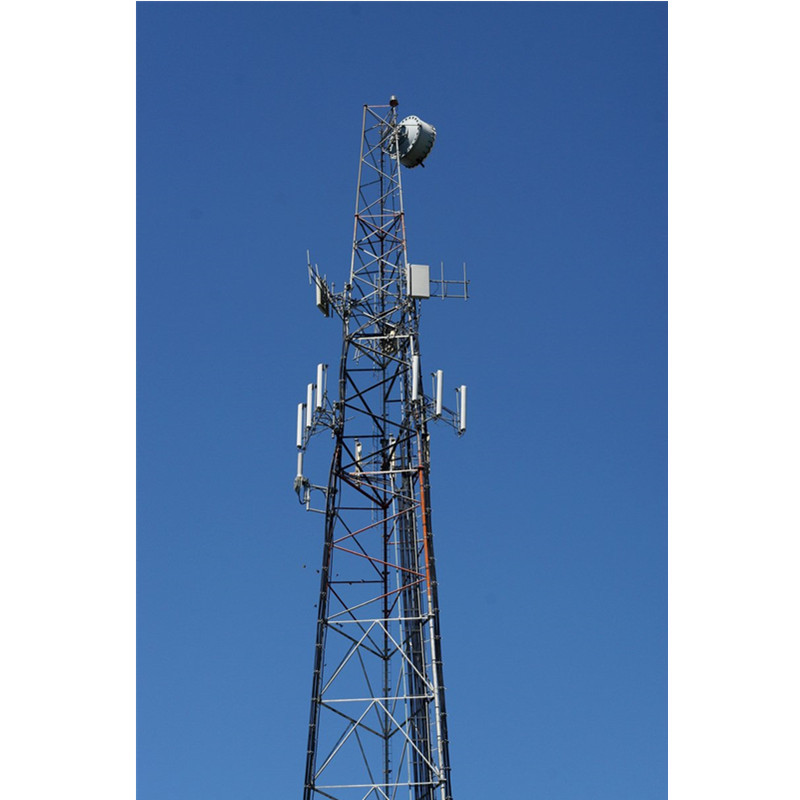

20-100m Hot Dip Galvanization Steel Tower With Bolts Flange 0



45m 4 legged tubular steel lattice tower powder coating white red, Lattice tower is built and designed which connected from single profile frame steel (angle) become a stiff and strong frame shape. This frame tower is able to hold wind pressure, cable strengthening, geographic condition at the area of tower built. Communication tower consists of tower body, platform, lightning rod, ladder, antenna support and other steel components, and by hot galvanized anti-corrosion treatment, mainly for microwave, ultrashort wave, wireless network signal transmission and transmission.
